5 Operation
Working with attachments
changed if necessary. Please contact the
authorised service centre if necessary.

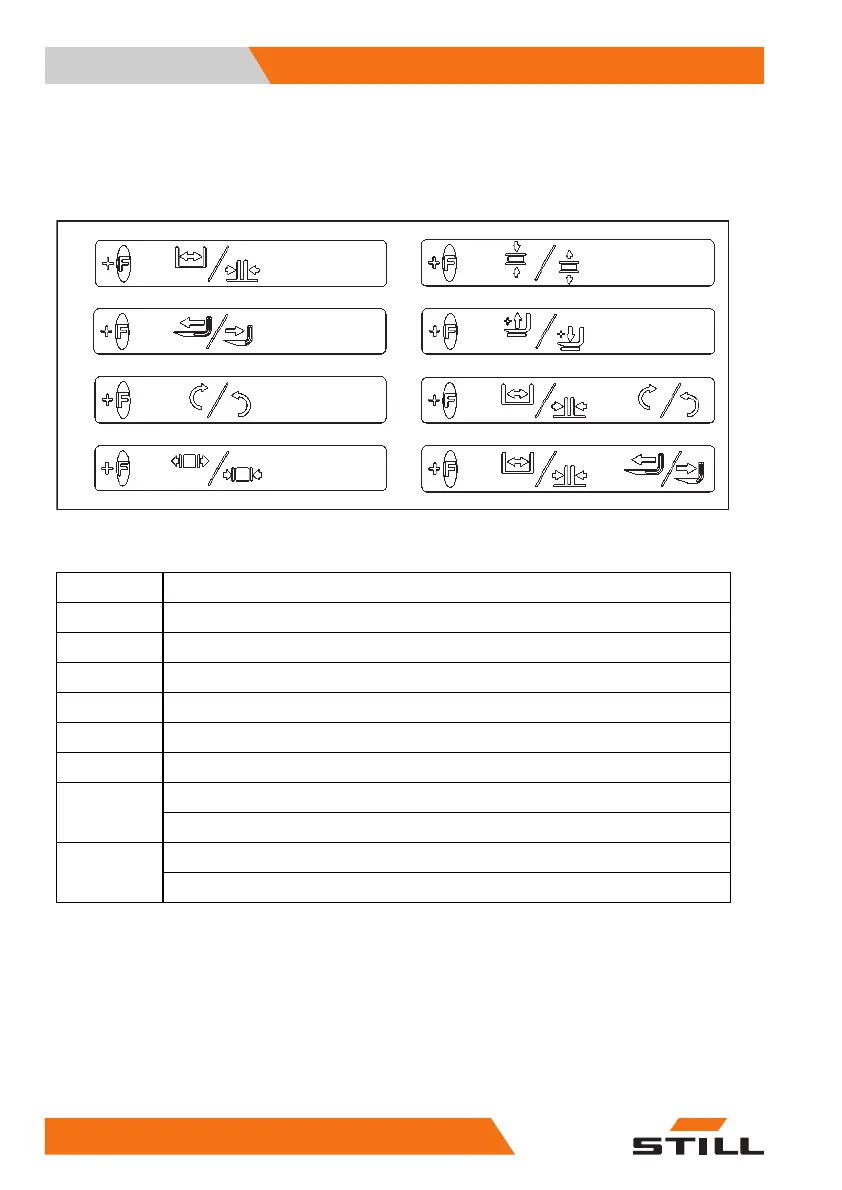

Overview of the pictograms
1
2
3
4
5
6
7
8
– Note the followin
g attachment functions and
pictograms!
No. Function of the attachment
1
Fork prong posit
ioner: close/open
2
Fork positioner: forwards/backwards
3
Rotator: left/right
4
Clamp: close/open
5
Load retainer: close/open
6
Additional fork carriage: lift/lower
Fork prong p
ositioner: close/open
7
Rotator: left/right
Fork prong
positioner: close/open
8
Turn to the left/right
.
14
2 50988078001 [EN]
