5 Operation
Operation in special operating situations
7071_003-065
1

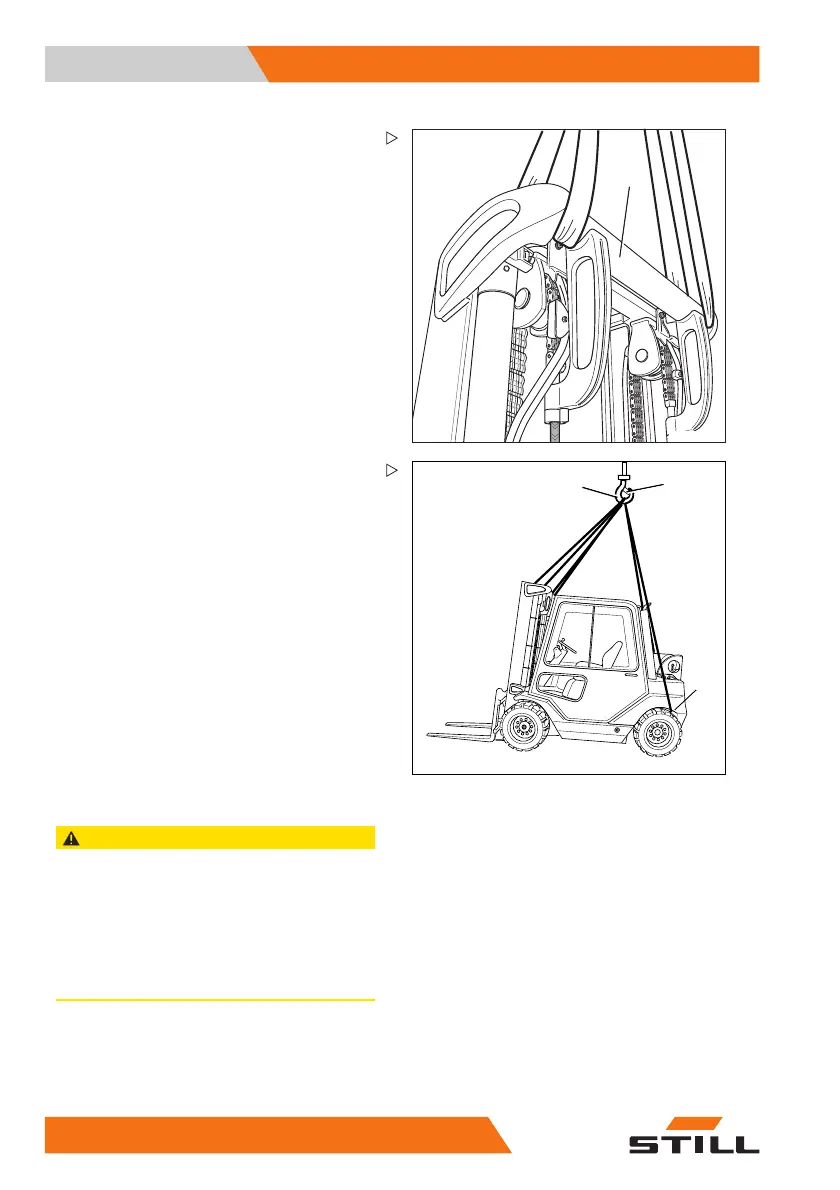

– Loop the lifting straps to the right and the left
around the main traverse (1) on the outer
mast of the lift mast.
7081_003-026
3
4
2
– Loop the lifting straps (2) around the coun-
terweight between the counterweight and
the steering axle.
– Determine the centre of gravity for your
truck.
The centre of gravity is indicated by the "S"
symbol in the operating instructions in the
"Technical Data" section; see ⇒ Chapter "Di-
mensions", P. 7-248.
– Set the length of the harnesses so that the
crane eye (3) is vertically above the centre
of gravity of the forklift truck.
This ensures that the forklift truck hangs level
when lifting it.
– Hang the lifting straps from the crane eye
and engage the locking device (4).
CAUTION
Failure to follow these instructions could result in
damaged components!
– The harnesses must be attached so that the
pulling forces do not affect attachments or parts
of the overhead guard or the cab. If attachment
parts are in the way (e.g. lighting, rear window,
trademark emblem etc.), these must be removed
before loading.
158 171673 [EN]
