INFORMATION AVAILABLE DURING A BUILD
During a build, information pertaining to that build is displayed within two areas of the Build page:
The Print Job Information Panel displays the details of a job, as submitted to the printer from the workstation
PC. This information is static and is for reference purposes only. See “Viewing Print Job Information” on page 45
for detailed information.

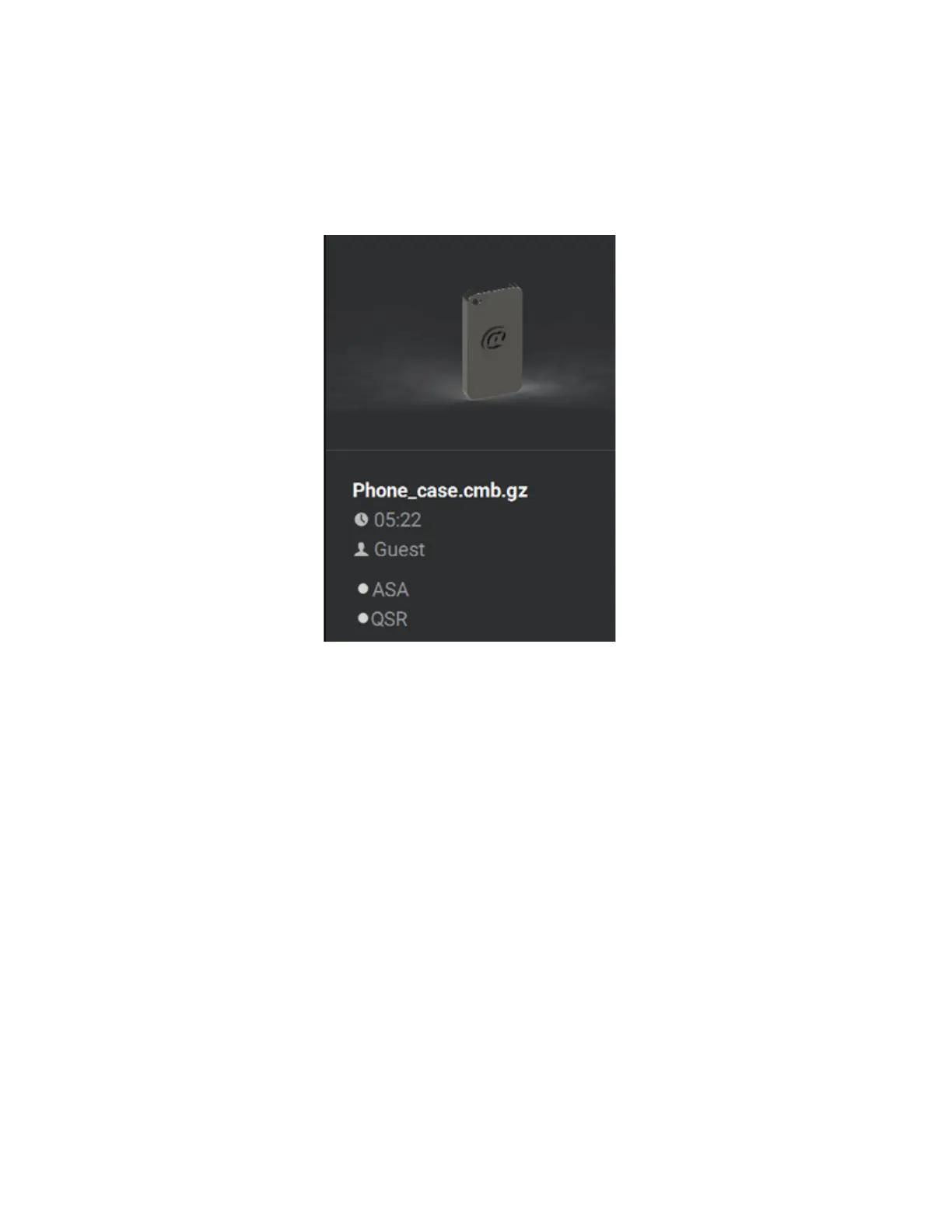

Figure 5-13: Print Job Information Panel - Building
Information displayed within this panel for a selected job includes:
• Name of the job.
• Estimated build time for the job.
• Name of the user that submitted the job.
• Model and support materials associated with the job.
The Build Status Display section of the Build page is composed of a two-part graphic which provides information
on a building job. See “Build Status Display” on page 46 for detailed information.
• The Build Status Information portion of this graphic provides information on a selected and/or
building job. Text pertaining to the current status of the build is displayed within the upper portion of
the graphic, while the amount of build time remaining is displayed within the lower portion of the
graphic.
• The outer Build Progress Ring corresponds with the build information displayed. As build progress is
made, the build’s percentage of completion is also displayed by radially filling in the outer progress
ring, in blue, in a clockwise direction.
• Touching the screen within the center of the Build Status Display while a part is being built will toggle
the information displayed. After touching the screen the time estimation information will be hidden
from view and instead the Build Status Display will show the number of completed layers as
compared to the total number of layers in the build. Touching the screen again, will toggle back to the
time estimation information displayed initially.
