Y BLOCKS
Required Tools
• 3 mm hex wrench
Removal Procedure
1. Unload material.
2. Power OFF the printer, see “Powering Off” on page 169.
3. Disconnect material tubes at Y block by loosening the compression fittings and pulling the tubes
outward. See Figure 7-42.

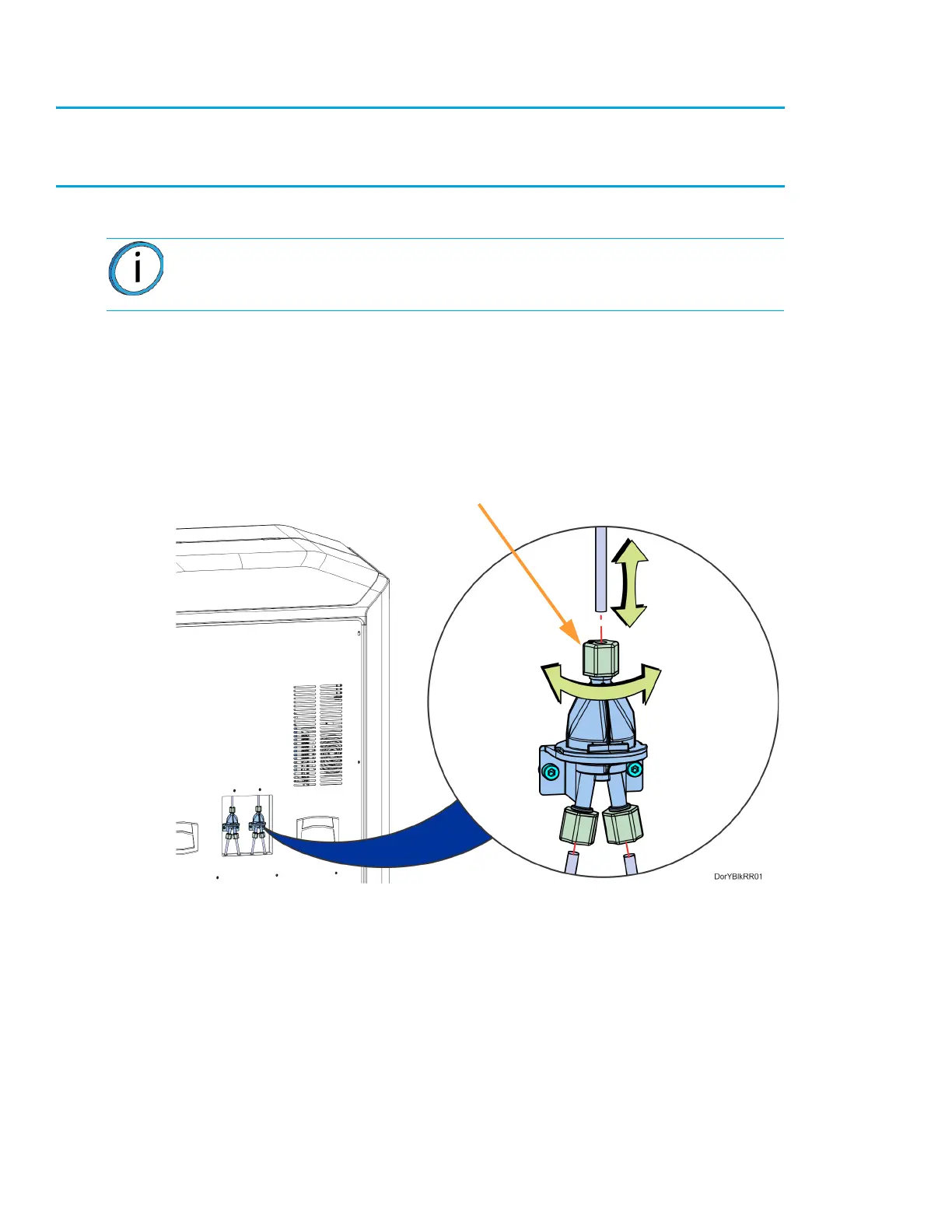

Figure 7-42: Disconnecting Material Tubes from Y Block
Note: Y block removal is the same for both Y blocks. Removal of the model
material Y block is depicted in this procedure.
Loosen compression
fitting to pull material
tubes outward
