OVEN DOOR CAMERA
Required Tools
• 3 mm hex wrench
Removing the Oven Door Camera
1. Power OFF the printer. See “Powering Off” on page 169.
2. Open the oven door.
3. Using a 3mm hex wrench, remove the camera assembly mounting screw (1) through the hole in
the top of the oven door. See Figure 7-36.
4. Gently move the camera assembly out a small distance and disconnect the cable on the back of
the camera.
5. Remove the camera assembly from printer. See Figure 7-36.

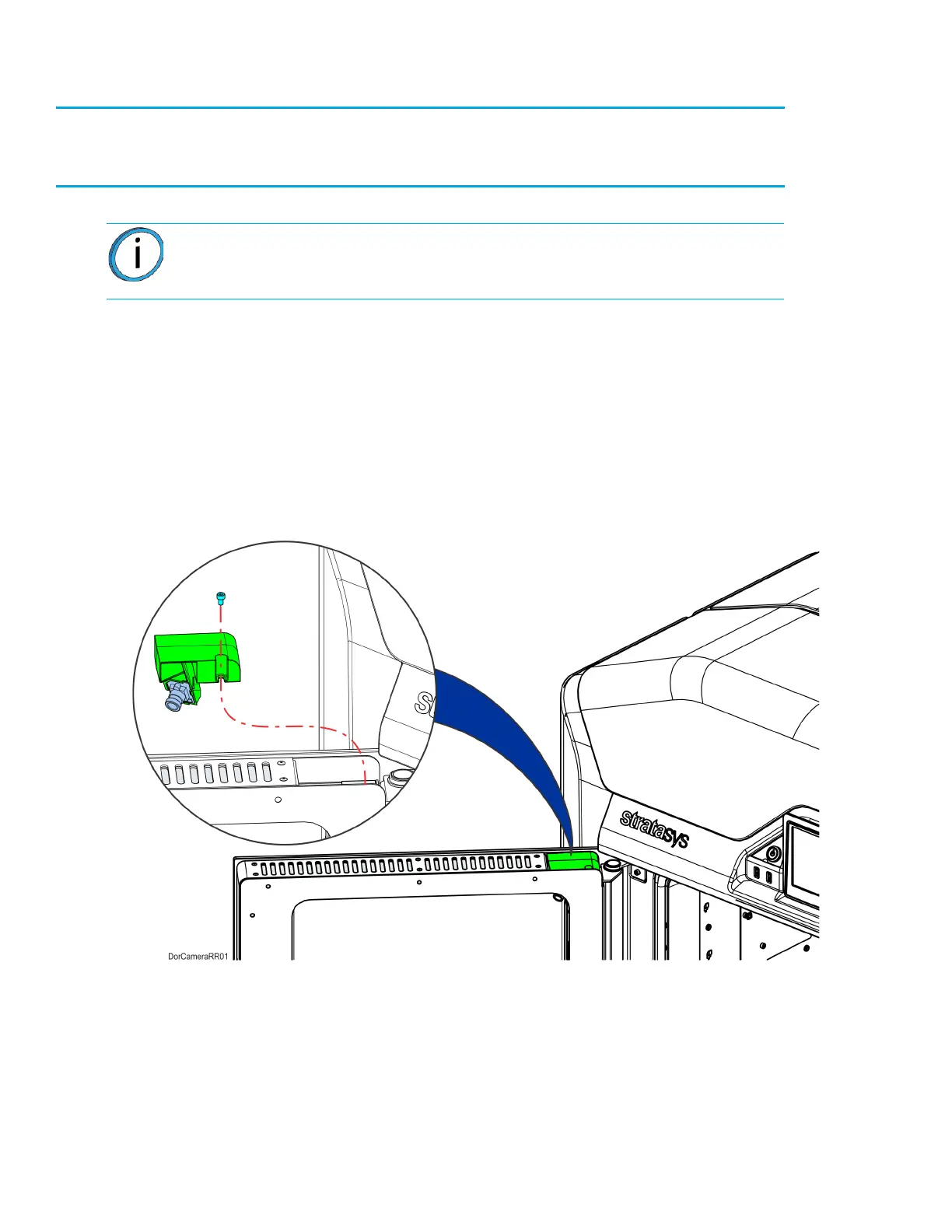

Figure 7-36: Camera Assembly Mounting Screw Location
Note: Do not touch the camera lens. If necessary, wipe the camera lens with a
clean microfiber cloth.
