OVEN COMPONENTS
The oven consists of the oven door and everything that you see through the oven door window, including the
platen, tip wipe assemblies, purge chute, and oven heaters. The printer’s camera is housed within the frame of
the oven door.

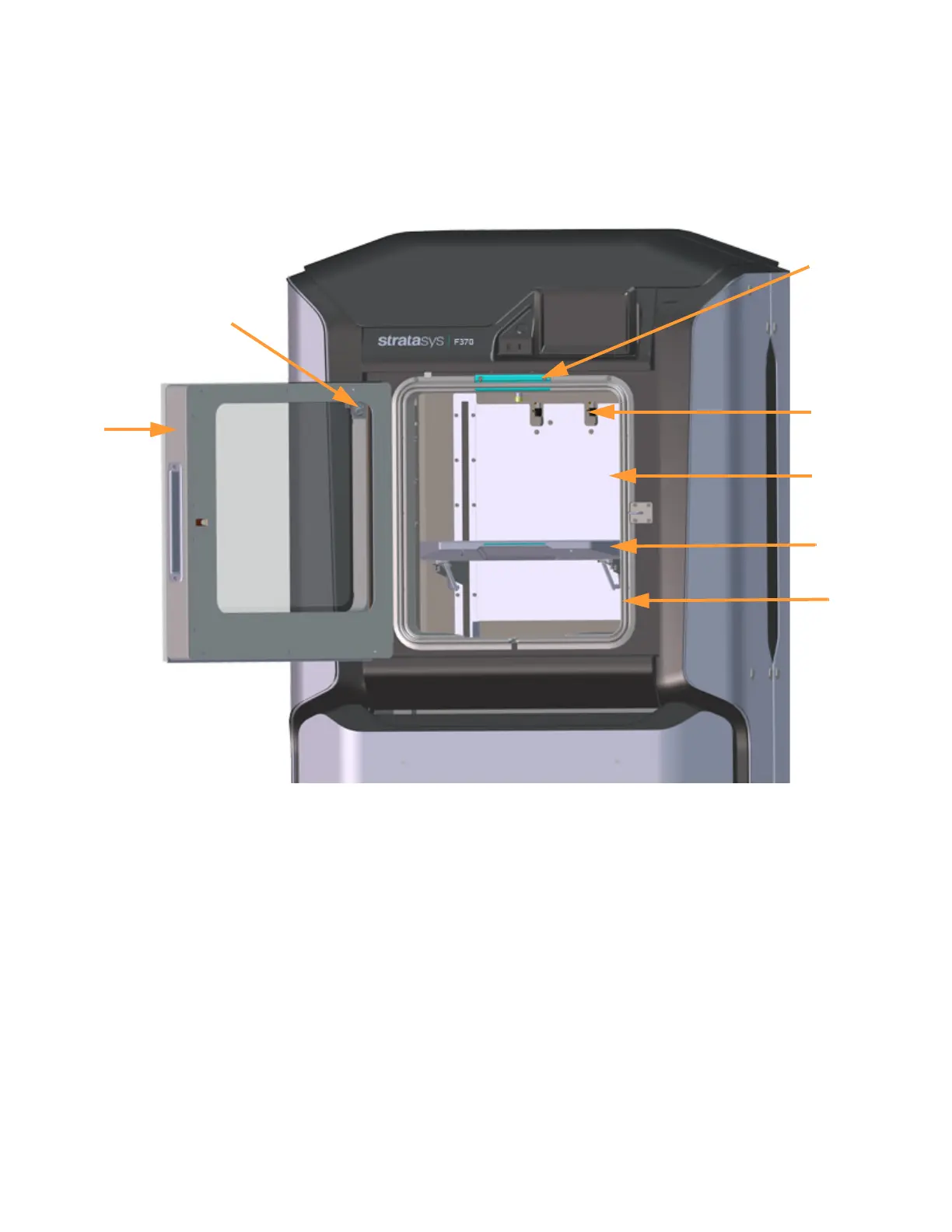

Figure 3-4: Oven Components
OVEN DOOR
The oven door (see Figure 3-4) utilizes an electromagnetic lock along with optical sensors. The oven door
remains locked while the printer is building and automatically unlocks when it is safe for you to access the
components of the oven. You cannot open the oven door when the printer is building. The top cover will
automatically unlock in conjunction with the oven door, allowing you to manually open the top cover. The oven
door must be open prior to opening the top cover. The oven door gasket, which runs around the perimeter of the
oven door frame, helps to provide an airtight seal when the oven door is closed.
The oven door window is composed of 2 panes of tempered glass.
Tip Wipe
Assemblies
(model left,
support right)
Platen
Oven
Door
Camera
Oven
Light
Purge
Chute
Oven
Door
Gasket
