PURGE CHUTE
The purge chute is located in the back of the oven. Purged material debris is guided down from the tip wipe
assemblies to the bottom of the oven chamber via the purge chute. Material debris exits the purge chute via an
opening at the bottom of the chute and then accumulates in the bottom of the oven chamber. Accumulated
material debris should always be cleaned on a weekly basis, or as needed if excessive accumulation occurs,
see “Cleaning the Oven Chamber” on page 164 for instructions.

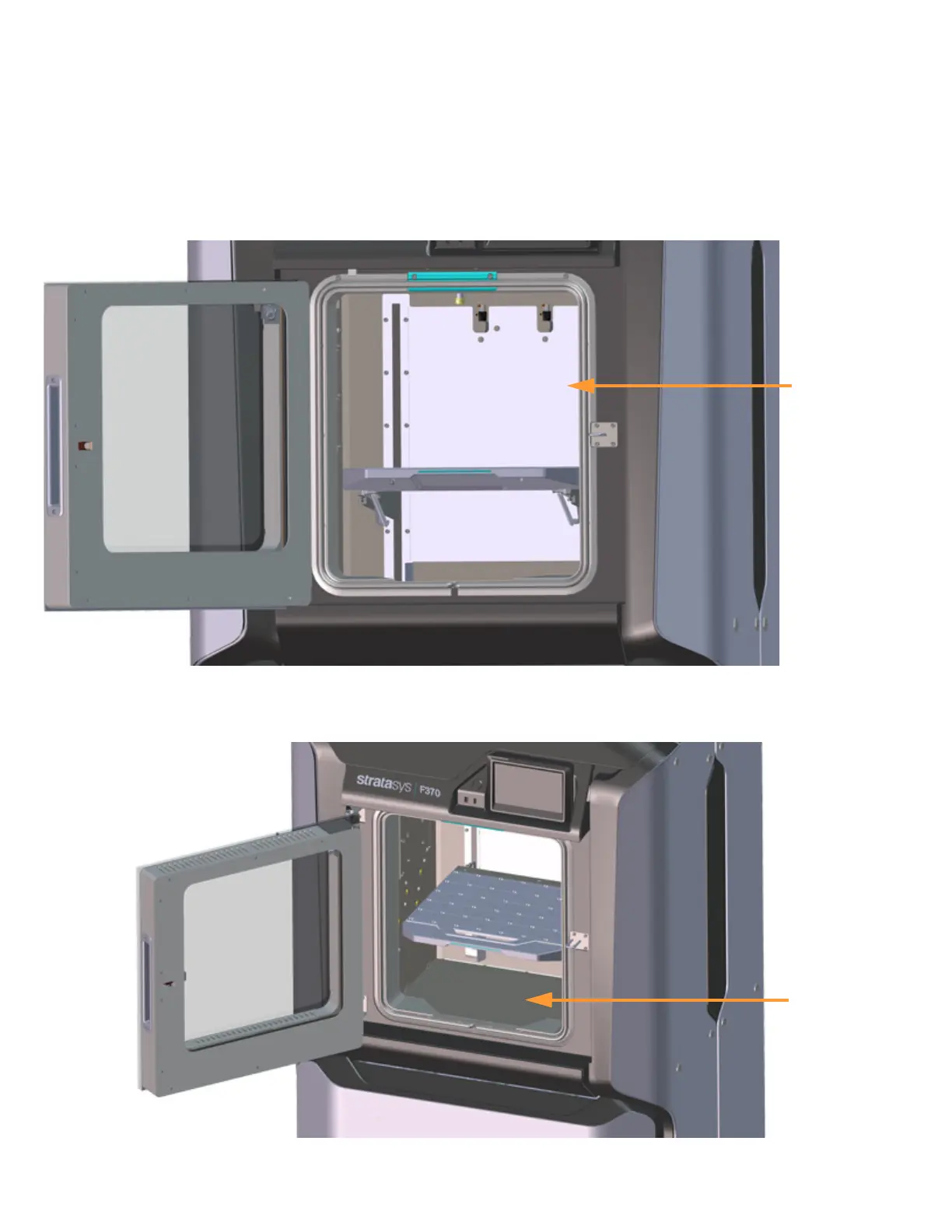

Figure 3-9: Purge Chute Location
Figure 3-10: Oven Chamber Cleaning Location
Purged
material
debris will
accumulate
here
