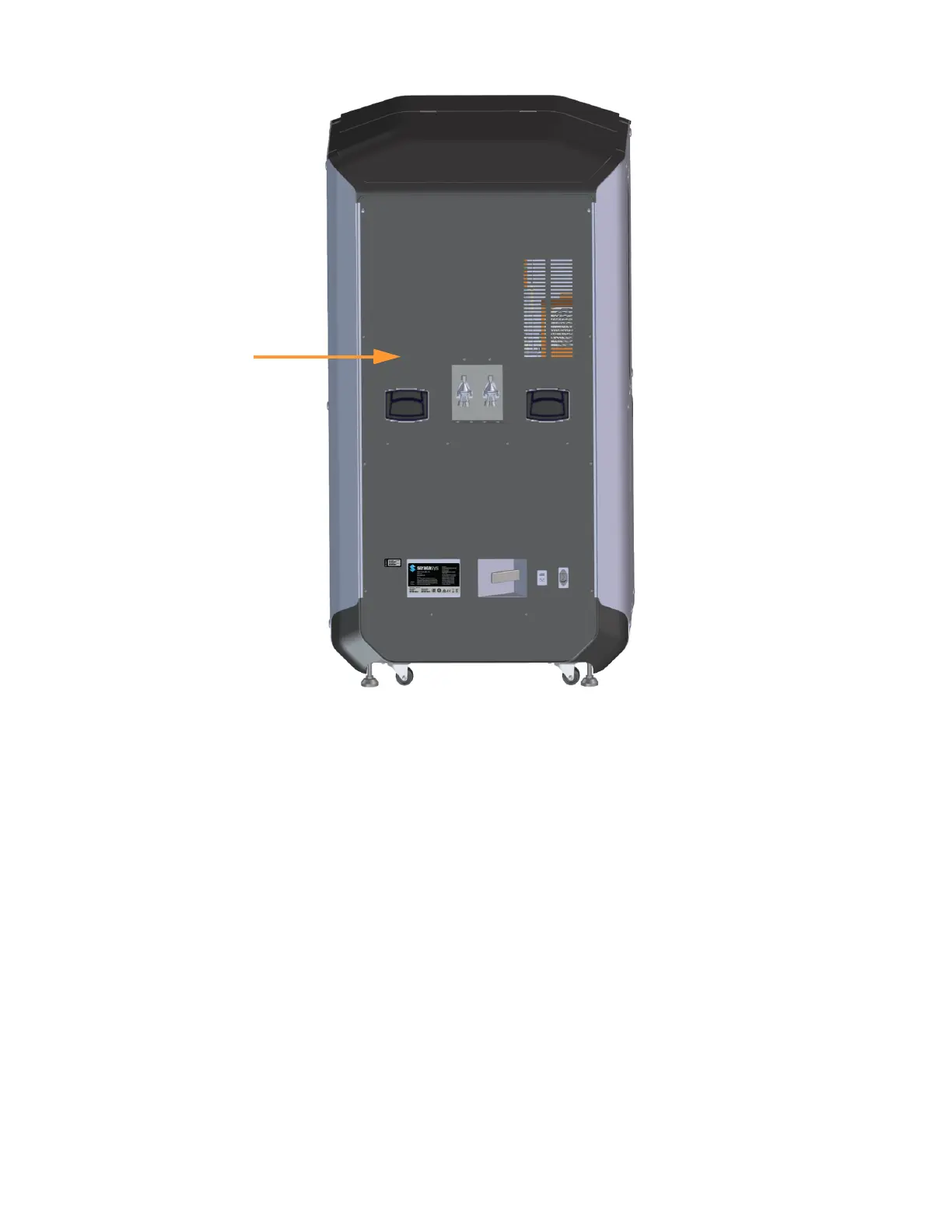

Figure 3-2: Access Doors and Panels - Rear View
TOP COVER
Allows access to the gantry and head assemblies.
OVEN DOOR
Allows access to the platen, tip wipe assemblies, purge area, and completed parts for removal. The printer’s
camera is also housed within the oven door.
MATERIAL BAY DRAWER
Allows access to the material bay components (material bays, material spools, and the material drive
controllers).
STORAGE DRAWER
Provides a built-in area which can be used for miscellaneous storage of spare parts, tools, etc., as needed.
RIGHT & LEFT SIDE PANELS
The right and left side panels provide access to the oven chamber fans.
REAR PANEL
The rear panel provides access to the electronics bay.
