DOC-34014 Rev. C 6–53
Objet24 User Guide
Whencompleted,thewizarddisplaystheconditionofthelamp,after
calibration.

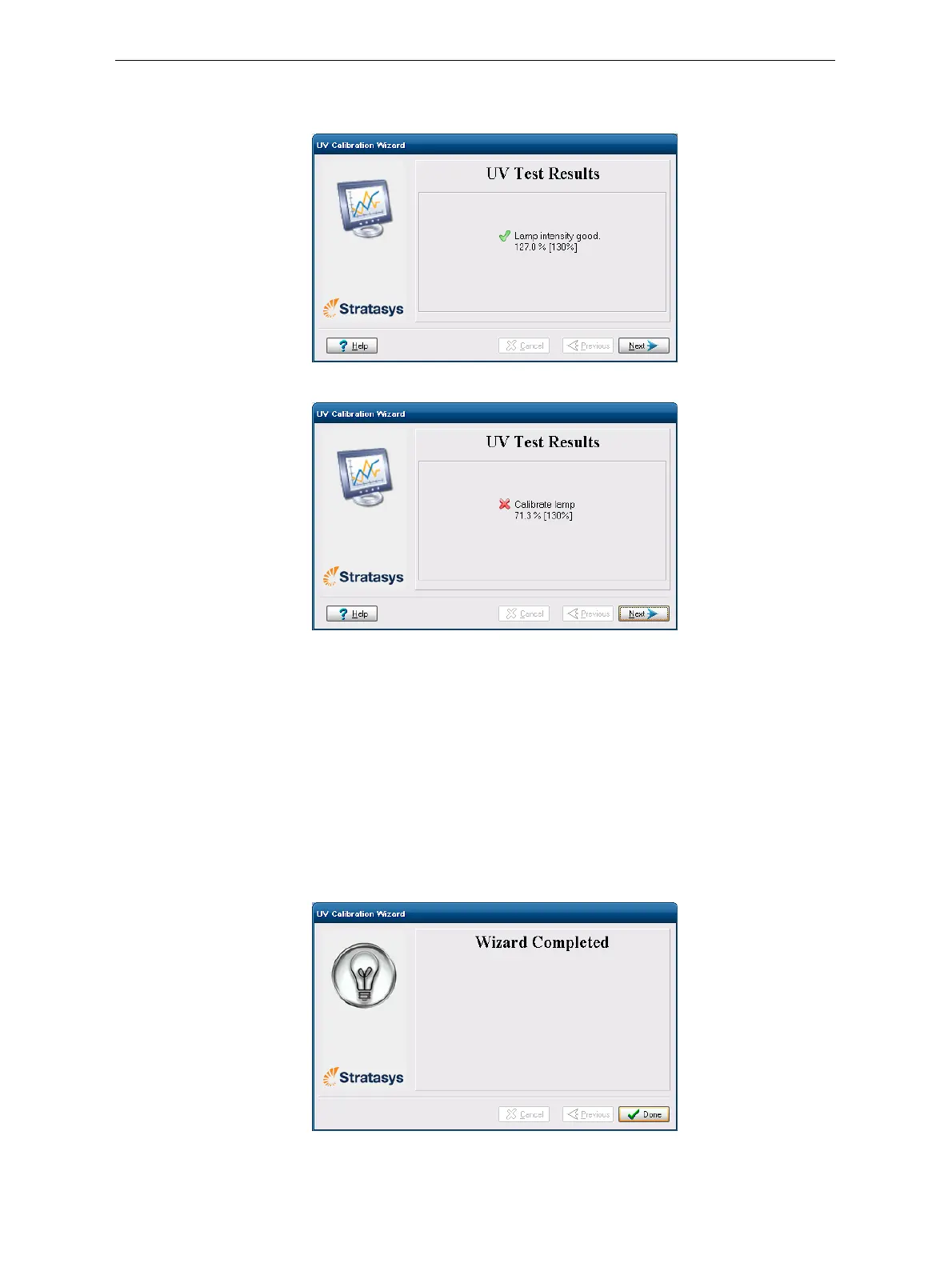

Figure 6-75: Final condition of UV lamp—acceptable intensity level
Figure 6-76: Final condition of UV lamp—unacceptable intensity level
6. IfthewizardcannotadjustthelamptowithinthespecifiedUV
intensityrange,performthefollowingstepsandrunthewizardagain
beforereplacingthelamp:
• CheckthattheUV‐lampglassisclean.
• CheckthattheUVsensoriscompletelyuncoveredandthatthe
protectiveglassisclean.
Iftheresultsarestillunacceptable,contactcustomersupportforfurther
advice.
7. Click
Next,closetheUVsensorcover,andconfirmthisinthewizard
screen.Thenclick
Nexttocompletethewizard.
Figure 6-77: Final UV Calibration Wizard screen
