Summa D120 - Setting Up the Cutter

SummaCut cutter User’s Manual
Setup 1-2
1.1.2
Setting up the machine with a stand
1.
Verify that the stand and basket come with all the accessories.
The box containing the stand should contain following:
a. 2 legs
b. 2 feet
c. 1 horizontal panel
d. A bag of 4 casters, screws and other accessories to mount the stand

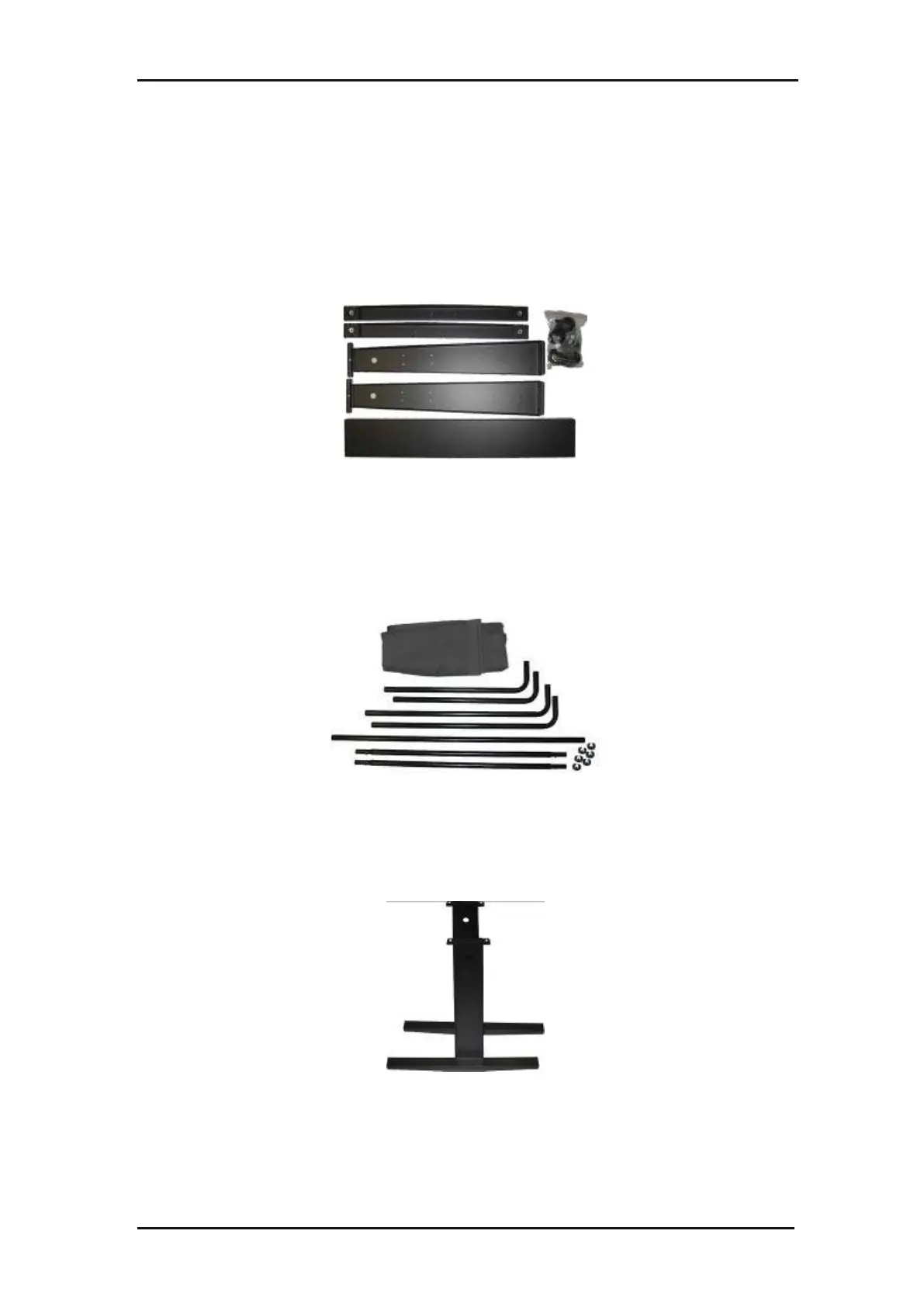

FIG 1-2
1-2 CONTENTS OF BOX STAND
2.
The box containing the basket should contain following:
a. A total of 7 tubes for the media basket
b. A linen media basket
c. A bag of accessories to mount the basket
FIG 1-3
1-3 CONTENTS OF BOX BASKET
3.
Mount a foot on each leg. Make sure that, in case the legs are orientated the same
way, the long end is pointing in one direction on one leg and in the other direction
on the other leg.
FIG 1-4
1-4 MOUNTING FEET
