SummaCut cutter User’s Manual
Setup 1-7
1.2.2
The Cutter as viewed from the back

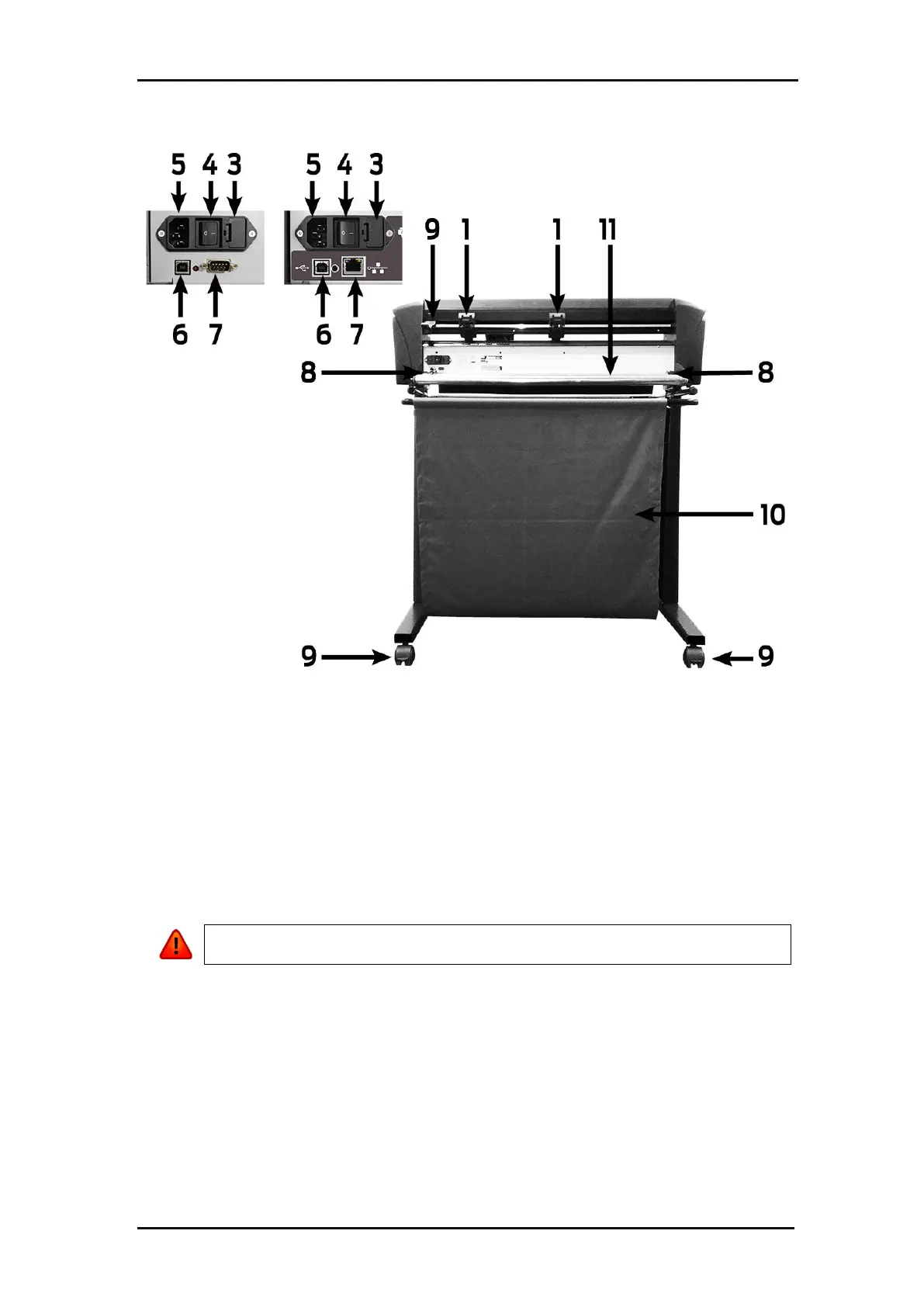

FIG 1-11
1-11 SUMMACUT CUTTER REAR VIEW
1.
Pinch rollers:
The pinch rollers clamp the media to the drive system to ensure
accurate tracking. The D120 has one and the D140 and D160 have two extra pinch
rollers to ensure that wide media stays flat in the middle. The extra rollers in the
middle can be enabled or disabled.
2.
Pinch roller lever:
This lever is used to raise and lower the pinch rollers for media
loading.
3.
The fuse box:
The fuse is located at the right side of the power entry module.
Check the specification section to see which fuse is used in the SummaCut cutter.
WARNING: For continued protection against risk of fire, replace only with
the same type and rating of fuse.
4.
Power On/Off switch:
This rocker switch, situated in the middle of the power entry
module, sets the cutter’s power to ON or OFF. To switch on the power, press the “I”
side of the rocker switch. To switch off the power, press the “O” side of the rocker
switch.
5.
AC power cord receptacle
: It is located at the left-hand side of the power entry
module. The power-up procedure is explained in detail in section
0. Always use a
power cord that was delivered with your cutter.
