Summa D120 - Fuse Replacement Procedure

SummaCut cutter User’s Manual
Maintenance 5-3
5.1.4
Changing the fuse
WARNING: Before changing the fuse, make sure the cutter is completely
disconnected from its power source.
WARNING: For continued protection against risk of fire, replace only with
the same type and rating of fuse: T2.0A, 250V SCHURTER
SPT OR
EQUIVALENT.
4.
To remove the fuse (3), lightly pry the fuse holder release clip (2) in the direction
opposite the power switch. The fuse holder will pop free.

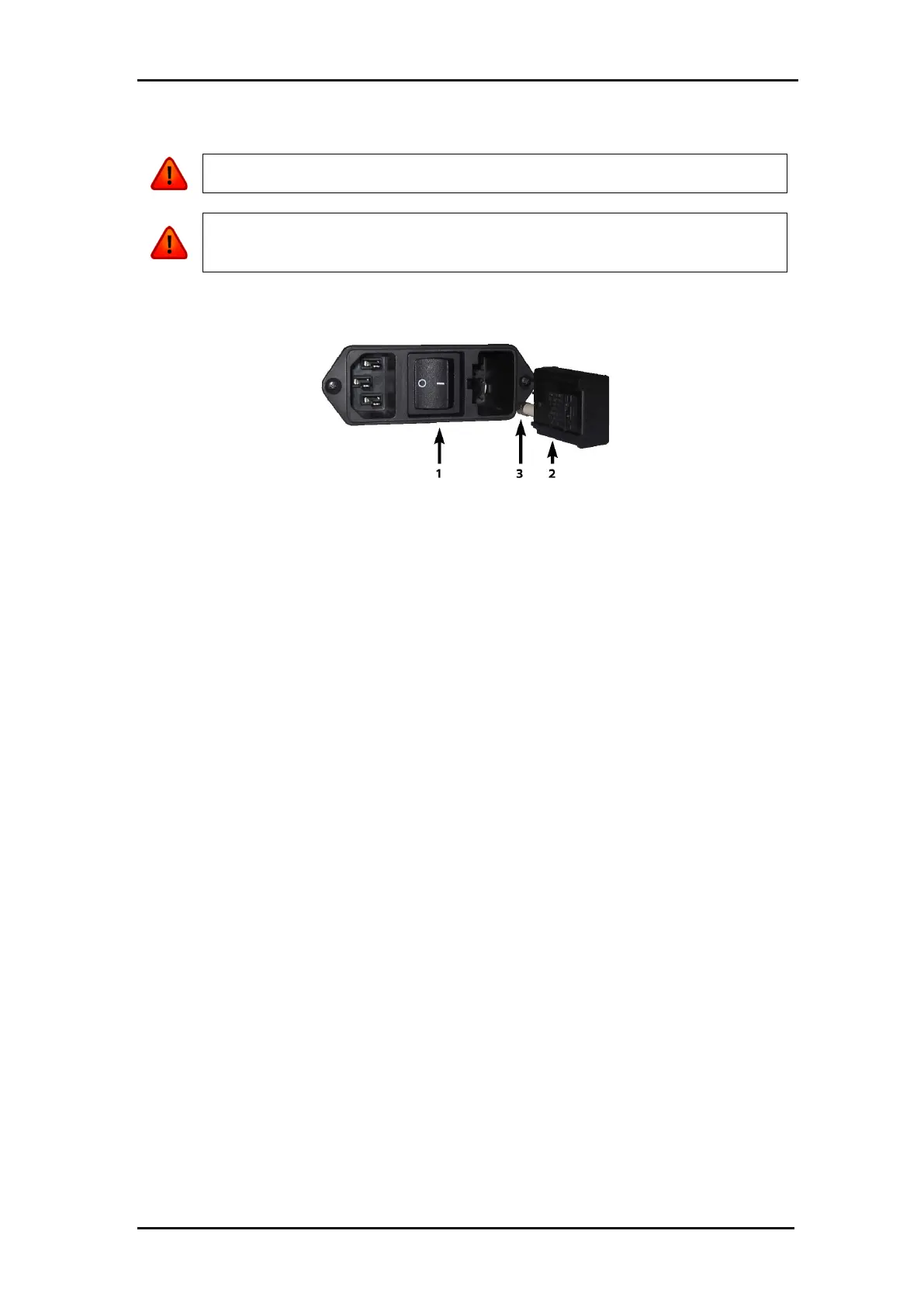

FIG 5-4
5-4 POWER ENTRY MODULE
5.
Remove the fuse holder.
6.
Pull the fuse from the holder.
7.
Put the new fuse in the holder and clip the holder back into place.
