SummaCut cutter User’s Manual
Setup 1-11
Connecting the Cutter to the Mains
1.4
FIG 1-12

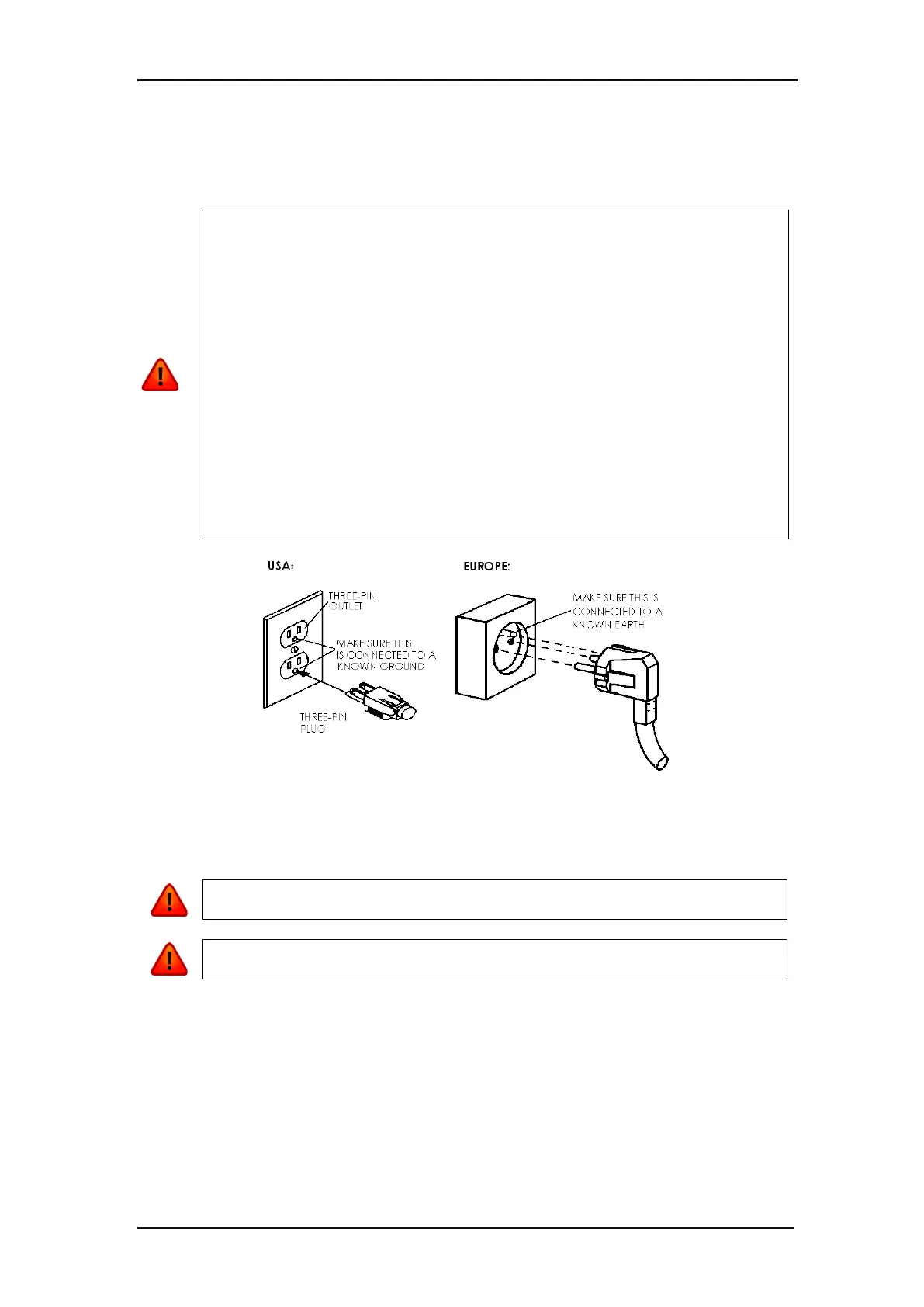

1-12 PROPERLY GROUNDED CONNECTION
WARNING: Before changing the fuse, make sure that the cutter is
completely disconnected from its power source.
WARNING: For continued protection against risk of fire, replace only with
the same type and rating of fuse.
Fuse Rate: T2.0A, 250V SCHURTER SPT OR EQUIVALENT.
The power supply detects the line voltage and switches automatically between 110V
and 230V.
WARNING: An insulated ground conductor must be installed as part of the
branch circuit that supplies power to the wall outlet, connected to the cutter.
The ground conductor must have the same size, insulation material and
thickness as the grounded and ungrounded branch-circuit-supply-
conductors, but the insulating seat should be green or green with yellow
striping.
The ground conductor described above must be grounded at the electrical
distribution board or, if power is supplied by a separate system, at the power
supply transformer/motor generator set.
The wall sockets, into which the cutter is plugged-
in, must be of the
grounded type. The grounded conductors, serving the wall socket, must be
properly connected to the ground.
For emergency access, the cutter should be installed near the socket-outlet
