Summa D120 - Mounting Horizontal Panel; Mounting the 4 Casters; Mounting the Cutter on the Stand; Installing the Basket

SummaCut cutter User’s Manual
Setup 1-3
4.
Mount the horizontal panel. Make sure the hollow side is orientated to the same
side as the long ends of the feet (this would then be the rear).

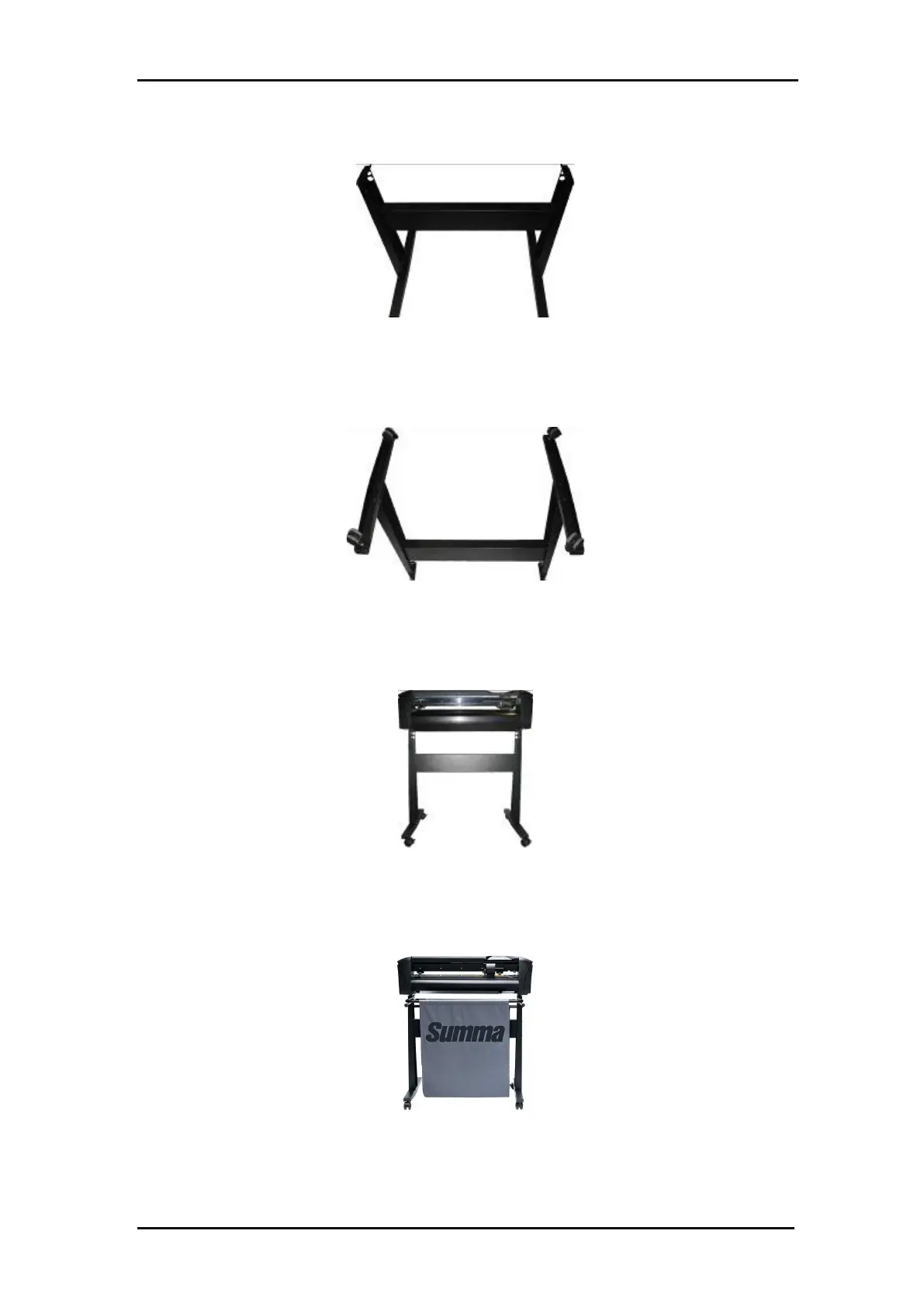

FIG 1-5
1-5 MOUNTING HORIZONTAL PANEL
5.
Turn the stand upside down and mount the 4 casters (put the nut in the casters first,
then use the 12 mm wrench.
FIG 1-6
1-6 MOUNTING THE 4 CASTERS
6.
Turn the stand the right way up again, put the machine on the stand and secure
with 4 screws.
FIG 1-7
1-7 MOUNTING THE CUTTER ON THE STAND
7.
Mount the basket. Make sure the long tubes are used at the rear. Put a saddle clip
to keep tubes in their place.
FIG 1-8
1-8 INSTALLING THE BASKET
