Summa D120 - Tool Installation and Adjustment

SummaCut cutter User’s Manual
Setup 1-25
Tool Installation
1.7
WARNING: The SummaCut cutters use razor-sharp knives. To avoid serious
injury, be careful when installing, removing or handling the knife!
1.7.1
Knife installation
A knife has been pre-installed in the cutter.
For safety reasons, the knife depth has been set to zero. Simply turn out the knife (see
fig 1-22 yellow arrow clockwise) to start cutting. Below is the complete description of
the knife removal and knife installation.

Removing the drag knife
1.
Loosen the head clamp screw (1), swing the clamp arm back and remove the knife
holder from the clamp (2).

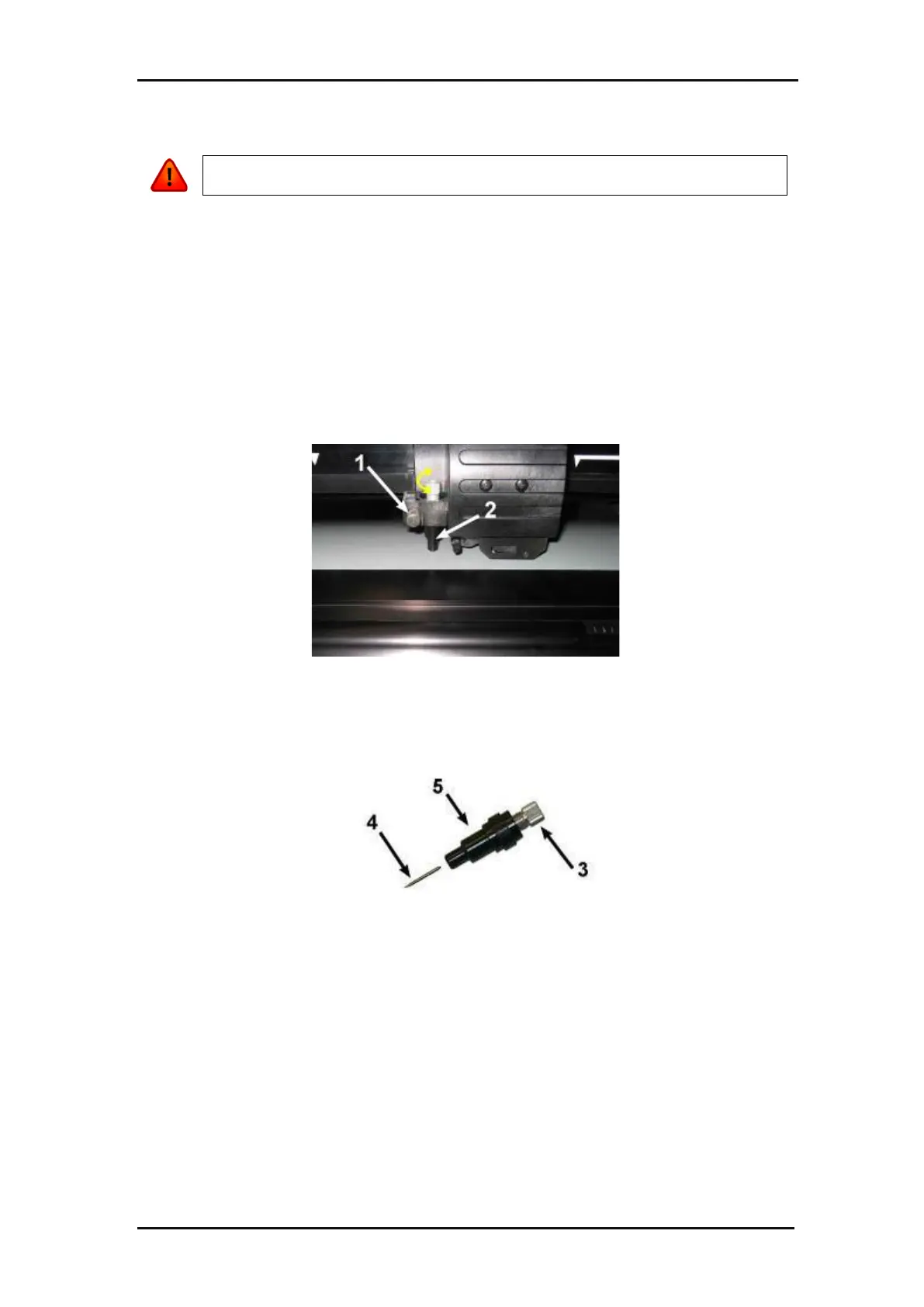

FIG 1-22
1-22 REMOVING THE DRAG KNIFE HOLDER FROM THE CLAMP
2.
Turn the knurled adjustment knob (3) clockwise to push the knife (4) out of the
holder (5).
FIG 1-23
1-23 REMOVING THE KNIFE FROM THE STANDARD DRAG KNIFE HOLDER
3.
Carefully pull the knife from the holder.
