Summa D120 - Media

SummaCut cutter User’s Manual
Specifications 6-4
6.3.3
Media
D60
(4)
D75
D120
D140
D160
mm inch mm inch mm inch mm inch mm inch
Media Width
Minimum 70 2.8 70 2.8 120 4.7 180 7.1 180 7.1
Maximum 660 26.0 710 28.0 1260 49.6 1410 55.5 1635 64.4
Pinch rollers
2 2 3 4 (3 for FX) 4
Max .working
Width
600 23.6 750 29.5 1200 47.2 1350 53.1 1575 62
Oversized
(3)
630 24.8 780 30.7 1230 48.4 1380 54.3 1605 63.2
mm Inch
Max. Working
Length
50m 164ft.
Minimum
Margins
(2)
25 1
Front margin
18 0.7
Rear margin
Sensor on
42
1.7
Sensor off 25 1
Tracking
(3)
performance
-8 m/26 feet max. within guaranteed specifications
(1)
for media less than 762 mm (30’’ wide).
-4m/13 feet max. within guaranteed specifications
(1)
for media larger than 762 mm (30’’ wide).
Thickness
0.05 to 0.25 / 0.8 mm with optional sandblast knife
0.002 to 0.01 / 0.03 inch with optional sandblast knife
(1)
Larger Media lengths can be handled, but compliance with specifications is not guaranteed (will be
dependent on media type, media size and other parameters not mentioned here.
(2)
For positioning of the pinch rollers, these margins can be minimized using ‘Oversized’ mode
(3)
(3)
In ‘Oversized’ mode the tracking performance is no longer guaranteed.
(4)

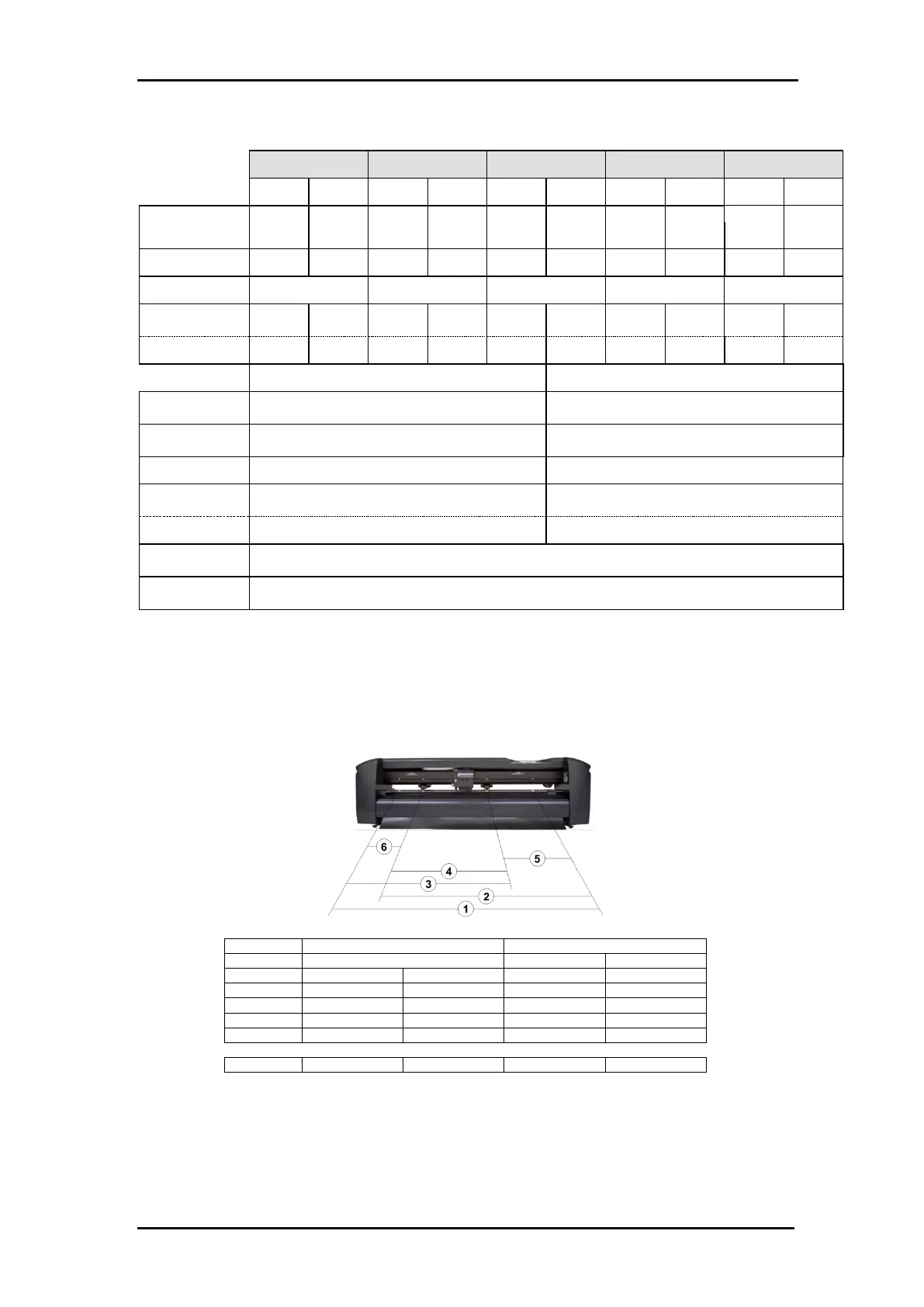

The FX Series have different media specifications as the pinch rollers can only be set in a limited
number of positions.
For the D60FX: 6 positions:
Position
Working area
Target media width (margin)
mm = Inch
mm
Inch
1.
575
22.6
610 (18)
24 (0.7)
2.
470
18.5
500 (15)
20 (0.8)
3.
375
14.8
400 (13)
16 (0.6)
4.
270
10.6
297 (14)
12 (0.7)
5.
190
7.5
210 (15)
8.3 (0.4)
For scrap:
6.*
95
3.7
115 (10)
4.5 (0.4)
* Media sensor should be disabled in order to use this position.
