Summa D120 - Feeding Roll Media Without Using the Flanges; Media Position

SummaCut cutter User’s Manual
Setup 1-20
ATTENTION: If the flanges are not used (not recommended – tracking is not
guaranteed), then make sure that the roll is situated between the two flange
guides.

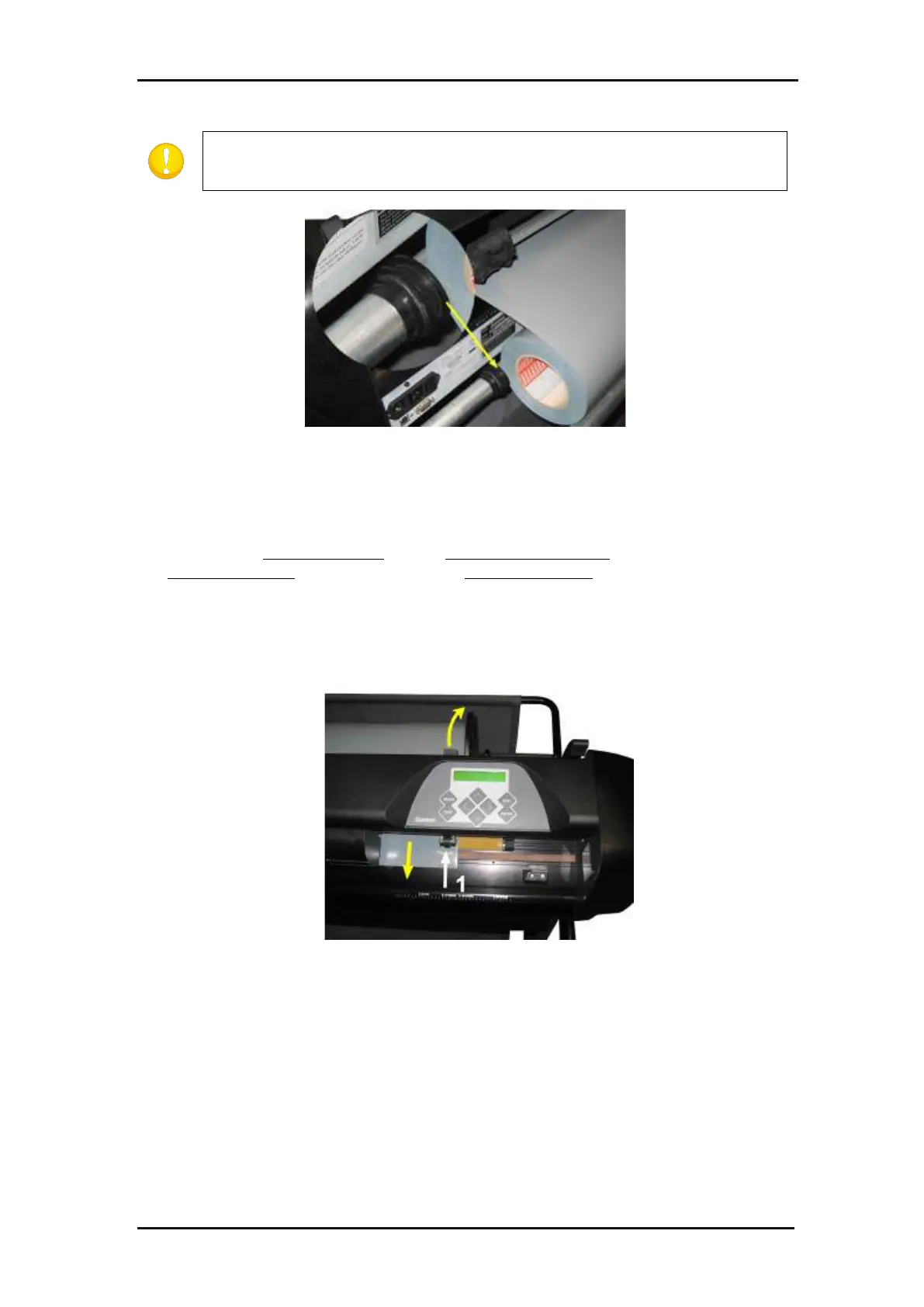

FIG 1-19
1-19 FEEDING ROLL MEDIA WITHOUT USING THE FLANGES
5.
Start feeding the media from the rear of the machine. Pass the media underneath
the pinch rollers towards the front of the machine.
6.
Position the left media edge on the left most drive sleeve and check whether the
right media edge is positioned over the long drive sleeve. Then position the left and
right pinch rollers.
The pinch rollers should be positioned over the drive sleeves about 3 to 15 mm (0.1”
to 0.6”) away from the media’s outer edges (1). Then pull on the media while
holding the flange at the back, so the media is tight.
FIG 1-20
1-20 MEDIA POSITION
In circumstances where the above procedure does not work, because the media is
too narrow to reach the long drive sleeve, try positioning the left media edge over
the second left drive sleeve and position the right media edge somewhere over the
long drive sleeve. Continue moving the left pinch roller towards the long drive
sleeve until both pinch rollers are in their designated position and directly over the
edges of the vinyl.
In all cases, both edges of the media must cover a drive sleeve. If this is not the
case, reposition the roll of material to cover the drive sleeve.
