SummaCut cutter User’s Manual
Setup 1-5
SummaCut Cutter Components
1.2
1.2.1

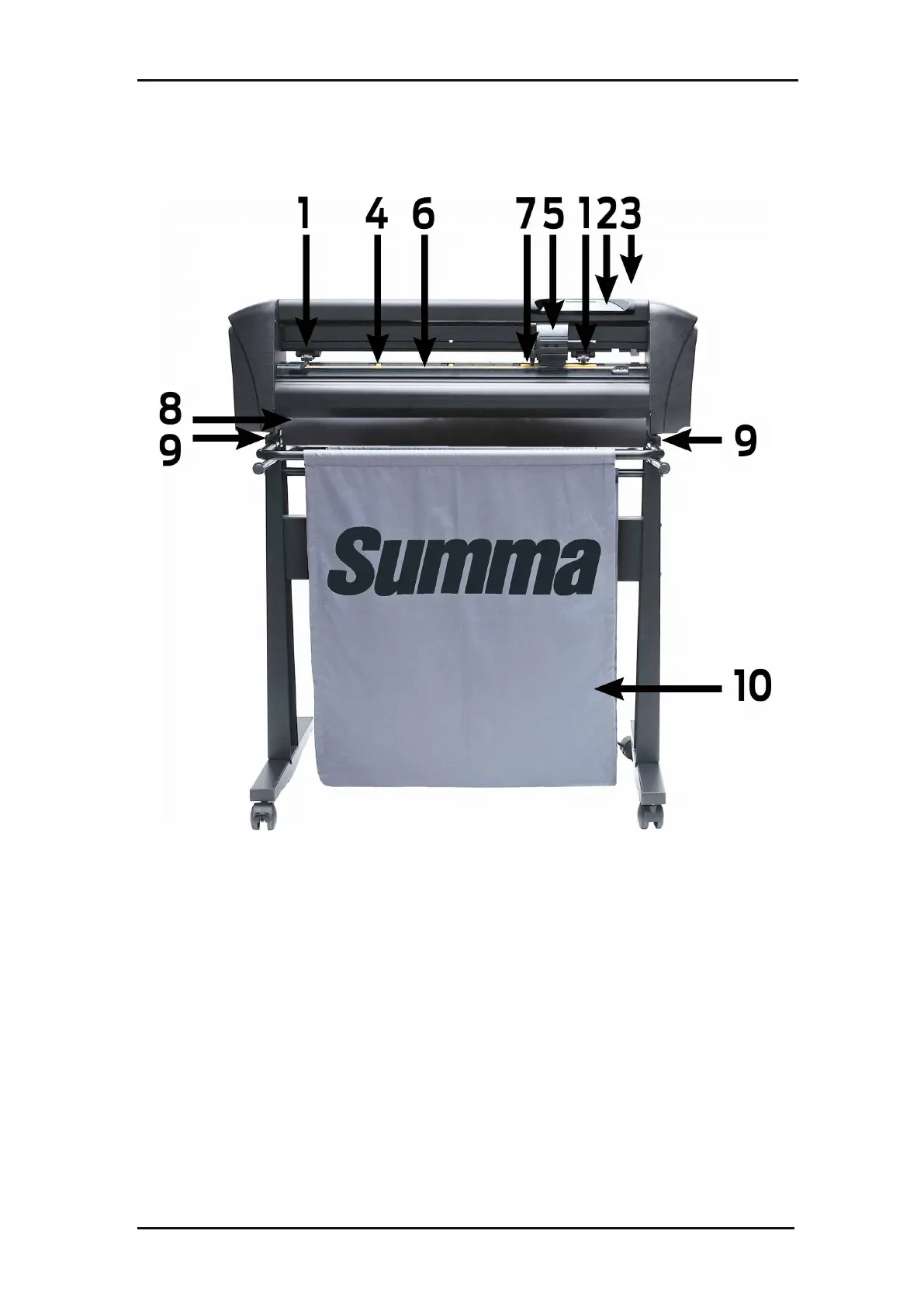

The Cutter as viewed from the front
FIG 1-10
1-10 SUMMACUT CUTTER FRONT VIEW
1.
Pinch rollers:
The pinch rollers clamp the media to the drive system to ensure
accurate tracking. The D120 has one and the D140 and D160 have two extra pinch
rollers to ensure that wide media stays flat in the middle. The extra rollers in the
middle can be enabled or disabled.
2.
Keypad:
All cutter activity can be initiated from the keypad. The LCD displays
information about the cutter’s current status and/or actions that need to be taken.
3.
Pinch roller lever:
This lever is used to raise and lower the pinch rollers for media
loading.
4.
Media drive sleeves:
The media drive sleeves only move the media when the pinch
rollers are in the “down” position. The larger the model, the more small sleeves.
5.
Tool carriage:
The tool carriage is the mount for the knife holder, pen or pouncing
tool. It also holds the Optical POSitioning sensor (OPOS).
