SummaCut cutter User’s Manual
Basic Operation 2-9
The cutter will reload the media and perform the length calibration test. Take out
the media and measure the length of the cut line with a ruler (measuring device).

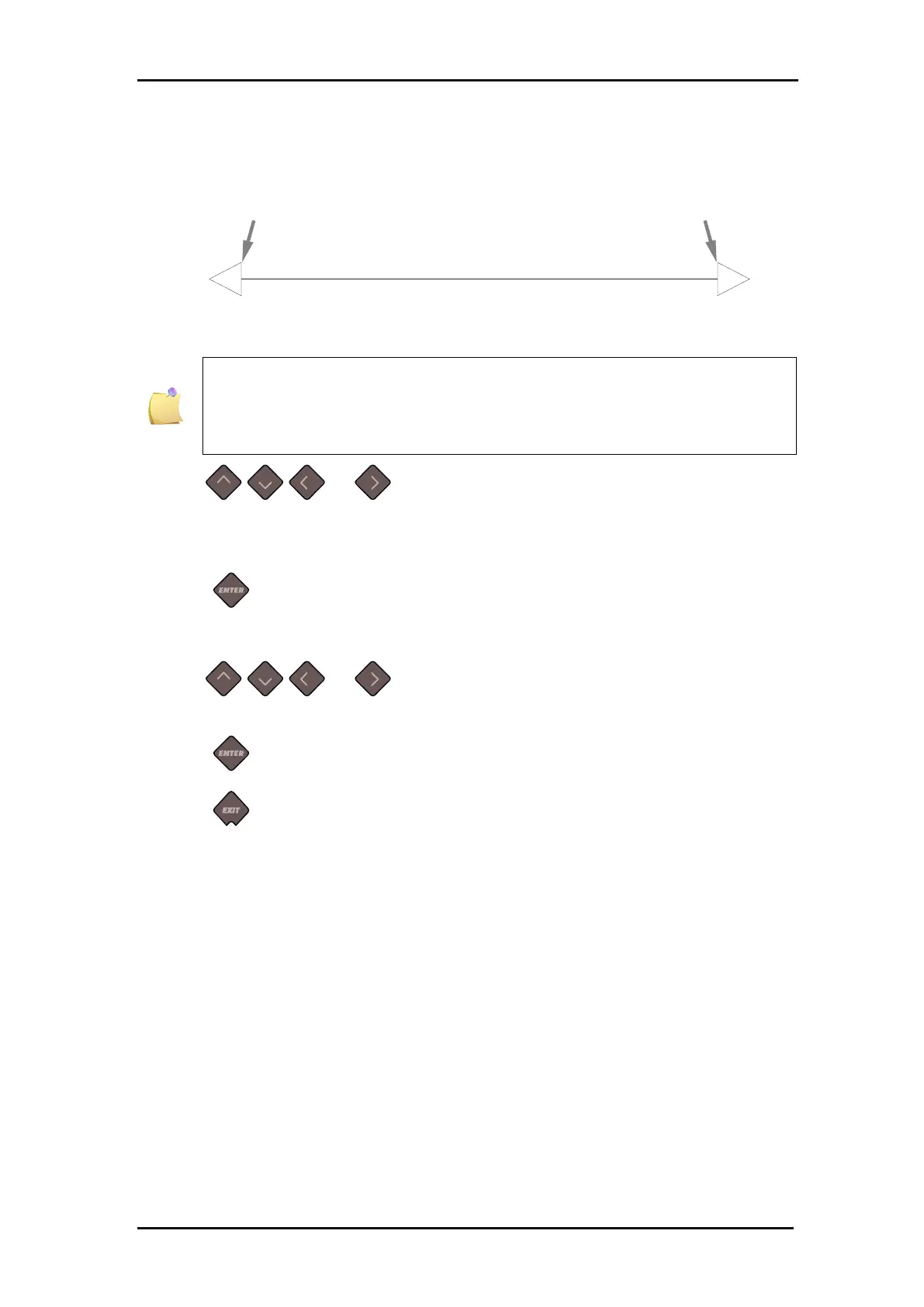

The length that needs to be entered is the distance between line 1 and line 2, as
shown in the figure below.
FIG 2-3
2-3 LENGTH CALIBRATION PATTERN
NOTE: The cutter will only be as accurate as the accuracy of the calibration
itself. If the ruler (measuring device) is inaccurate, then re-calibrating may
worsen the cutter’s accuracy. The accuracy of the calibration will be
reflected directly in the cuts. Set the cutter to Metric to do the calibration. It is
more accurate than the English unit system (see section 0).
8.
Use , , and to change the value on the LCD to the measured
length of the distance between the two lines down the length of the vinyl roll.
The value will change on the LCD.
9.
Press to confirm.
The value for the Y axis will appear on the LCD.
10.
Use , , and to change the value on the LCD to the measured
length of the distance between the two lines down the width of the vinyl roll.
11.
Press to confirm.
12.
Press twice to leave the menu.
1 2
