SVAN 971 User Manual – Appendixes
176

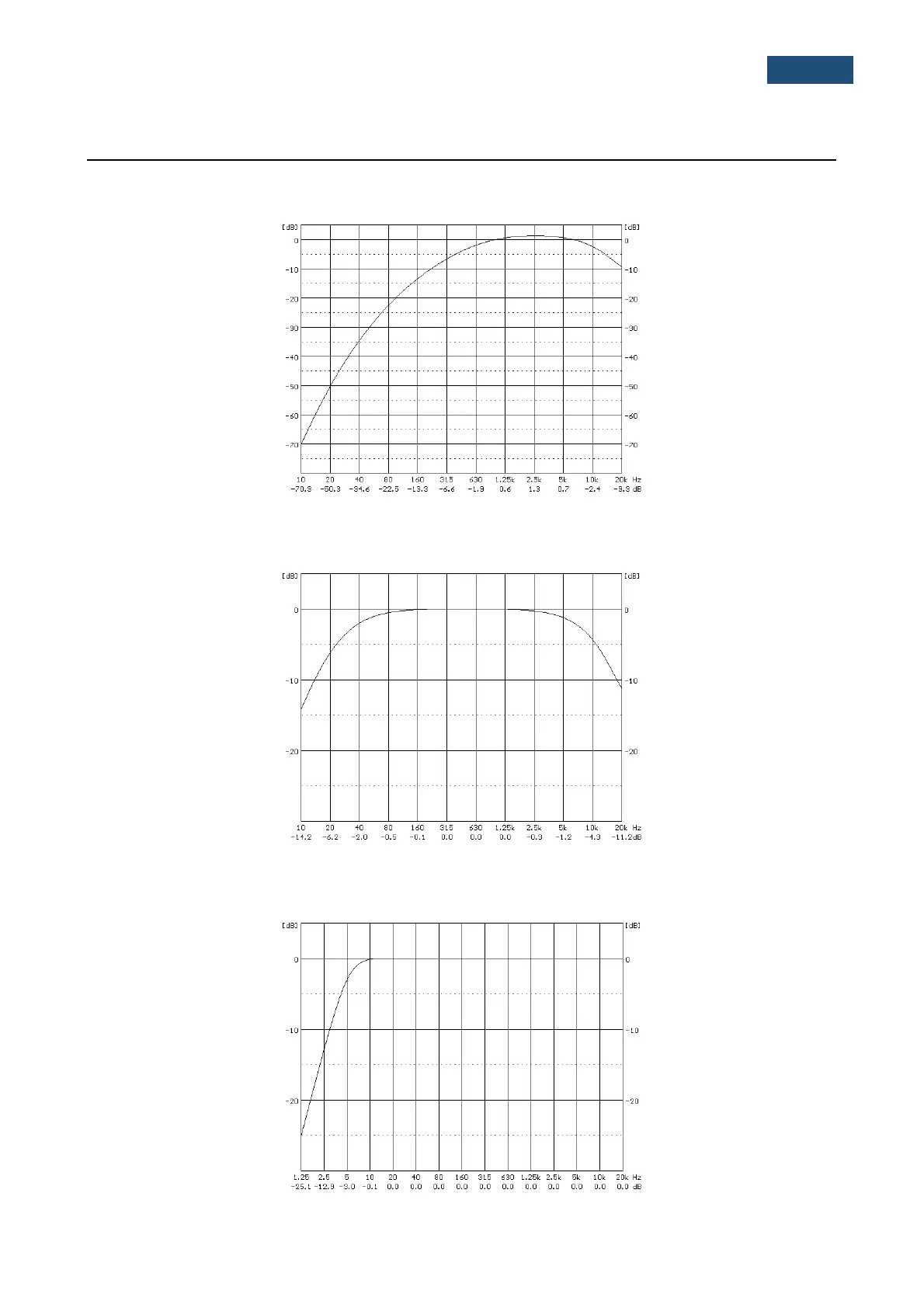

C.3 FREQUENCY CHARACTERISTICS OF THE IMPLEMENTED DIGITAL FILTERS
“A” filter Class 1 according to the IEC 651& and IEC 61672-1:2013 standard.
“A” filter characteristics
“C” filter Class 1 according to the IEC 651 and IEC 61672-1:2013 standard.
“C” filter characteristics
“Z” filter Class 1 according to the IEC 61672-1:2013 standard.
“Z” filter characteristics
