SVAN 971 User Manual – Appendixes
182

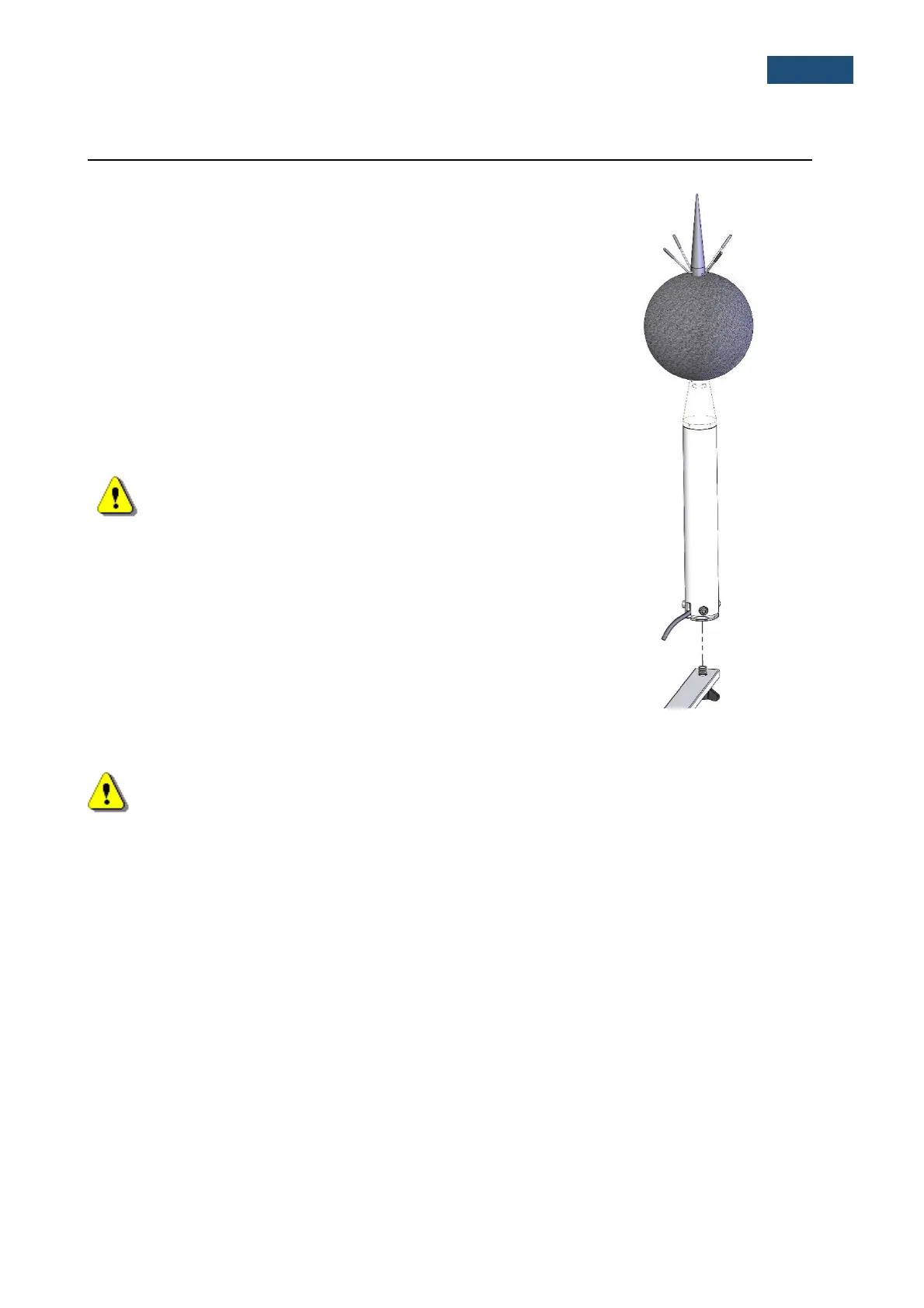

C.5 USING OF THE SA 271 OUTDOOR MICROPHONE PROTECTION UNIT
The SA 271 outdoor protection unit protects the SVAN 971
preamplifier and microphone from weather conditions. The use of the
outdoor kit requires an extension cable between the instrument and its
preamplifier (SC 271). The SA 271 is made of lightweight materials
and is easy to install on a tripod. This solution is recommended for
short term and semi-permanent outdoor noise measurements.
The outdoor microphone kit has ¾” screw on its bottom which enables
the use of standard tripods or other user specific mountings.
As an option the user may use desiccator - Silikogel. The desiccator
absorbs moisture commonly contained in the air. The desiccator
should be regenerated after some period of use, when it changes
colour to red, by drying it for 3 hours in a temperature of 150°C. The
colour of the silica gel is visible through the hole on the top of the
desiccator
Note: See also SA 271 Assembly Guide to learn how to
assemble and disassemble the microphone’s outdoor
protection.
Note: Using SA 271 changes the frequency response and measuring ranges of SVAN 971.
Please check the below given specification.
Depending on the measurement task SA 271 can be used in two operational modes:
1. With reference incidence angle 90 deg. – so called “environmental mode”
2. With reference incidence angle 0 deg. – so called “airport mode”
The wave incidence angle is oriented to the microphone membrane surface. 0 deg. means direction orthogonal
to the membrane surface. 90 deg. means direction parallel to the membrane surface.
Frequency response of SVAN 971 with SA 271 outdoor protection unit is compensated by means of two digital
filters:
• Environmental compensation filter improving the complete instrument
frequency response in the free field for the reference acoustic
wave incidence angle 90 deg
• Airport compensation filter improving the complete instrument
frequency response in the free field for the reference acoustic
wave incidence angle 0 deg
