SVAN 971 User Manual – Appendixes
178

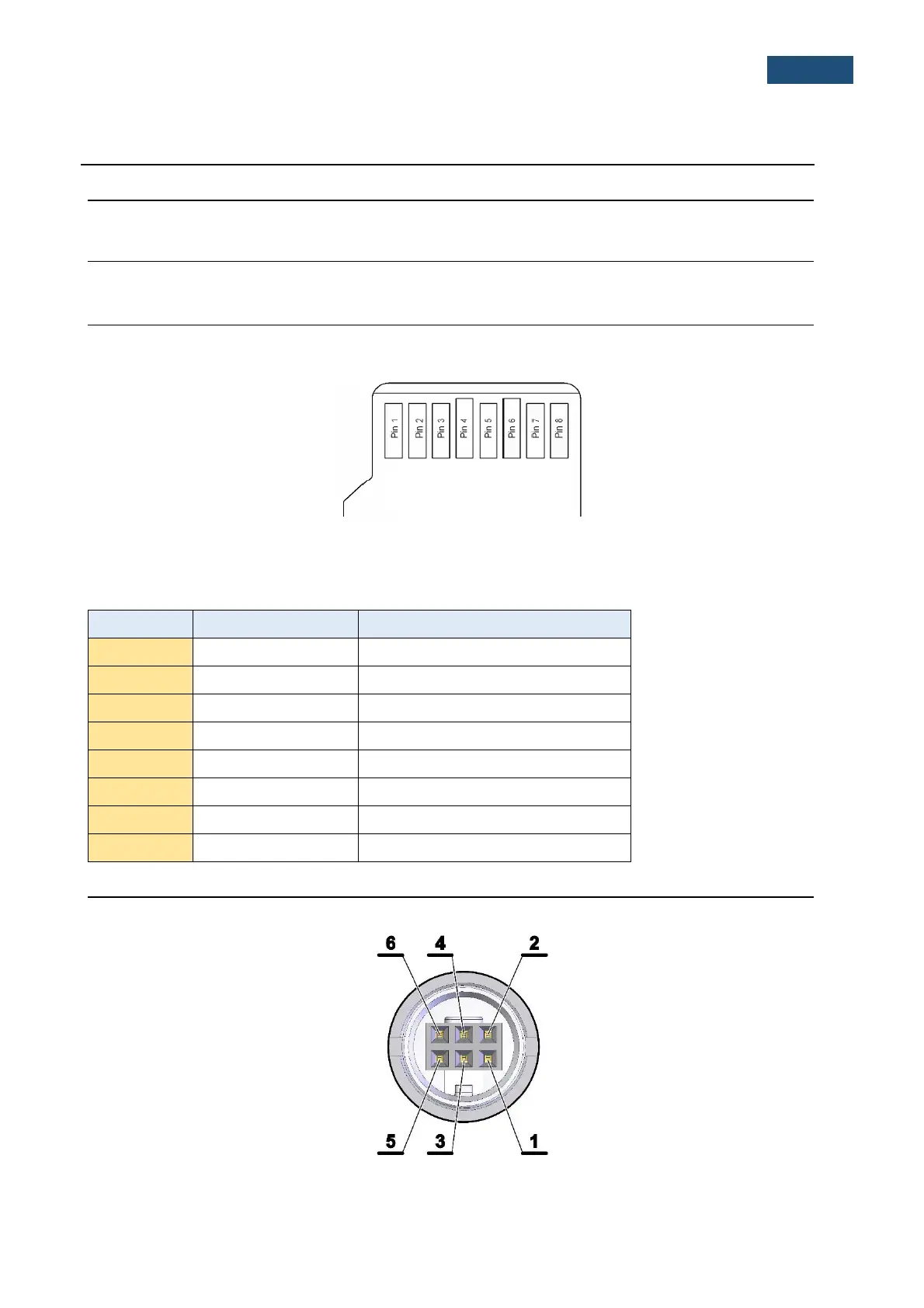

C.4 MISCELLANEOUS SPECIFICATION OF SVAN 971
Display
Super contrast OLED color display (96 x 96 pixels).
Memory
16 MB flash memory and 320 kB RAM memory.
Memory card
Can be used typical Micro SD or Micro SDHC cards. Supported for up to 128 GB (provided that card was
formatted as FAT32).
MicroSD contact pad assignment - outer view
Table C.4.1. Pin out of the MicroSD contact
Pin No.
Name
Description
1
DAT2
Data Line [Bit 2]
2
CD/DAT3
Card Detect / Data Line [Bit 3]
3
CMD
Command / Response
4
V
DD
Supply voltage
5
CLK
Clock
6
V
SS
Supply voltage ground
7
DAT0
Data Line [Bit 0]
8
DAT1
Data Line [Bit 1]
Input (Preamplifier) Connector
The input of the measured signal is taken form the microphone preamplifier:
Connector view (external), contact assignment
