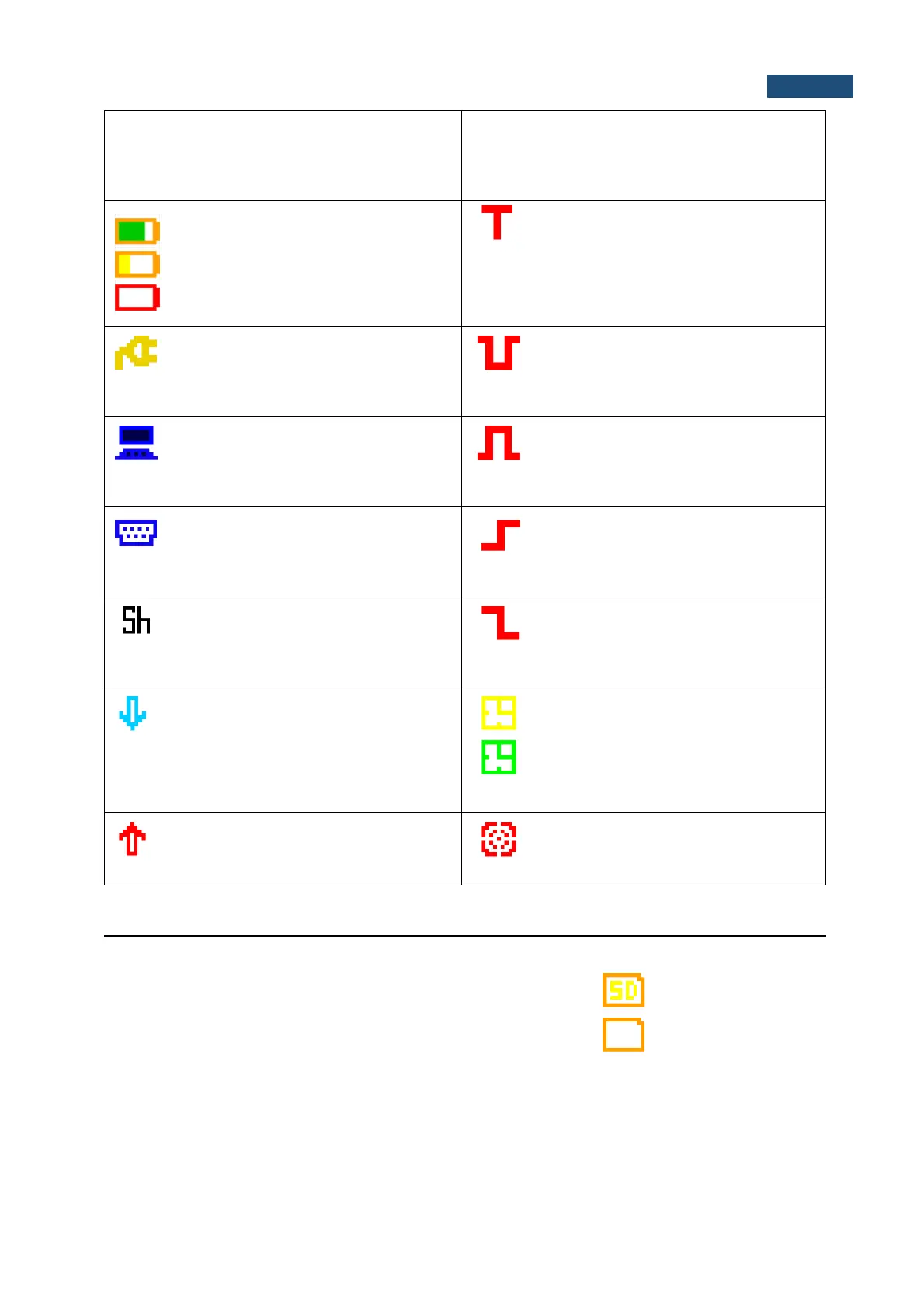

Grey colour of the icon means that the
instrument waits for the logging start after
pressing <Start> key due to a start delay
or a delay caused by a trigger.
start after pressing <Start> key due to a
start delay or a delay caused by a trigger.
“battery” icon is displayed when the
instrument is powered from the internal
batteries. Icon colour corresponds to the
charging status of the batteries (green -
30÷100%, yellow – 10÷30%, red – less
than 10%).
“trigger” icon is displayed when other
than Level or Slope trigger is waiting for
condition fulfilment. The icon appears
alternately with the “play”, “curve” or
“note” icons.
“plug” icon is displayed when the
instrument is powered through the USB
socket without using USB interface.
“Level - trigger” icon is displayed when
the trigger condition is set up to „Level -
”. The icon appears alternately with the
„play”, “curve” or “note” icons.
“computer” icon is displayed when there
is USB connection with the PC.
“Level + trigger“ icon is displayed when
the trigger condition is set up to „Level
+”. The icon appears alternately with the
„play”, “curve” or “note” icons.
“RS232” icon is displayed when the
RS232 port is activated.
“Slope + trigger” icon is displayed when
the trigger condition is set up to „Slope+”.
The icon appears alternately with the
“note” icons.
“Shift” icon is displayed when the
<Shift> key is pressed.
“Slope – trigger“ icon is displayed when
the trigger condition is set up to „Slope-
”. The icon appears alternately with the
“note” icons.
“underrange” icon is displayed when
during the measurement the underrange
was registered.
“clock” icon is displayed when the timer
is On. It is active when the instrument is
waiting for the measurement start to
occur. When the measurement start is
close, the icon changes its colour to
green and start blinking.
“overload” icon is displayed when during
the measurement the overload was
registered.
“vibration” icon is displayed when high
self-vibration level is registered
Memory type
All available measurement results and settings can be stored in the
instrument’s memory (micro SD-card) as files in the predefined or
assigned directories. The setup files are stored in the predefined
directory SETUP. The non-predefined directories can be changed by
the user or renamed.
The SD Card memory is activated automatically after insertion of the
card. The presence of the SD-card is indicated by the icon with SD
letters at the top left-hand corner of the display.
- SD-card is inserted
- no SD-card
