SVAN 971 User Manual – Appendixes
205

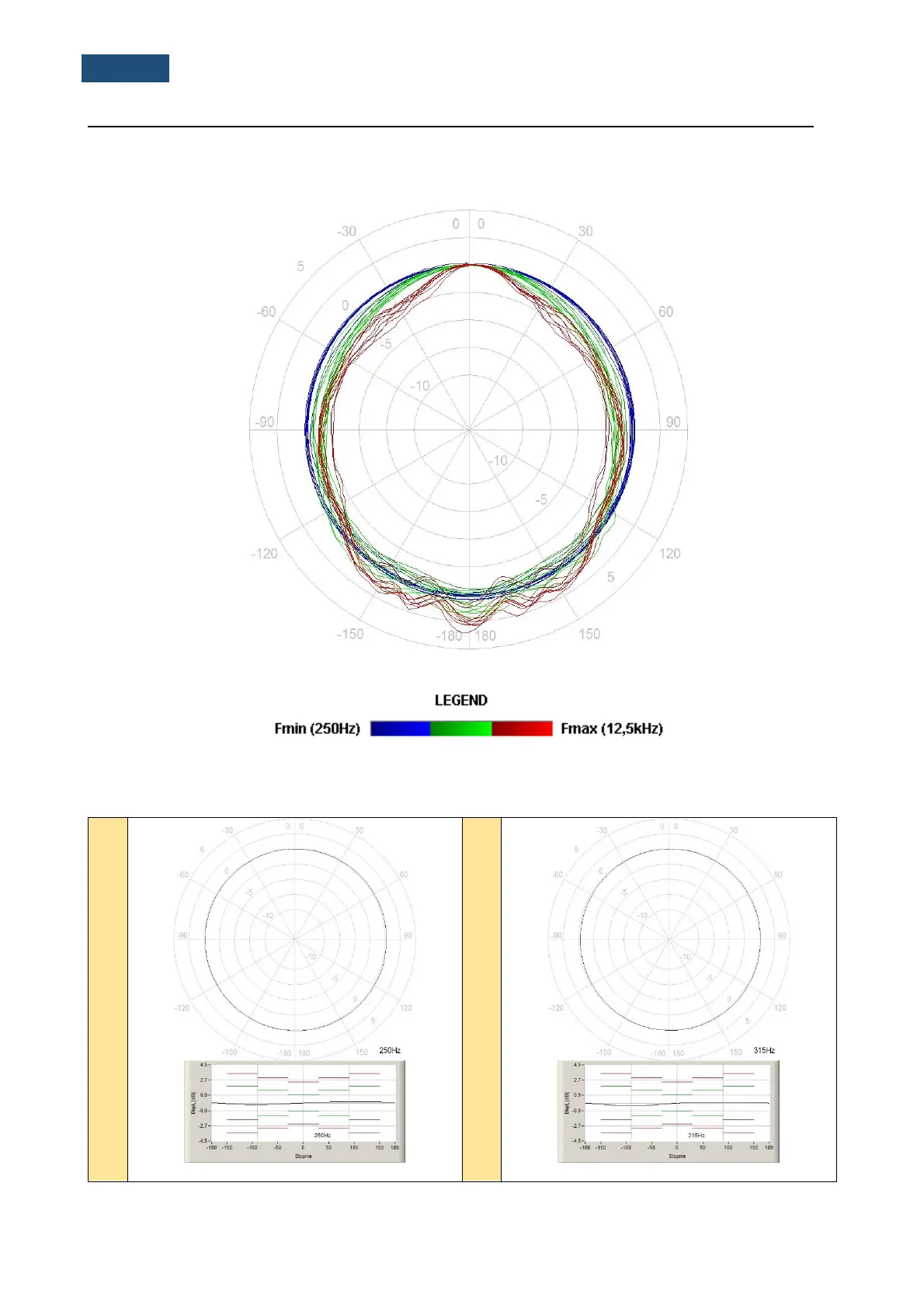

Free Field Directional characteristics of SVAN 971 with SA 271
Directional response for SLM Class SVAN 971 with microphone ACO 7052E, preamplifier SV 18 and outdoor
microphone kit SA 271 for specified frequencies:
Total directional characteristics
The round charts show the directional characteristic and the charts below shows the errors for particular
angles.
250 Hz
315 Hz
