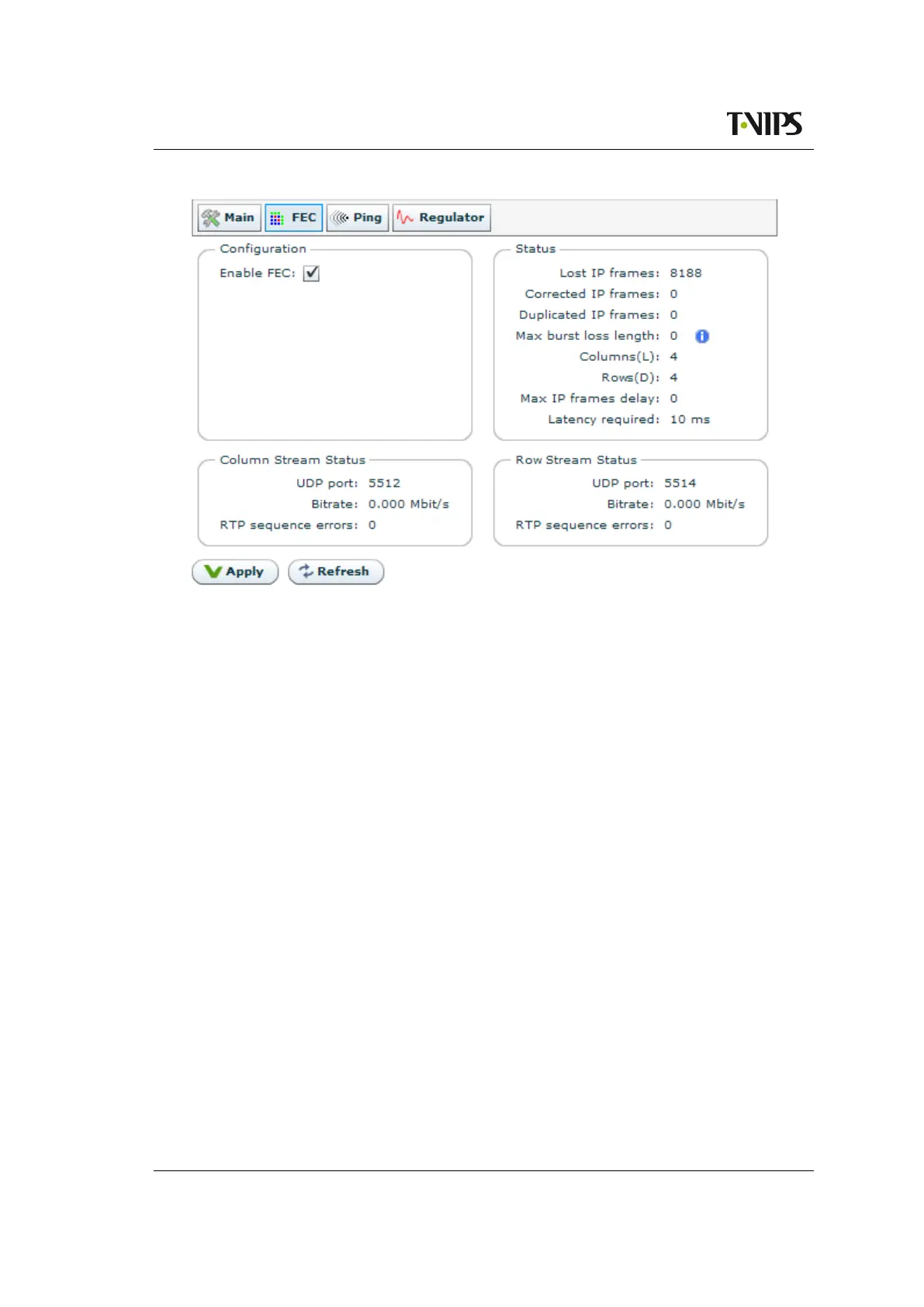

Figure 8.53 Input FEC configuration
Duplicated IP frames
The number of IP frames that have been regenerated while also being received correct-
ly. This occurs if the IP frame is received out-of-order with sufficiently long delay (thus
regarded as lost by the FEC processor).
Max Burst Loss Length
The maximum number of consecutive IP frames that have been lost.
Columns(L)
The number of columns used in the FEC matrix of the incoming signal.
Rows(D)
The number of rows used in the FEC matrix of the incoming signal.
Max IP frames delay
The maximum delay of out-of-order IP frames (datagrams).
Latency required
The latency required by the input FEC processor to handle the incoming FEC matrix.
The Column Stream Status and Row Stream Status fields show the status of the IP stream
carrying the column and row FEC IP datagrams, respectively:
UDP port
The UDP ports receiving the column/row FEC data.
Bitrate
The bitrates of the Column and row FEC data.
