related to the device rather than to a specific port. Values of 1 and up reference
specific ports.
Alarm ID
Each alarm condition has an associated numerical alarm ID.
Details
An optional string to provide more alarm information in human readable form. The format
of this string depends on the alarm type. Hovering the mouse over this field produces a
tool-tip displaying the full text.
A detailed overview of alarm conditions is given in
Appendix G.
8.3.2 Alarm log

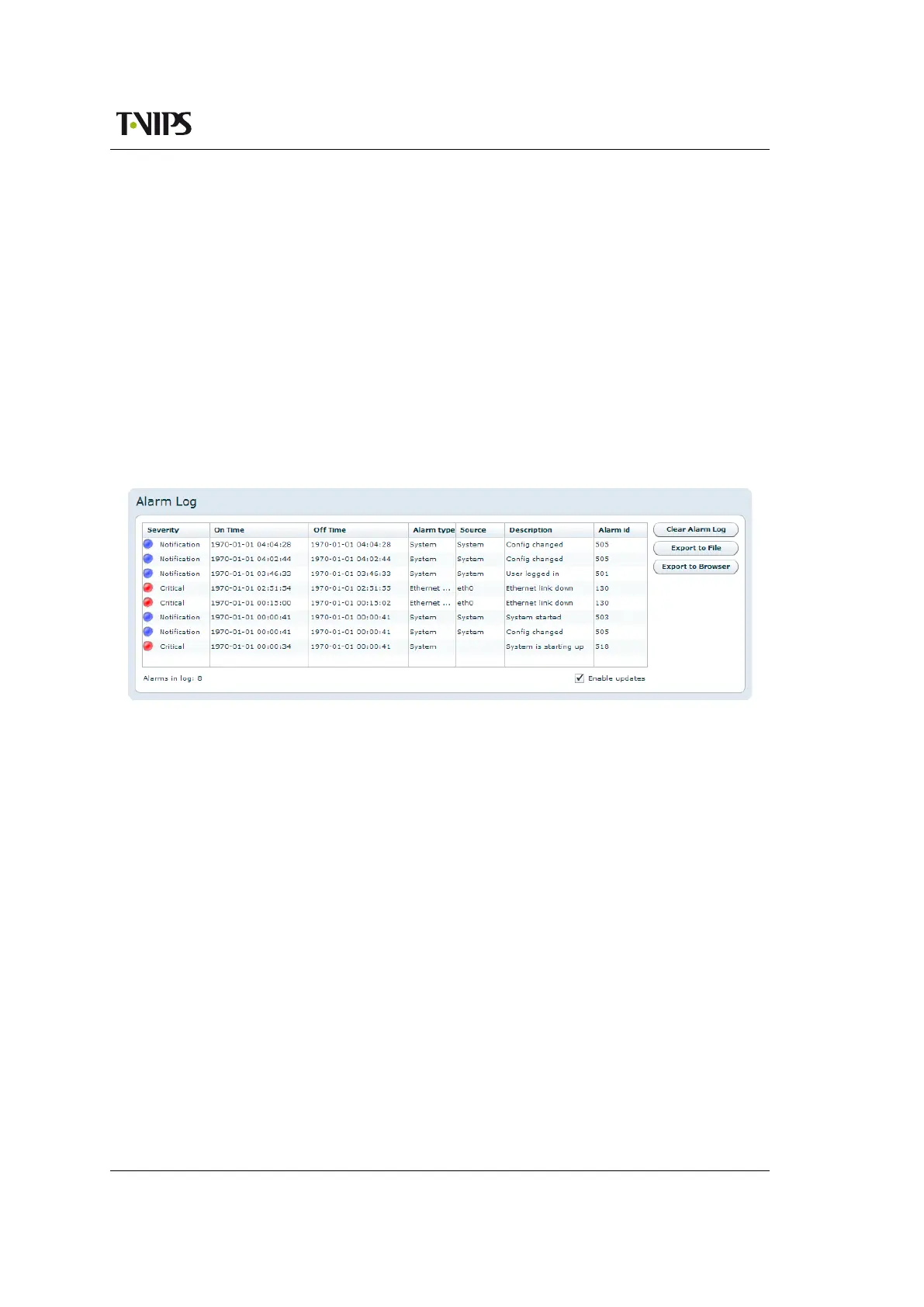

Figure 8.6 Alarm log
The alarm log shows every alarm that has been triggered since the last time the alarm log was
cleared.
The table consists of the same columns as the Current Alarms table, but does not show details
by default. You can change which columns to show, including the details column, in Section
8.4.2.4. Additionally a column named Off Time shows the time the alarm condition was cleared.
Rows will not have the Off Time set if the alarm is still active.
Each row provides additional information via a tool-tip shown when hovering the cursor over
the row. The additional parameters are:
Sequence #
A number identifying this specific alarm instance. This number is incremented each time
an alarm condition is raised.
SubID 1
The primary numerical index of the alarm instance. This index is reserved for future use
and is always set to 1 in the CP560.
SubID 2
The secondary numerical index of the alarm instance. When the alarm is of type Port
