8.6.4.5 Individual addressing configuration

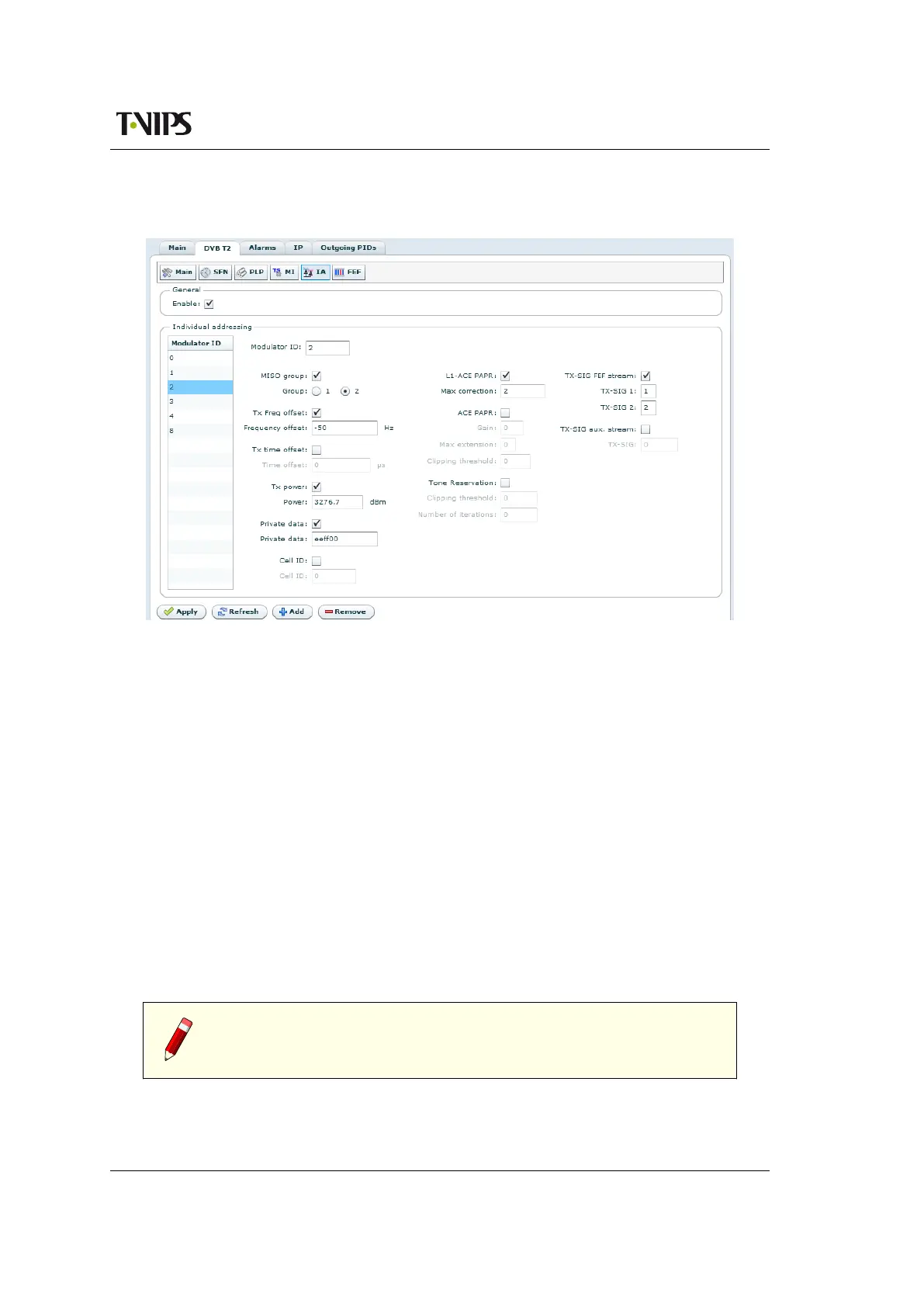

Figure 8.74 Individual Addressing Config
On this page the user can set up sending of Individual Addressing frames 8.6.3 according to
[9]: ETSI EN 102 773 and [5]: DVB mega-frame for SFN synchronisation.
The user is able to select which parameters to send to the individual modulators.
Enable
This check box enables/ disables sending of the Individual Addressing frame.
Adding settings for a modulator is done by first pressing the Add button to add a new modulator.
Every modulator has different settings that are possible to edit. The PAPR parameters (ACE, TR
and L1-ACE) are not mandatory and the user may specify which to send. The values entered for
each of the Individual Addressing parameters are sent without any modifications. See [9]: ETSI
EN 102 773 for further description of the parameters. Each modulator must be configured with
a Modulato/Transmitter Id which matches the Modulator ID in the Indivuidual Addressing
list.
Modulator ID
Unique ID of the modulator to be individually addressed.
Note: Modulator ID “0” is reserved as broadcast, i.e. all modulator will
apply the configuration for Modulator ID “0”.
