132 WEB Interface
CP560 DVB-T2 Gateway User’s Manual Rev. 2.2 (3686) ID: um_t2gateway

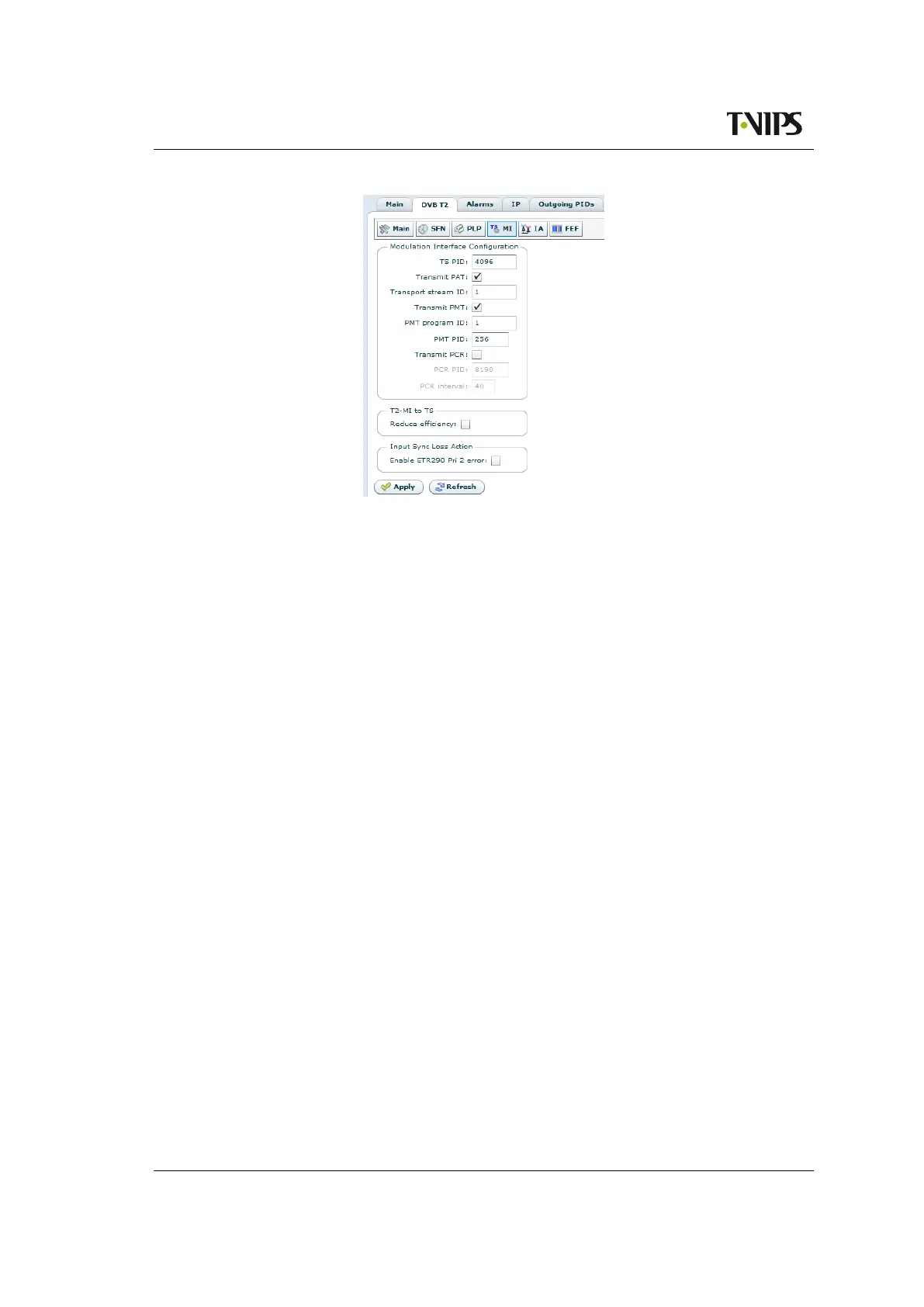

Figure 8.73 DVB-T2 Modulation In-
terface Config
Transport stream ID
This field indicates the Transport Stream (TS) ID that should be transmitted in the PAT.
Transmit PMT
This field defines whether the Program Mapping Table (PMT) should be sent or not.
PMT program ID
This field indicates the program ID carried in the PMT.
PMT PID
This field indicates the PID of the PMT.
Transmit PCR
This field defines whether PCR packets should be inserted into the outer TS layer or not.
PCR PID
This field indicates the PID of the inserted PCR packets
PCR interval
This field indicates the distance between two PCR packets in ms. The maximum value is
40 ms.
Reduce efficiency
Enabling this feature causes the CP560 to not have more than one T2-MI packet in one TS
packet when creating the outer TS layer. This results in more stuffing thus giving a higher
TS output bitrate. This may improve T2-MI seamless switching.
Enable ETR290 Pri 2 error
Enabling this feature causes the CP560 to set the Transport Error Indicator bit of the
outgoing T2-MI PID if any of the PLPs are output without any payload. This could be
used as a trigger for other units later in the chain.
To Next Page
