WEB Interface 135
ID: um_t2gateway CP560 DVB-T2 Gateway User’s Manual Rev. 2.2 (3686)

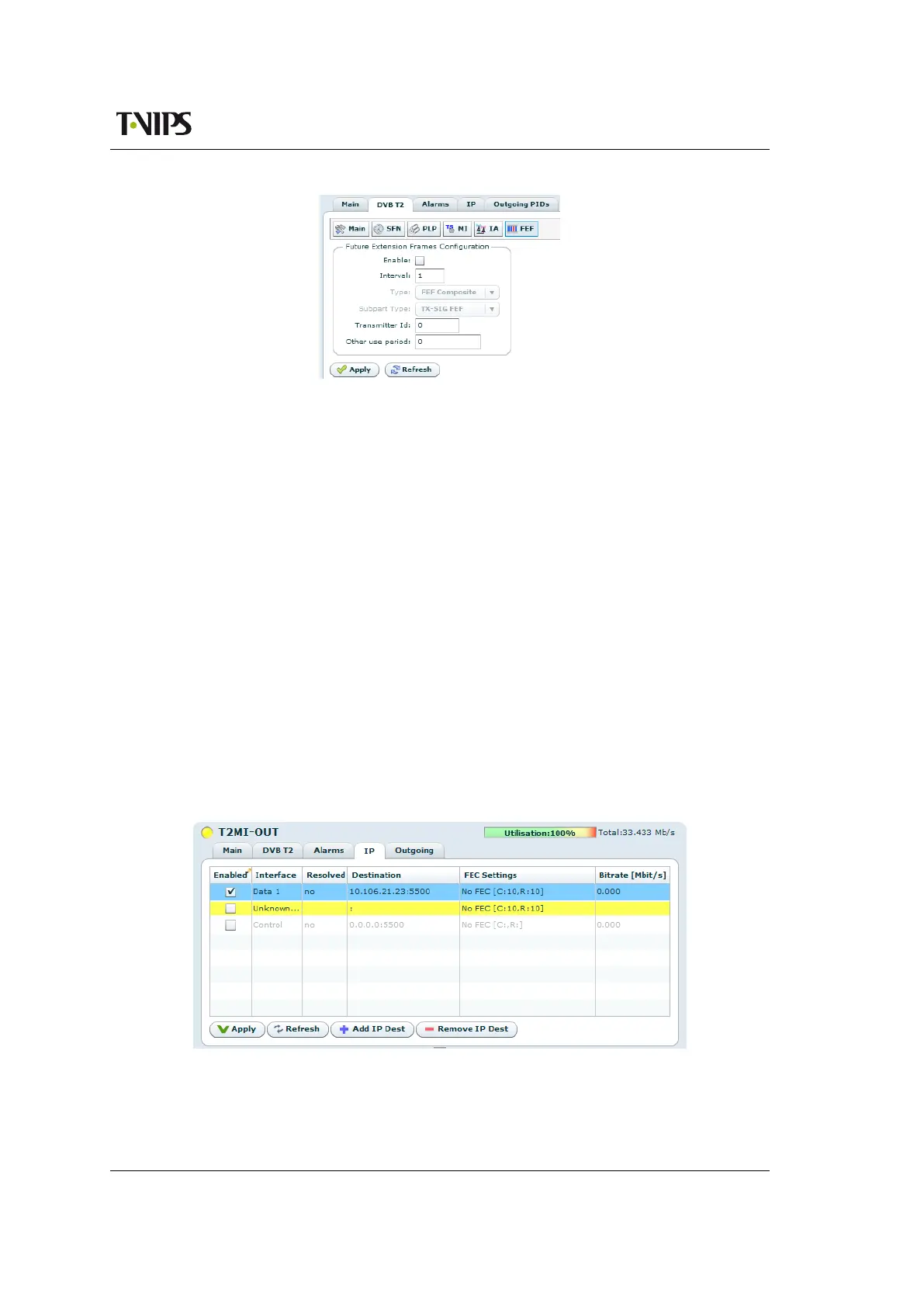

Figure 8.75 Future
Extension Frames Config
number of FEF parts will be inserted. This parameter will be validated against the Num
T2 Frames parameters under the Main settings, section 8.6.4.1.
Type
The CP560 currently only supports FEF Composite part with FEF sub-part of type TX-SIG.
Transmitter Id
Which transmitter Id the FEF part should be valid for. 0 means broadcast, i.e. all trans-
mitters.
Other use period
If desired, the duration of the FEF subpart TX-SIG may be extended by setting the this
field to a value greater than zero. The unit is in Elementary Periods, T. See [10]: DVB
Document A150 for further details.
8.6.5 IP
This page provides an overview of the current IP output interfaces, enables adding new inter-
faces and removing existing interfaces. Each output may be individually enabled or disabled
by checking or unchecking the appropriate Enable box.
Figure 8.76 IP output interface overview.
To add a new IP interface click the Add IP Dest button and click Apply. This creates a new entry
in the table. To configure the parameters of the new entry, or edit parameters of an existing
