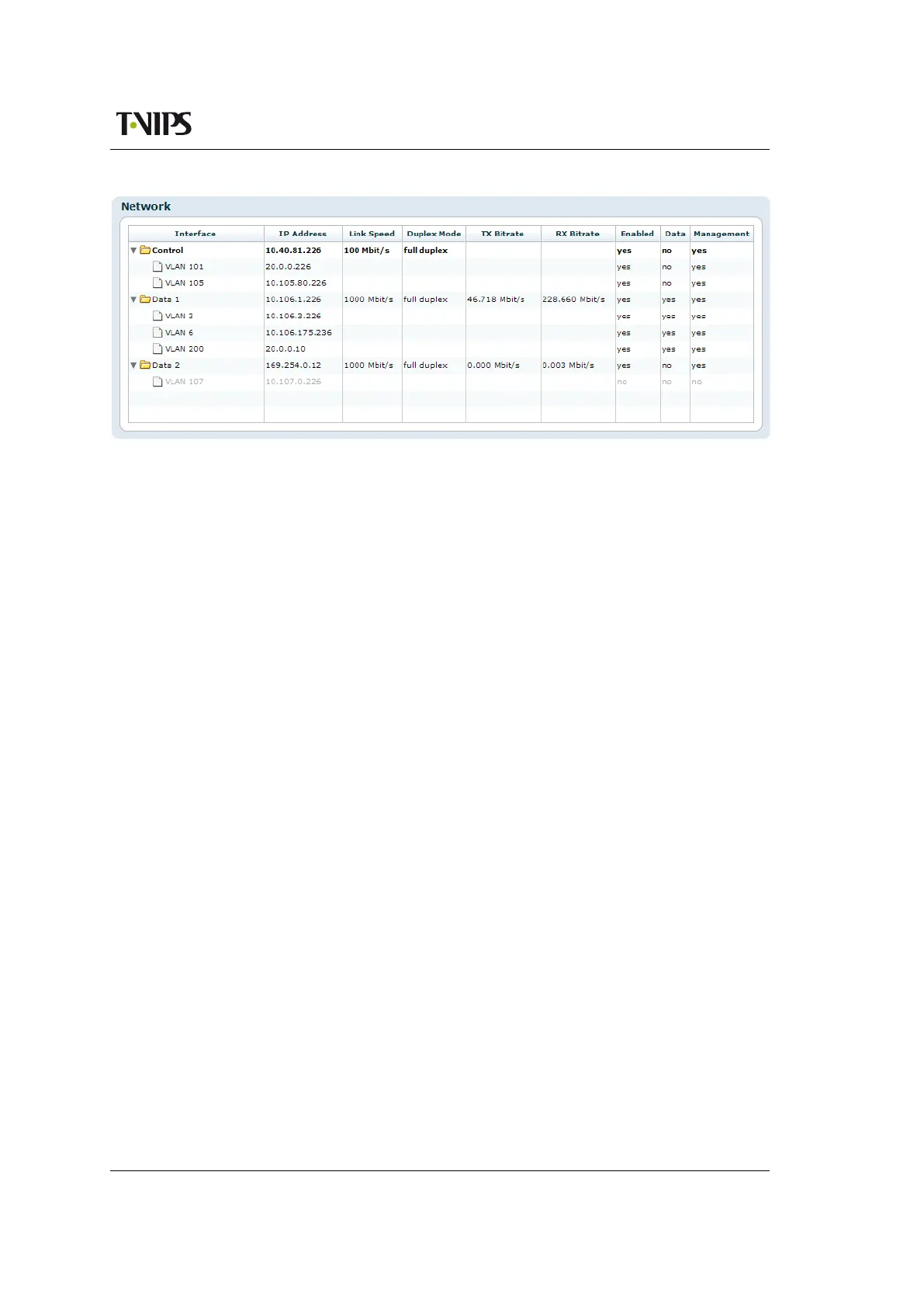

Figure 8.15 Network status
in this table as the availability of each interface may vary with the installed software licences
and operational mode.
Interface
A label identifying the interface. If it is a physical interface with virtual interfaces at-
tached to it an arrow is shown. Clicking this arrow will expand/collapse the list of virtual
interfaces.
IP Address
The IP address configured for this interface.
Link Speed
The current link speed detected for this interface. Applicable to physical interfaces only.
Duplex Mode
The duplex mode detected for this interface, half or full duplex. Applicable to physical
interfaces only.
TX Bitrate
The bitrate currently transmitted through this interface. Applicable to physical interfaces
only.
RX Bitrate
The bitrate currently received through this interface. Applicable to physical interfaces
only.
Enabled
Shows whether the interface is currently enabled.
Data
Shows whether data traffic is currently enabled for this interface.
Management
Shows whether management traffic is currently enabled for this interface.
