WEB Interface 59
ID: um_t2gateway CP560 DVB-T2 Gateway User’s Manual Rev. 2.2 (3686)

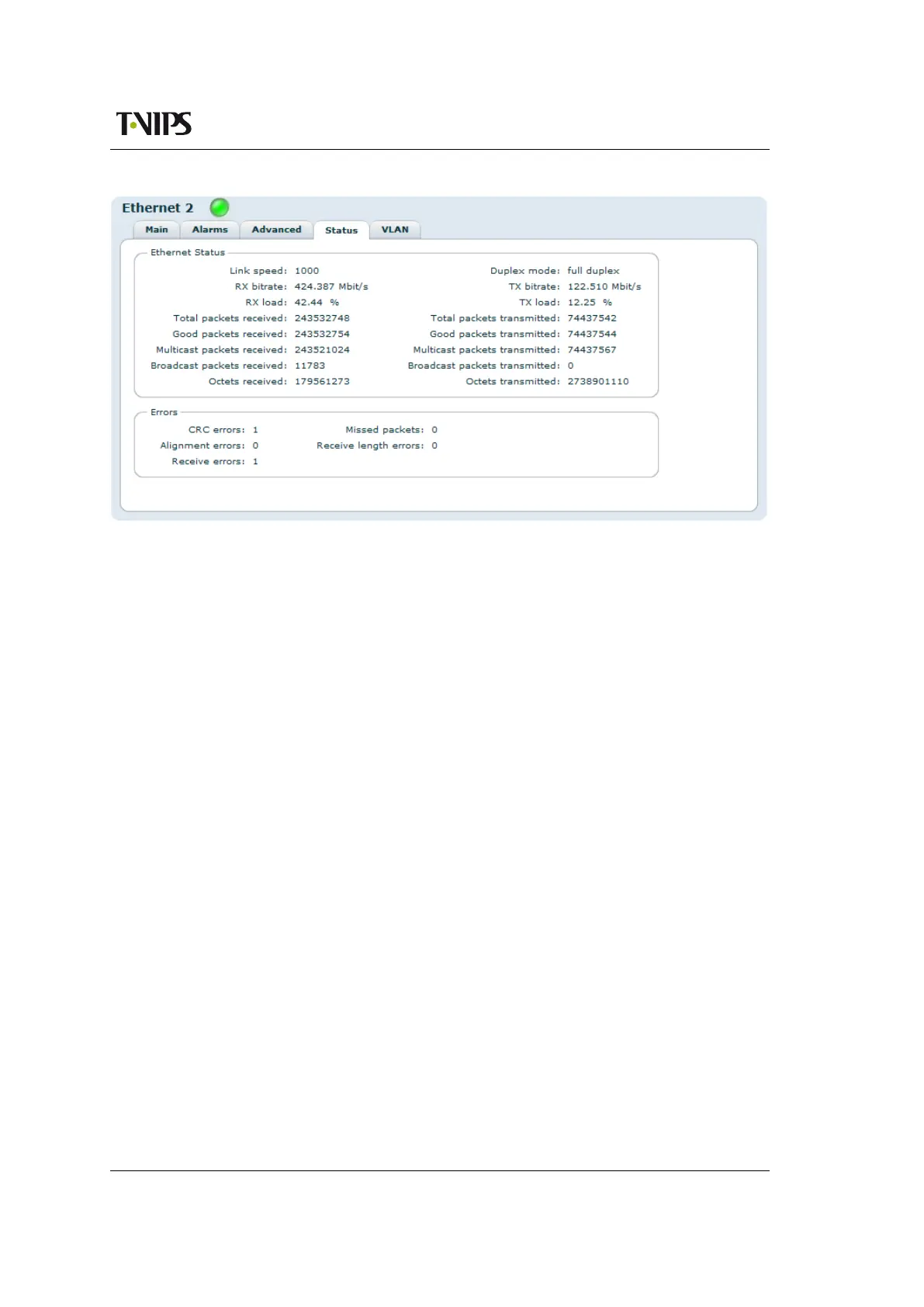

Figure 8.19 Interface Status
Duplex mode
The detected current duplex mode of the interface. The duplex mode indicates whether
data may flow in one direction (half duplex) or bidirectionally (full duplex).
The following parameters are available for both received and transmitted packets:
bitrate
The total bitrate received/transmitted.
load
Interface load, measured relative to max speed.
Total packets
The total number of IP packets received/transmitted.
Good packets
The number of IP packets received/transmitted containing valid CRCs.
Multicast packets
The number of IP multicast packets received/transmitted by the interface.
Broadcast packets
The number of broadcast packets received/transmitted.
Octets
The number of octets received/transmitted
The Errors field:
CRC errors
Number of packets received with CRC errors.
