TDS5000 Series User Manual
2-7

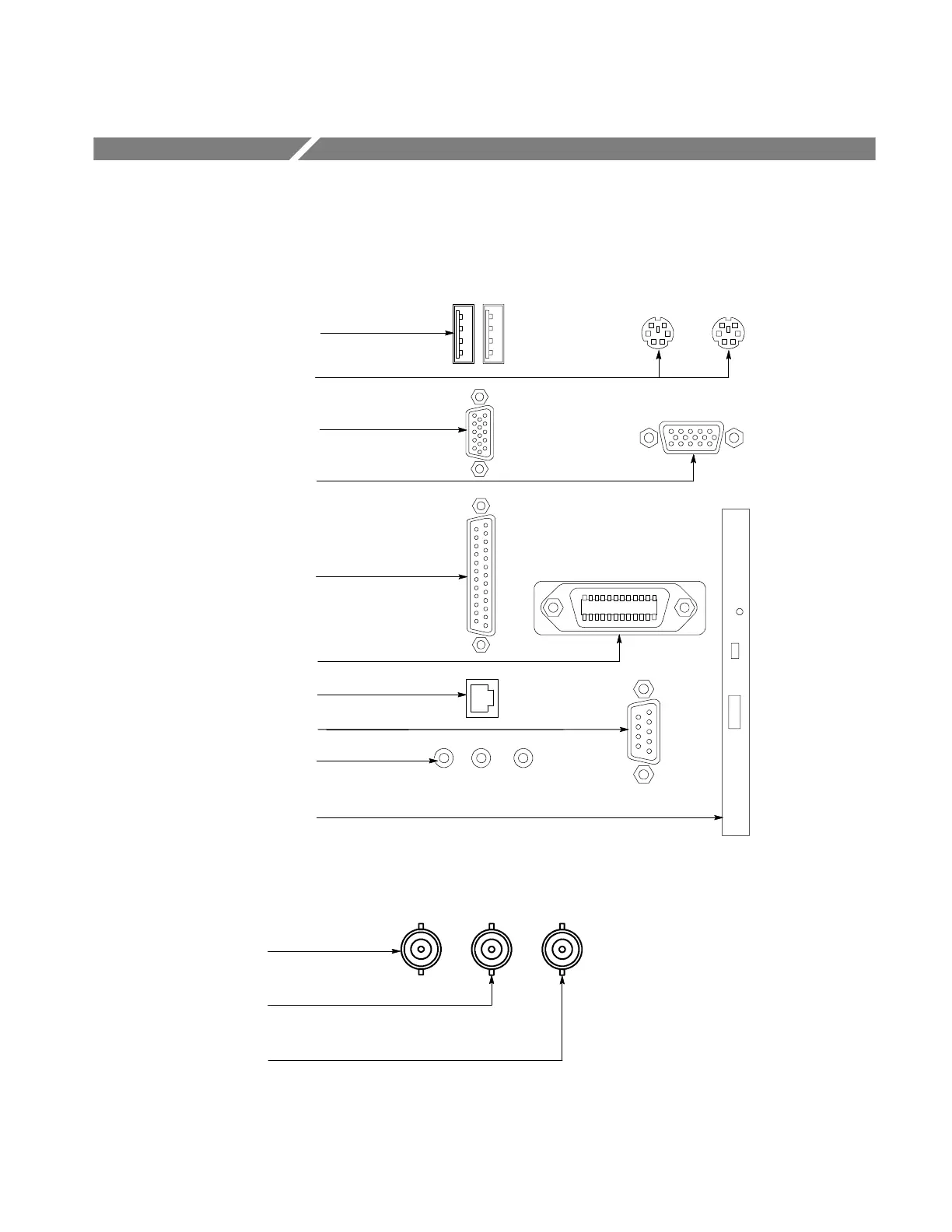

Side and Rear Panel I/O & Connectors Map
Left Side
RJ-45 connector to connect to network
USB connectors for mouse,
keyboard, or other USB devices
COM1 serial port
Upper VGA port to connect a
monitor for side-by-side display
Lower VGA port to connect a
monitor for oscilloscope display
PS-2 connectors for mouse and keyboard
Parallel port (Centronics) to
connect printer or other device
GPIB port to connect to controller
Connectors for line out, line in, and
microphone in
CD-ROM
(Right Side)
Rear
Time base reference input
(EXT REF)
Auxiliary output
(AUX OUT)
CH3 signal output (T DS5054
and 5104) (SIGNAL OUT)
To Next Page
