Installation
1-8
TDS5000 Series User Manual
Table 1- 2: Additional accessory connection information (Cont.)
Item Description
Rackmount For installat ion information, refer to the instructions that came
with your rackmount kit.
Other Refer to the Readme file on the TDS5000 Series Product
Software CD for possible additional accessory installation
information not covered in this manual.
Powering On the Oscilloscope
Follow these steps to power on the oscilloscope for the first time.
CAUTION. To ensure proper operation, connect the keyboard, mouse, and other
accessories before applying pow er to the product the first time.
1. Connect the one end of the oscilloscope power cord to the oscilloscope, and
the other end to a power source.
2. If you have connected an external monitor, connect the monitor power cord
to a power source and power on the monitor.
3. Push the On/Standby switch to power on the oscilloscope (see Figure 1--2 for
the switch location).
On/Standby
Switch

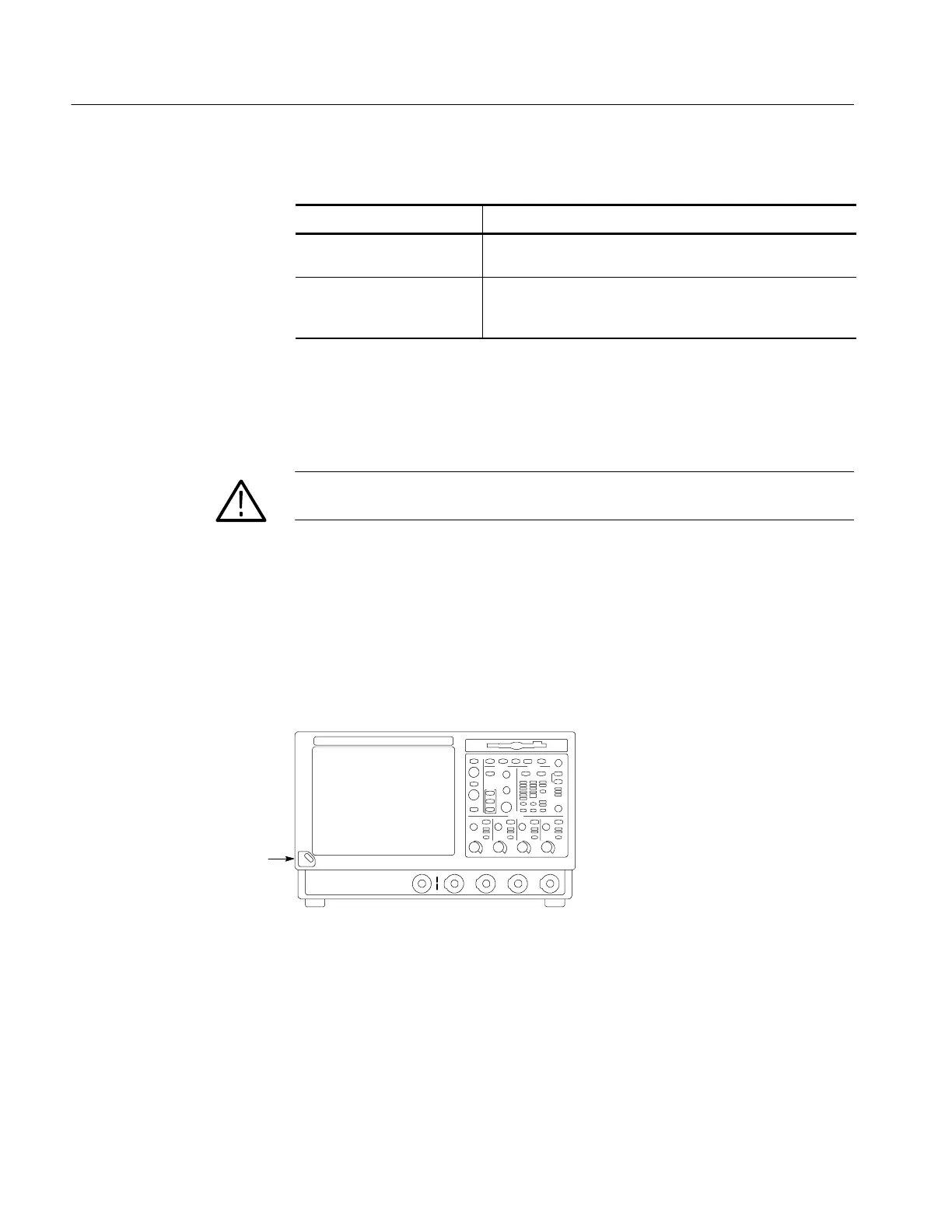

Figure 1- 2: On/Standby switch location
