Use the procedure that follows to recall a waveform to a reference. You can only

recall waveforms into references.

NOTE. Reference waveforms cannot be recalled because they are already resident

on the oscilloscope. However, you can copy a reference waveform to another

reference: first display the reference to be copied, and then use the Saving a

Waveform procedure (page 3--190) to save it to another reference (Ref1-Ref4).

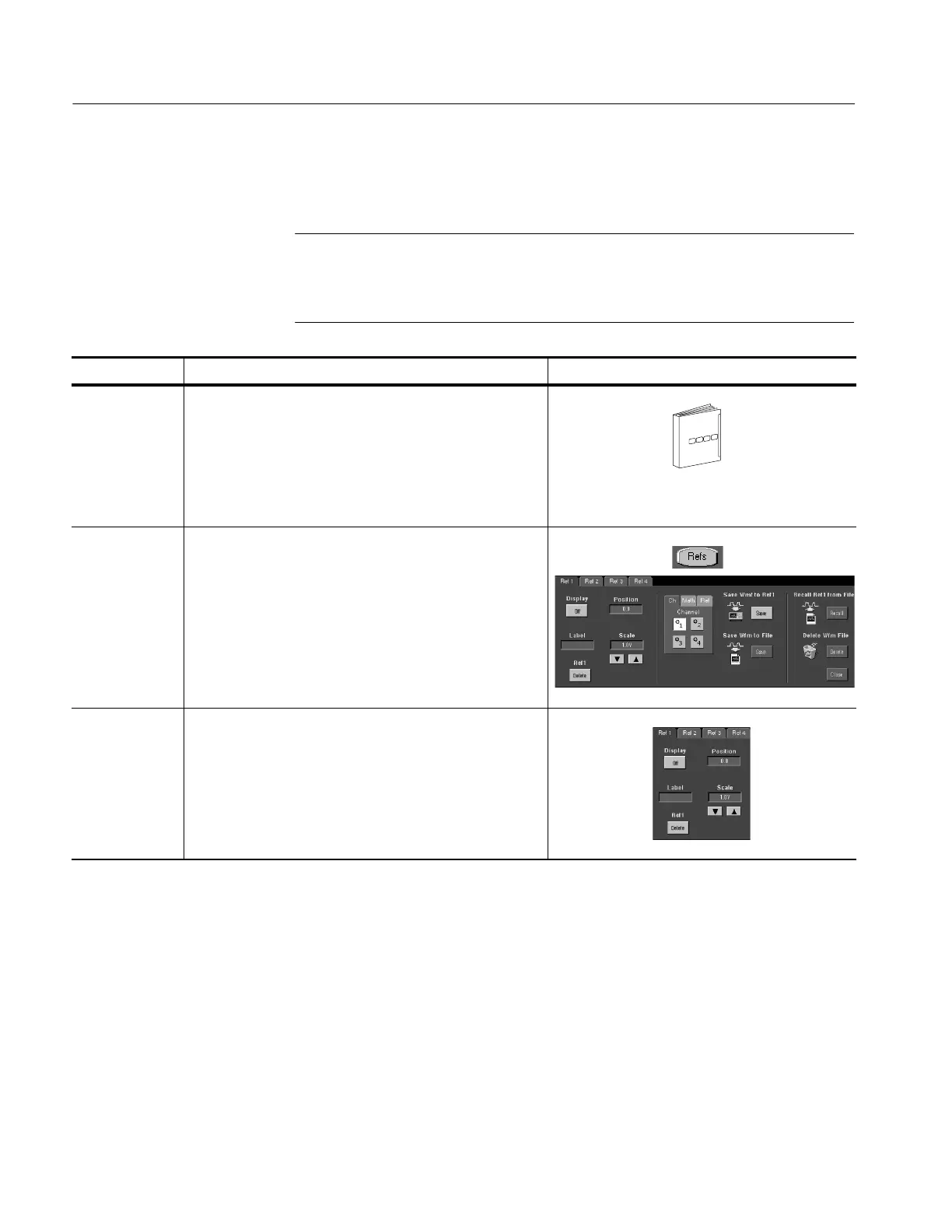

Overview To recall a waveform Control elements and resources

Prerequisites

1. The oscilloscope must be powered up. You must have

access to a waveform saved by the oscilloscope.

See Powering On the Oscilloscope on page

1--8, and Saving a Waveform on page 3--190

Display the

Reference

Setup control

window

2. From the toolbar, cli ck Refs and select the tab of the

reference into which you want to recall the waveform.

Recall the

waveform

3. If recalling an internal reference, click Display to toggle

the display of the reference waveform on.

Recalling A Waveform
