Data Input and Output

TDS5000 Series User Manual

3- 193

Overview Control elements and resourcesTo recall a waveform

Recall a

reference

waveform

from a file

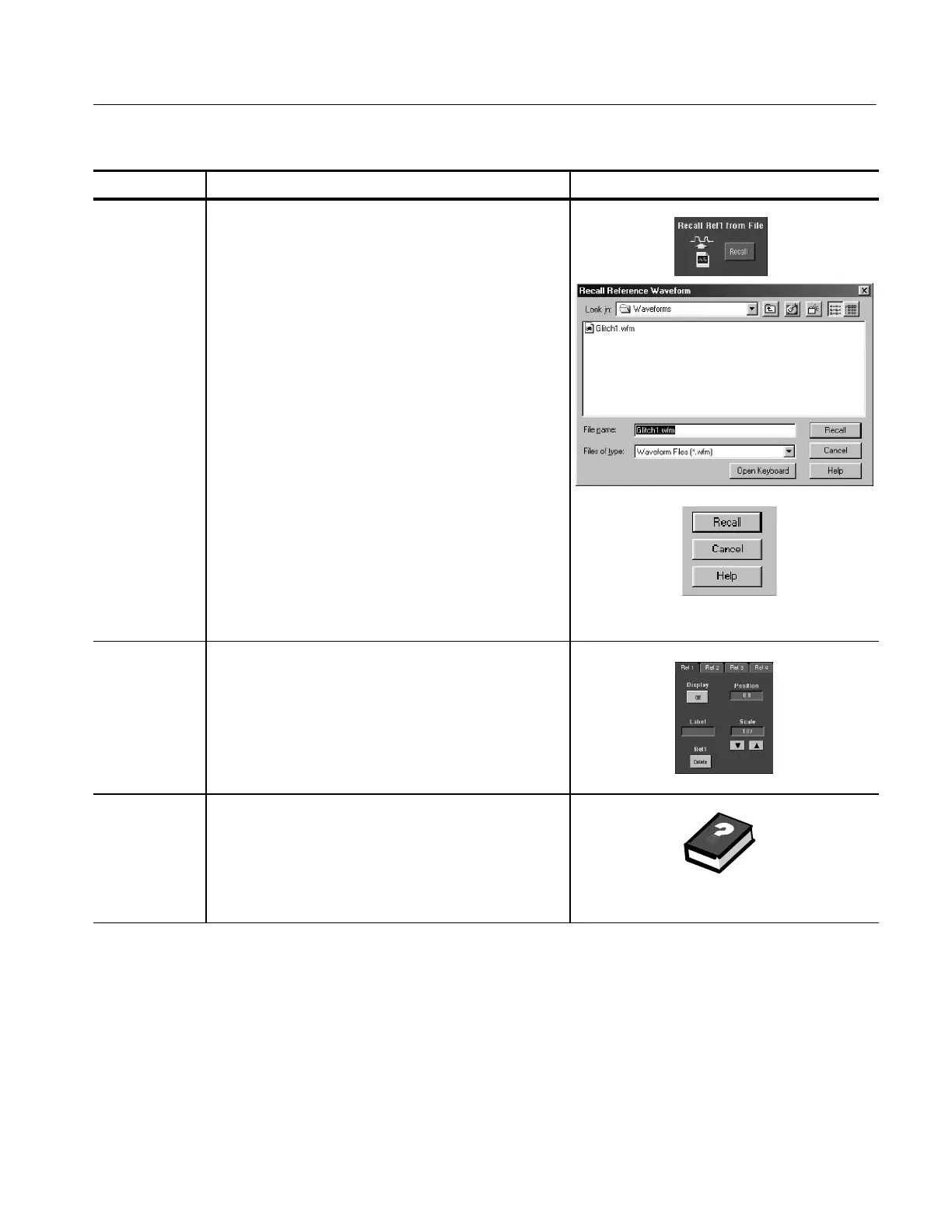

4. Click Recall Refx from File Recall to open the Recall

Reference Waveform dialog box.

5. Use the Look in: drop-down list and buttons to navigate

to the directory which contains the waveform that you

want to recall. Select your wavef orm file by either

clicking an existing name in the f ile list, or clicking in the

File name field and typing a new name.

Tip. If you do not have an attached keyboard, click on

Open Keyboard to display a virtual keyboard.

Click the Recall button to recall the waveform. To cancel

without recalling a waveform, click Cancel.

Display the

reference

waveform

6. Click Display to toggle the display of the reference

waveform on.

For further

assistance

7. For more help on recalling waveforms, access the

online help.

See page 3--209 to learn about using online help.
