Installation
TDS5000 Series User Manual
1-7
CAUTION. To avoid product damage, shut down the oscilloscope and disconnect
the power cord from the power source before connecting any accessories. A USB
mouse, keyboard, or other USB device can be connected or disconnected with
the power on. See Shutting Down the Oscilloscope on page 1--9.
Mouse
Keyboard
Ethernet
Centronics Printer
GPIB
Scope VGA Output
USB
PC SVGA Output
RS-232
Audio line out
Audio line in
Microphone in
Timebase reference input
(EXT REF)
Trigger signal output
(AUX OUT)
CH 3 signal outpuT
(SIGNAL OUT)
USB*
*These connectors are on later model insturments only.

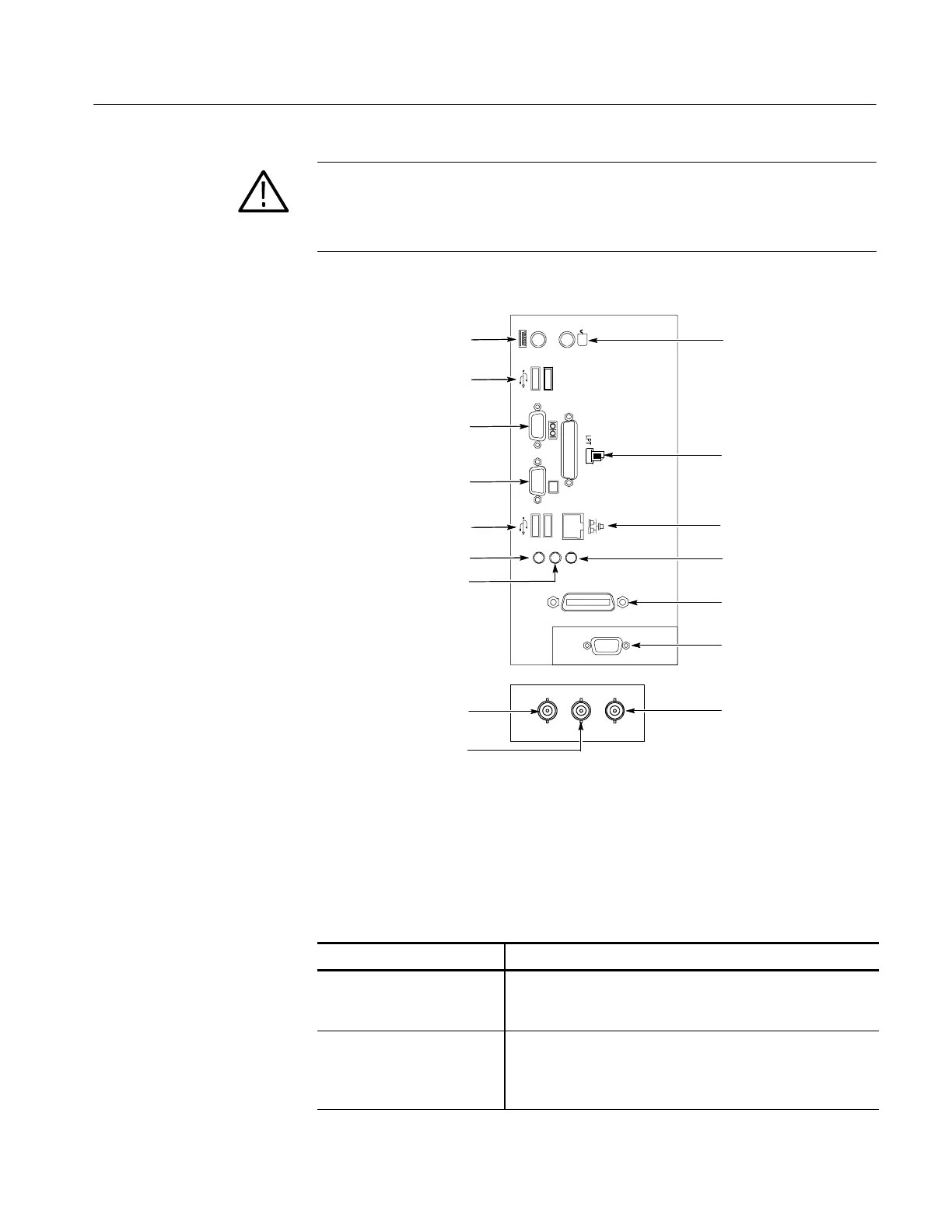

Figure 1- 1: Locations of connectors on side and r ear panels
Table 1- 2: Additional accessory connection information
Item Description
Monitor If you use a nonstandard monitor, you may need to change the
Windows 2000 display settings to achieve t he proper resolution
for your monitor.
Printer Connect an external printer to the Centronics parallel port
connector directly. If your printer has a DB-25 connector, use
the adapter cable that came wi th your printer. For information
on printer usage, see Printing Waveforms on page 3--205.
