Creating and Using Math Waveforms

3- 174

TDS5000 Series User Manual

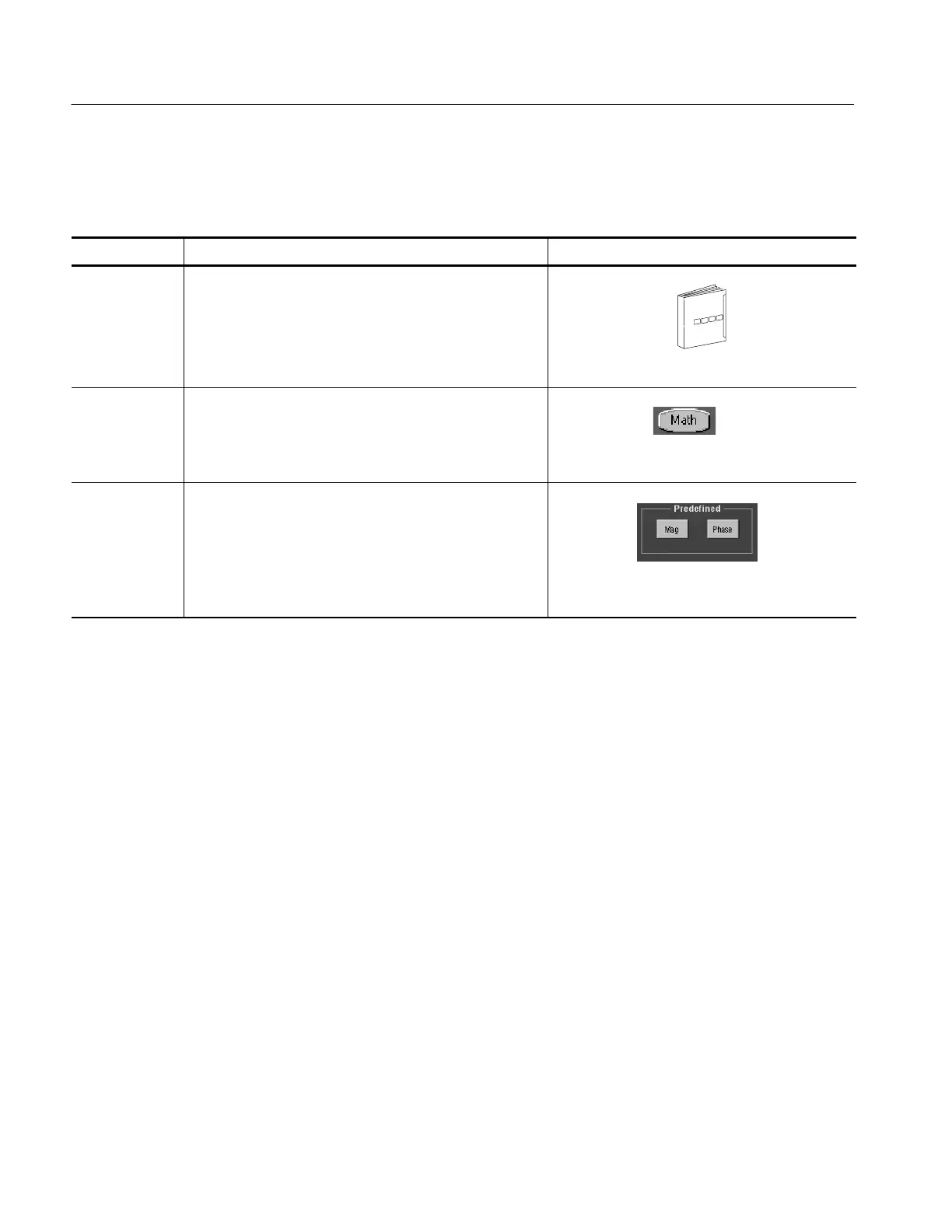

Use the procedure that follows to define the current waveform as a spectral

magnitude waveform or a spectral phase waveform.

Overview To select a predefined spectral math function Control elements and resources

Prerequisites

1. The source that you want to use must be available.

Spectral waveforms are created from live waveforms;

you cannot create a spectral waveform from math or

reference waveforms.

See page page 3--25 for acquisition setup

Open the Math

Setup control

window

2. From the toolbar, cli ck Math button to open the Math

Setup control window.

Select a

predefined

spectral

analysis m ath

function

3. Select the Mathn tab for the waveform that you want to

create and click Predefined Mag or Phase to select

magnitude or phase spectral analysis. The waveform

display is activated.

Selecting a Predefined

Spectral Math Function

(Optional)
