Data Input and Output

3- 202

TDS5000 Series User Manual

Overview Control elements and resourcesTo use exported waveforms

For further

assistance

9. For more help on e

porting w

veforms, tou

hthe

Help button in the window to access contextual online

help.

See page 3--209 to learn about accessing online help.

Use this procedure to copy waveforms, images, or measurements to the Windows

clipboard.

Overview To copy data Control elements and resources

Prerequisites

1. Make sure the waveform, image, or measurement to be

copied exists; that is, your source must be a channel, an

active math waveform, an active reference, and so on.

H See Powering On the O scilloscope on page

1--8.

H See page 3--25 for acquisition setup.

H See page 3--49 for trigger setup.

Select format

for copy

Select setup

for copy

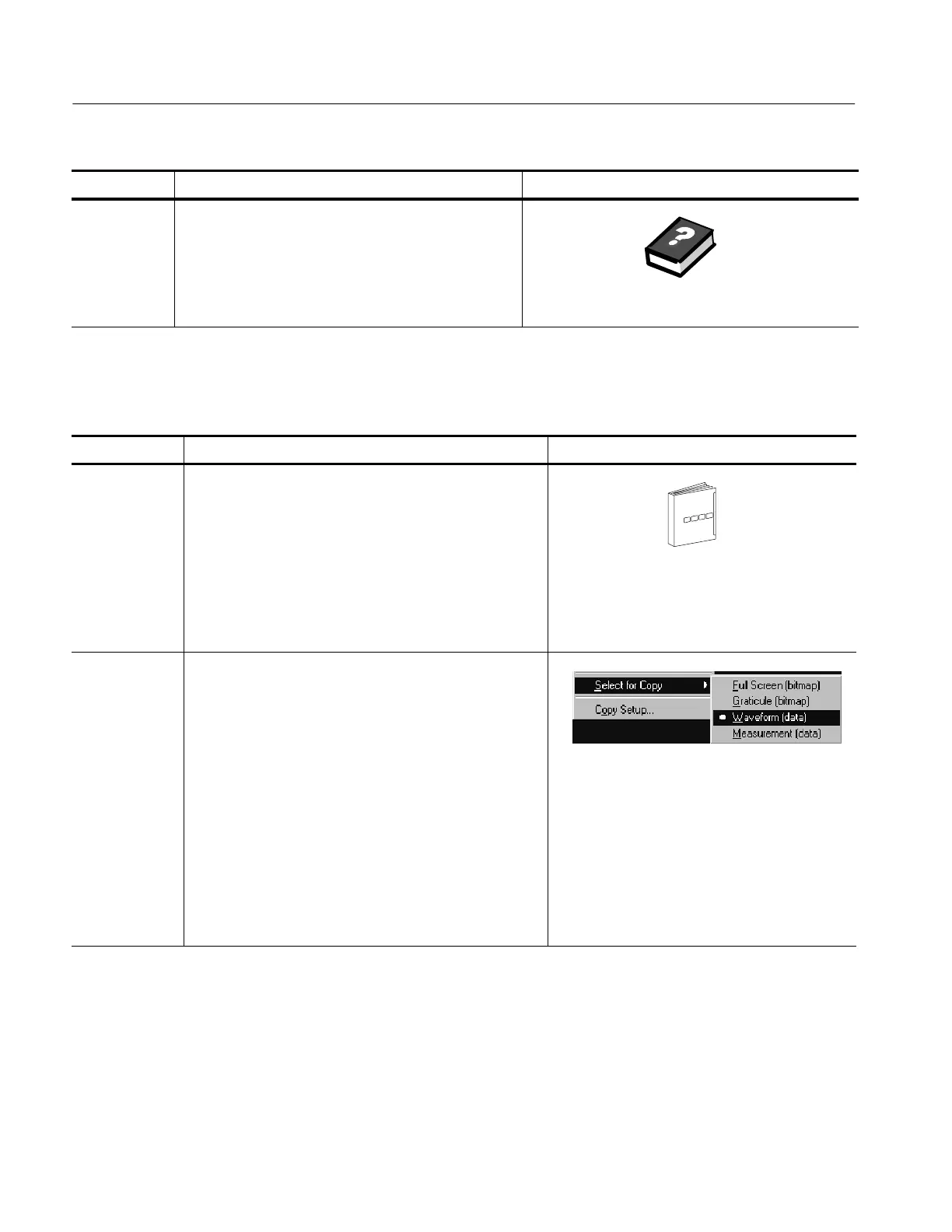

2. Highlight the Select for Copy submenu on the Edit

menu. The submenu lists all available waveform, image,

and measurement types available for export:

H Full Screen exports a bitmap of all screen contents

H Graticul e exports a bitmap of only the graticule

area

H Waveform exports waveform data

H Measurements exports measurement data

3. Sel ect Copy Setup from the Edit menu to open the

Copy Setup control window.

Copying Wavef orm Data
