Triggering
3-70
TDS5000 Series User Manual

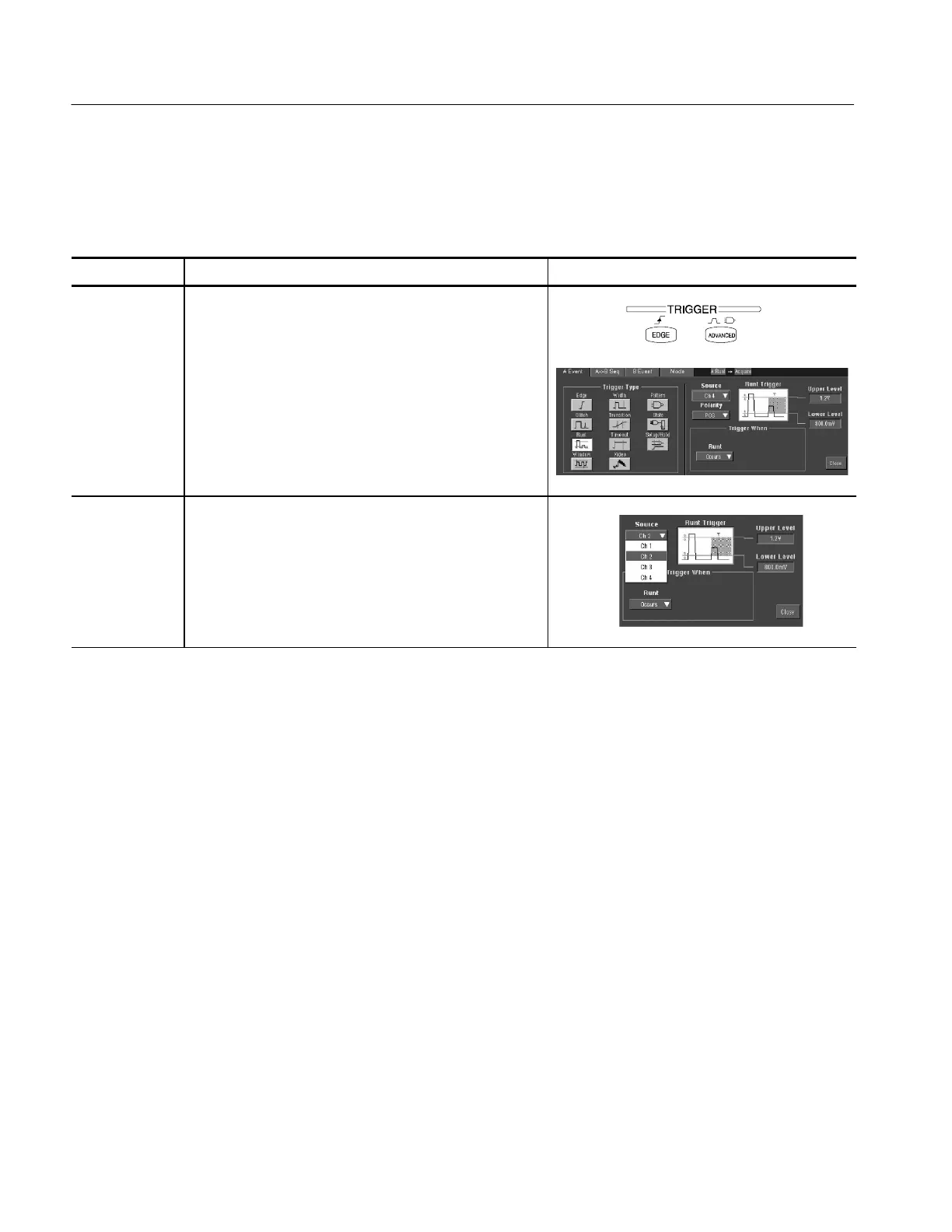

Use this procedure to detect and trigger on a runt pulse. The oscilloscope can
look for positive or negative runt pulses. These pulses can also be qualified by
time or by the logical state of other channels. - -
Overview To trigger on a runt pulse Control elements and resources
Select runt
triggering
1. Push the front-panel ADVANCED button.
2. On the Trigger Setup control window, select the A Event
tab.
3. Click Runt.
Select the
source
4. To specify which channel becomes the pulse t rigger
source, click Source and select the source from the list.
Triggering on a Runt Pulse
