Measuring Waveforms
TDS5000 Series User Manual
3- 133

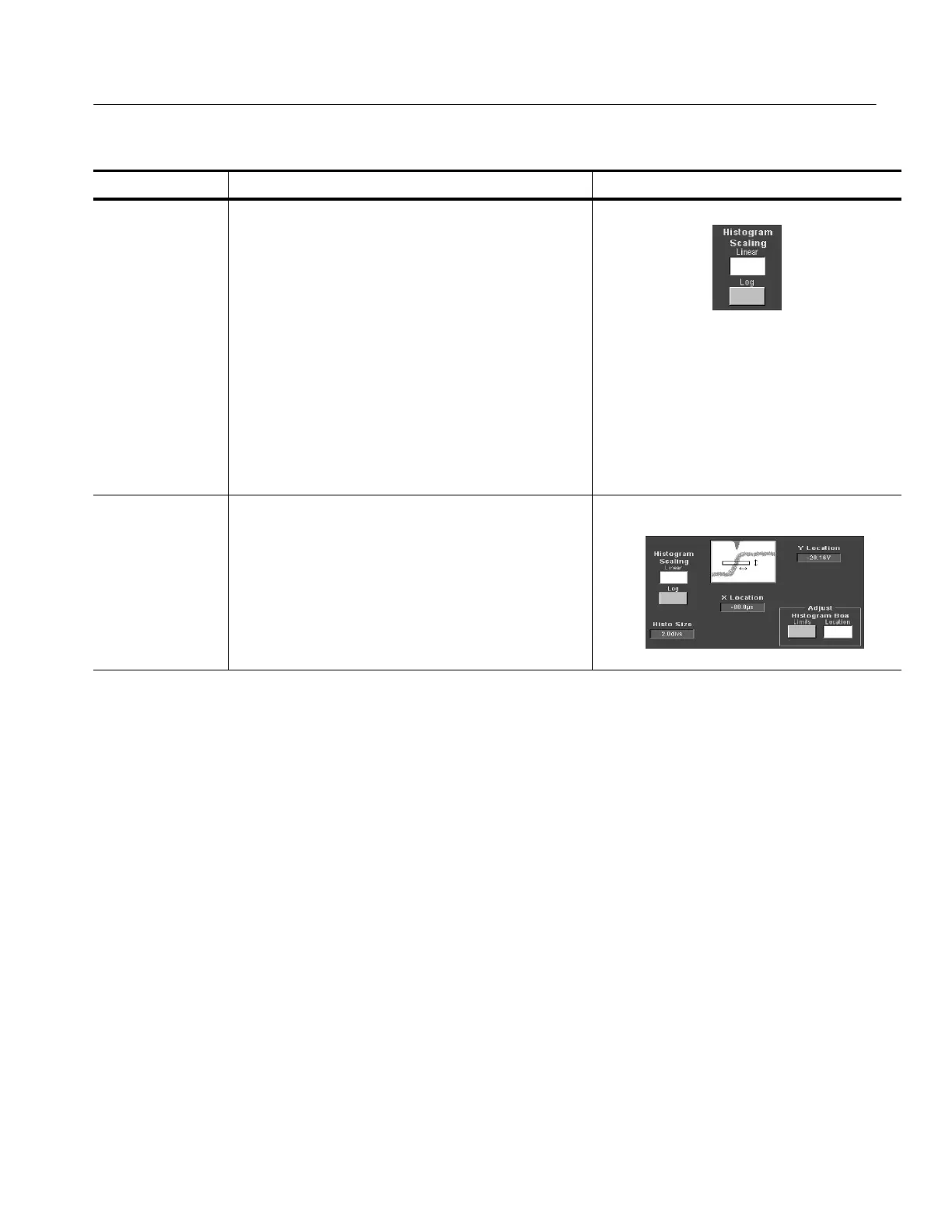

Overview Control elements and resourcesTo start and reset histogram counting
Select histogram
scale
6. Click a Histogram Scaling option:
H Linear displays histogram data linearly. Bin counts
smaller than the maximum counts are scaled
linearly by dividing the bin count by the maximum
bin count.
Horizontal histograms have a maximum of 500 bins
while vertical histograms have a maximum of 200
bins.
H Log displays histogram data logarithmically. Bin
counts smaller than the maximum counts are
scaled logarithmically. Logarithmic scaling provides
better visual details for bins with low counts.
Set histogram
limit s
7. Click Adjust Histogram Box Limits and use the Top
Limit, Bottom Limit, Left Limit, and Right Limit controls
to set the size of the histogram box. The histogram box
selects the section of the waveform used for histograms.
8. Click Adjust Histogram Box Location and use the X
Location and Y Location controls t o set the location of
the histogram box.
Table B--1 on page B--1 includes a list of the available histogram measurements
and a brief description of each.
Histogram
Measurements
To Next Page
