Tektronix TG8000 Service Manual

HD3G7 module replaceable parts list
Table 11-9: HD3
G7 module main board – replaceable parts
Fig. &
index
number
Tektronix
part number
Serial no.
effective
Serial no.
discont'd Qty Name & description
11-6-1 159-5022-00 3
FUSE; 5.0 A, 125 V; FAST BLOW, 0.1 X 0.1 X 0.24, UL REG, CSA CERT; 451005,
SAFETY CONTROLLED
-2 159-0463-00 2
FUSE; SMD: 2 A, 32 V, FAST ACTING, 0.024 OHM, 0603 SIZE, UL/CSA REG,
SAFETY CONTROLLED, TAPE & REEL, 5000 PCS, PB FREE
-3 131-8270-00 3
CONN, EDGECARD, PCB, STRAIGHT, FEMALE, SOCKET, 2X20, 40 POS, HIGH
SPEED, 0.8 MM PITCH, 0.062 BOARD, SMT, SAMTEC MEC8-120-02-L-D-DV
-A - K

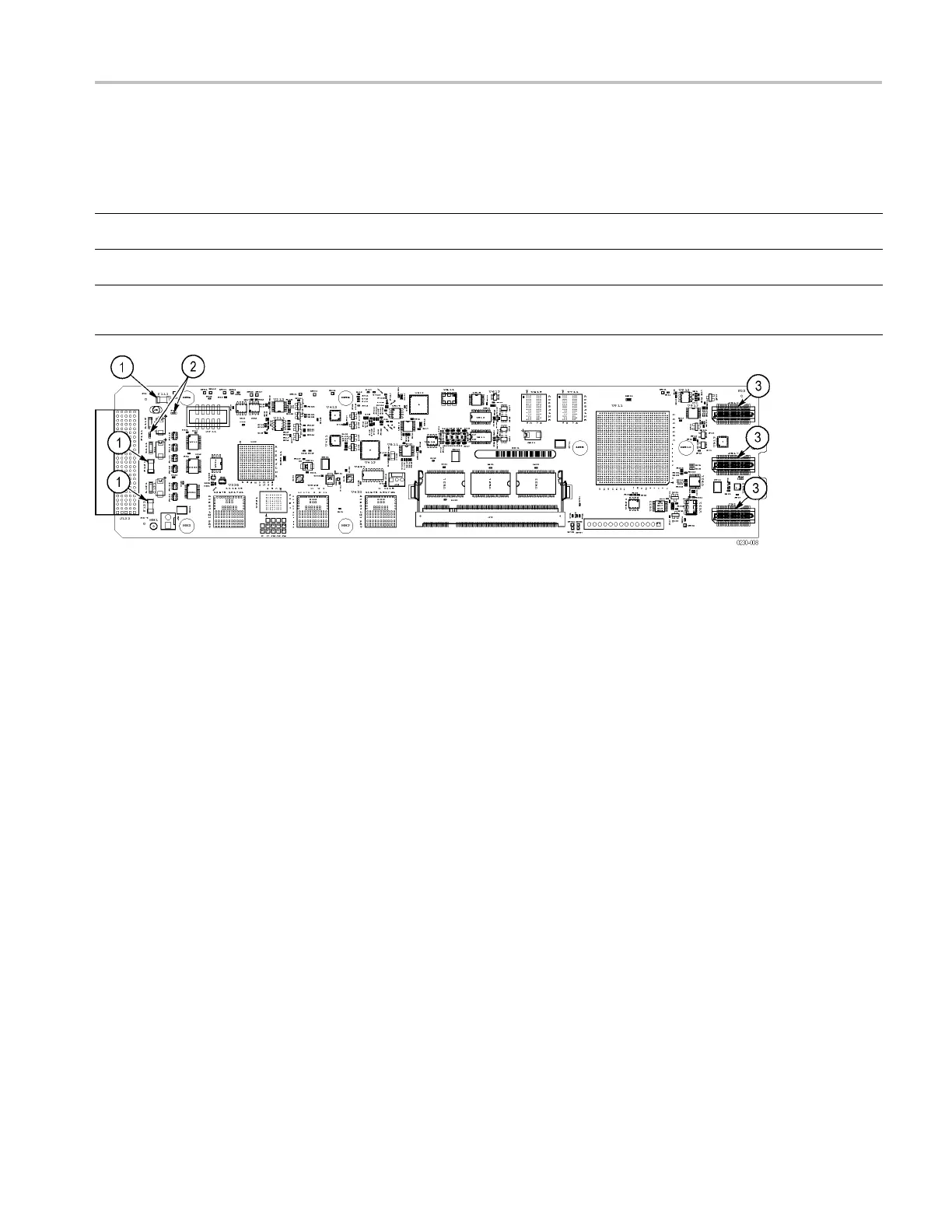

Figure 11-6: HD3G7 module main board – replaceable parts
TG8000 Multiformat Test Signal Generator Service Manual 11–27
