HYDRAULICS
8G-44
INSTALLATION
1. Position the deck valve on the mounting surface.
2. Install two mounting screws and lock washers
(Figure 8G-1).
3. Remove the plugs and, using the tags created
during removal, connect the hydraulic hoses to the
valve fittings (Figure 8G-3).
4. Replace the hydraulic filter.
5. Start the engine and check valve operation. Check
for leaks and repair as necessary.
6. Pivot the seat and seat platform to the lower posi-
tion for normal operation. Latch into position.

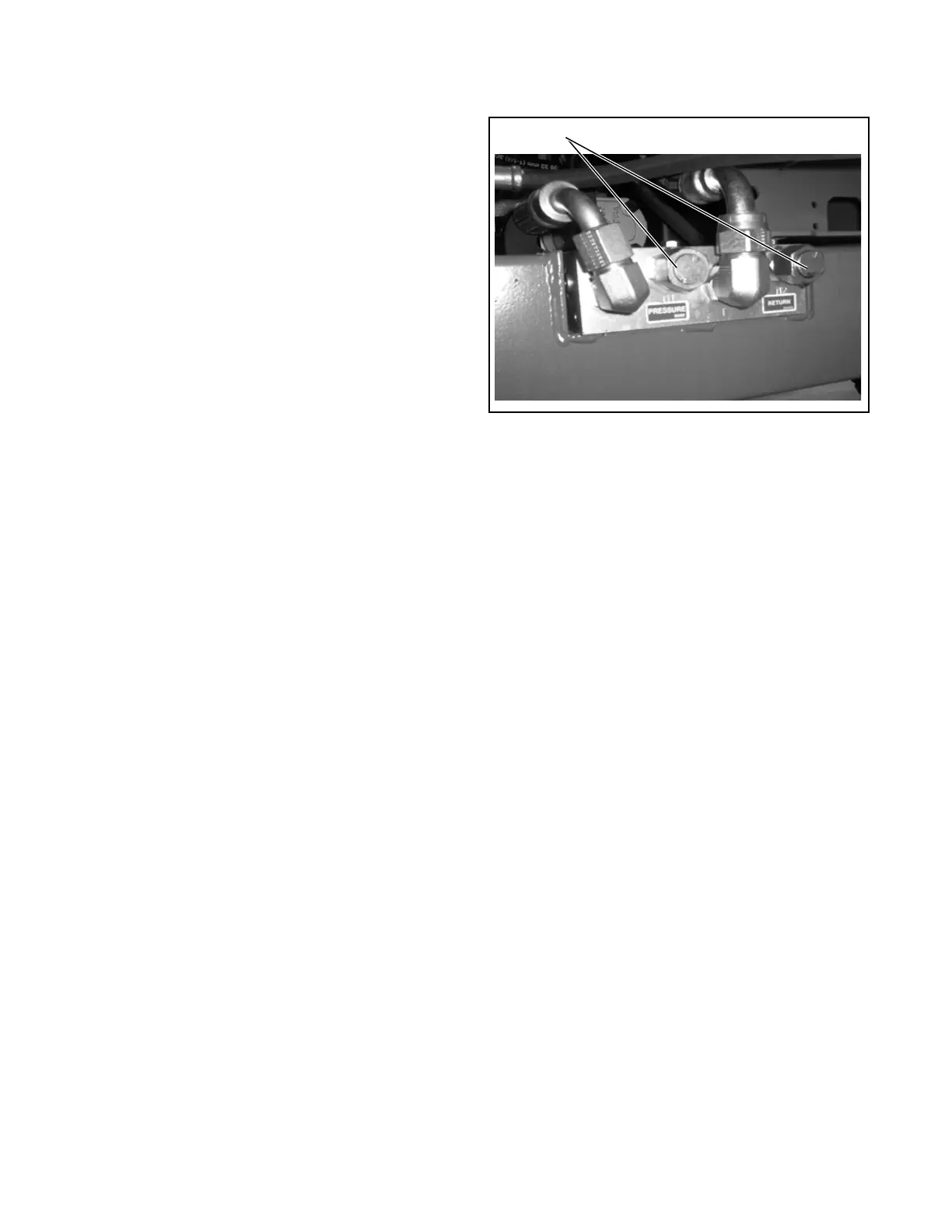

Figure 8G-3. Deck Hose Connections
Deck Hose Connections
