HYDRAULICS
8M-70
Deck Valve Test
11.Leave flow meter connected as in the implement
pump test (Figure 8M-16).
12.Make sure blocking disc is removed from the tee
fitting on the flow meter (Figure 8M-15).
13.Disconnect the pressure hose from the deck
motor (M1 port on deck valve), insert a blocking
disc, and reconnect the hose (Figure 8M-16).

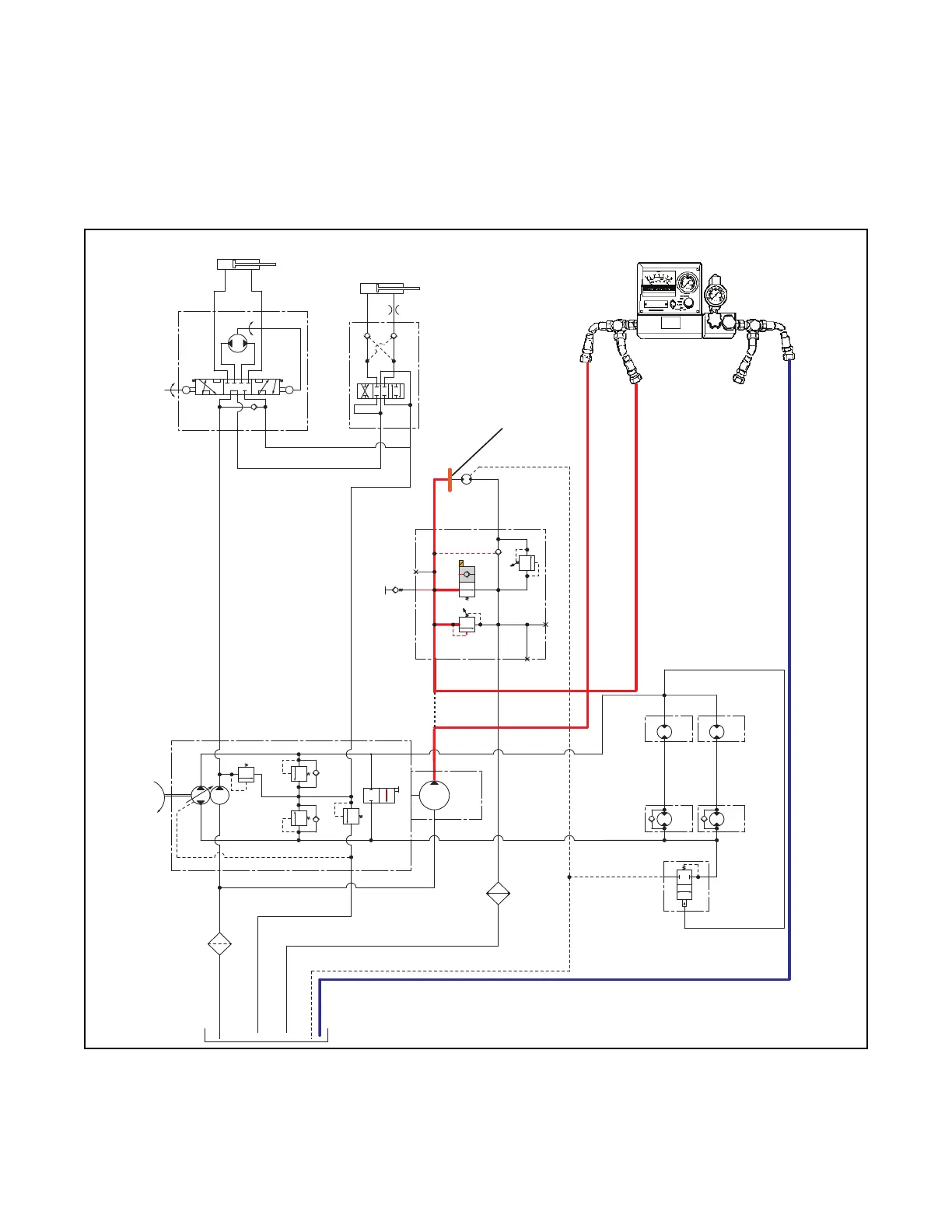

Figure 8M-16. Deck Valve Test
1.01 ci
3625 psi
915 psi
3625 psi
58 psi
1.35 ci
.425 ci
3100
RPM
A
IN
OUT
Case Drain
B
Gear
Pump
10
Micron
Steering
Valve
In Aux Out
P
P
PLT
T
T
C
C
G
G
M1 M2
RT LT
6.6 ci
3200 psi
300
psi
1.27 ci
11.9 ci
8.6 ci 8.6 ci
11.9 ci
RF
Wheel
Motor
RR
Wheel
Motor
Hot Oil
Shuttle
LF
Wheel
Motor
LR
Wheel
Motor
Deck
Valve
Oil
Filter
Oil
Cooler
Steering
Cylinder
In
AB
Out
.070
Lift
Valve
Lift
Cylinder
Deck Valve Test
IN
OUT
Cap
Line
Install
Blocking
Disc
To Next Page
