ELECTRICAL SYSTEM
10G-15

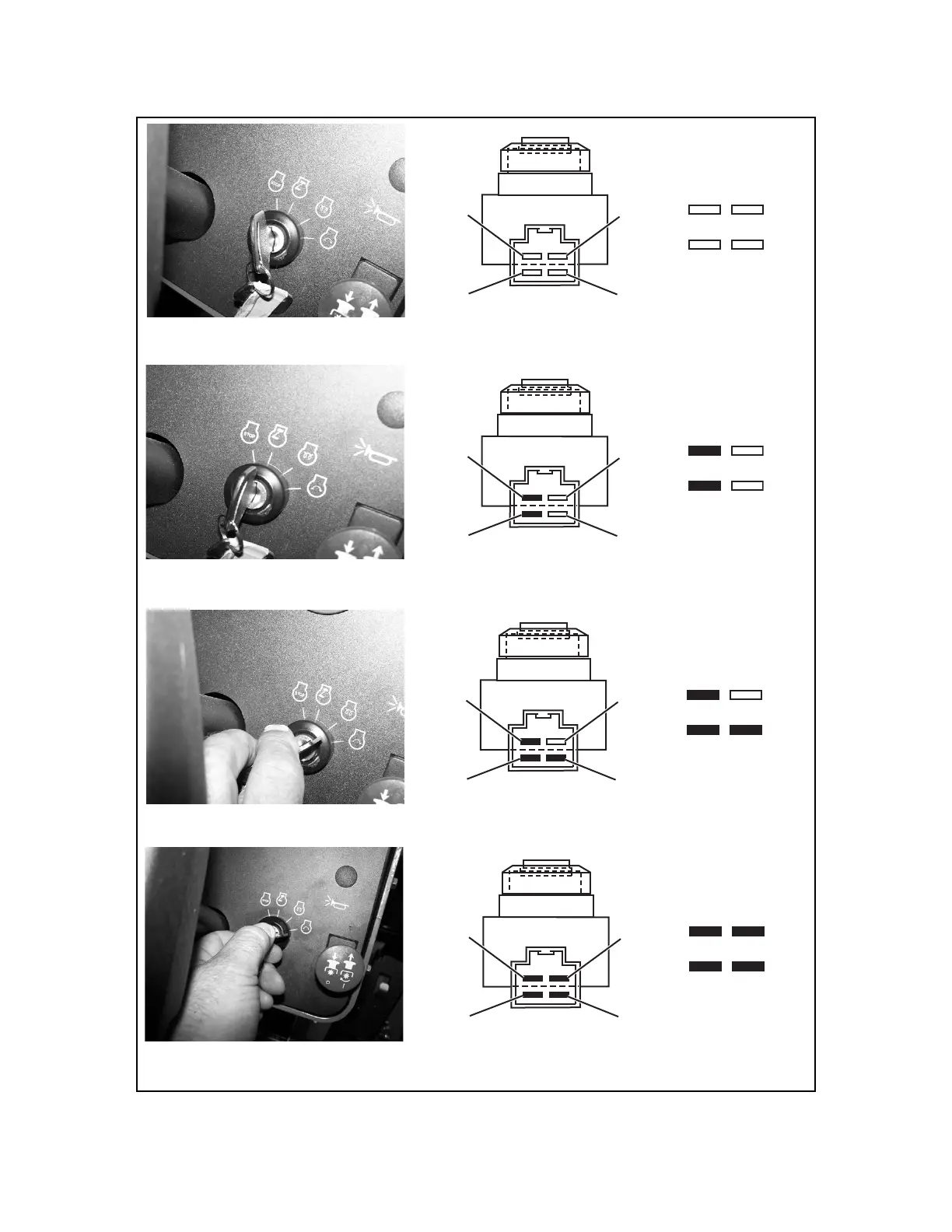

Figure 10G-3. Ignition Switch Positions
Step 5a. Ignition Switch in OFF Position (0)
Step 5c. Ignition Switch in GLOW PLUG Position (2)
Step 5d. Ignition Switch in START Position (3)
Step 5b. Ignition Switch in RUN Position (1)
30 50
AC 19
No Continuity Between
Contacts.
B - 30
1 - AC
S - 50
GP - 19
30 50
AC 19
Continuity Between
Contacts 30 and AC.
B - 30
1 - AC
S - 50
GP - 19
30 50
AC 19
Continuity Between
Contacts 30, AC, and 19.
B - 30
1 - AC
S - 50
GP - 19
30 50
AC 19
Continuity Between
Contacts 30, AC, 19, and 50.
B - 30
1 - AC
S - 50
GP - 19
