BRAKE SYSTEM
5C-7
5. Adjust the parking brake as needed.
6. Lift the tractor and remove the jack stands.
Adjustment
1. Check the brake pedal free travel (Figure 5C-4).
The pedal free travel should be approximately
0.75 - 1.5 in (19 - 38 mm).

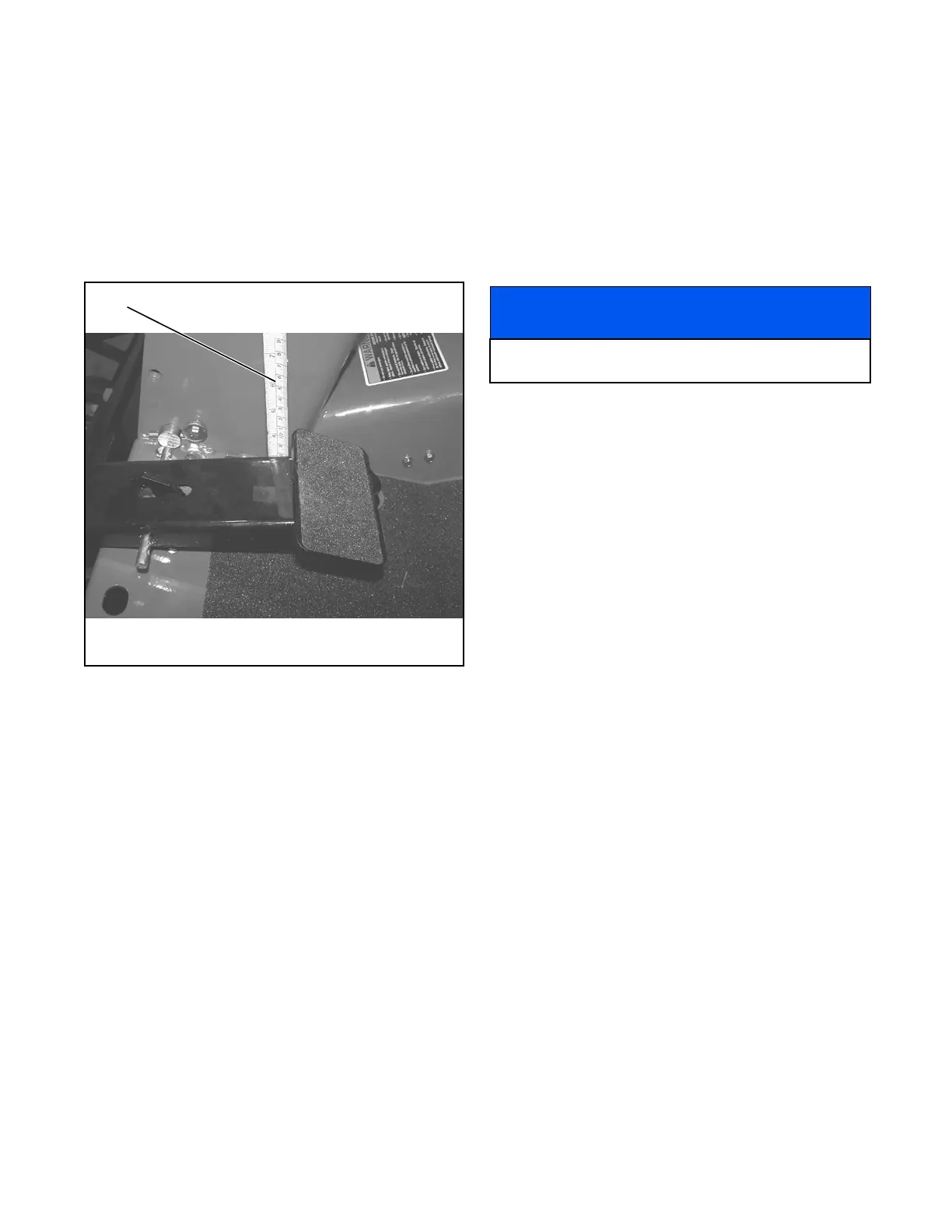

Figure 5C-4. Parking Brake Free Travel
2. Use a tape measure to gauge the free travel
movement.
3. Use the rod end coupling nut to adjust the free
travel and actuating lever position.
4. Repeat the procedure for the other side.
5. See Chapter 2 to check the brake switch opera-
tion.
Measuring
Tape
Brake Pedal Horizontal
Free Travel 0.75in - 1.5in
NOTICE
Brake rods must be adjusted for equal braking on left
and right sides.
