5-38 4252490-Rev A
HYDROSTATIC POWER TRAIN
5

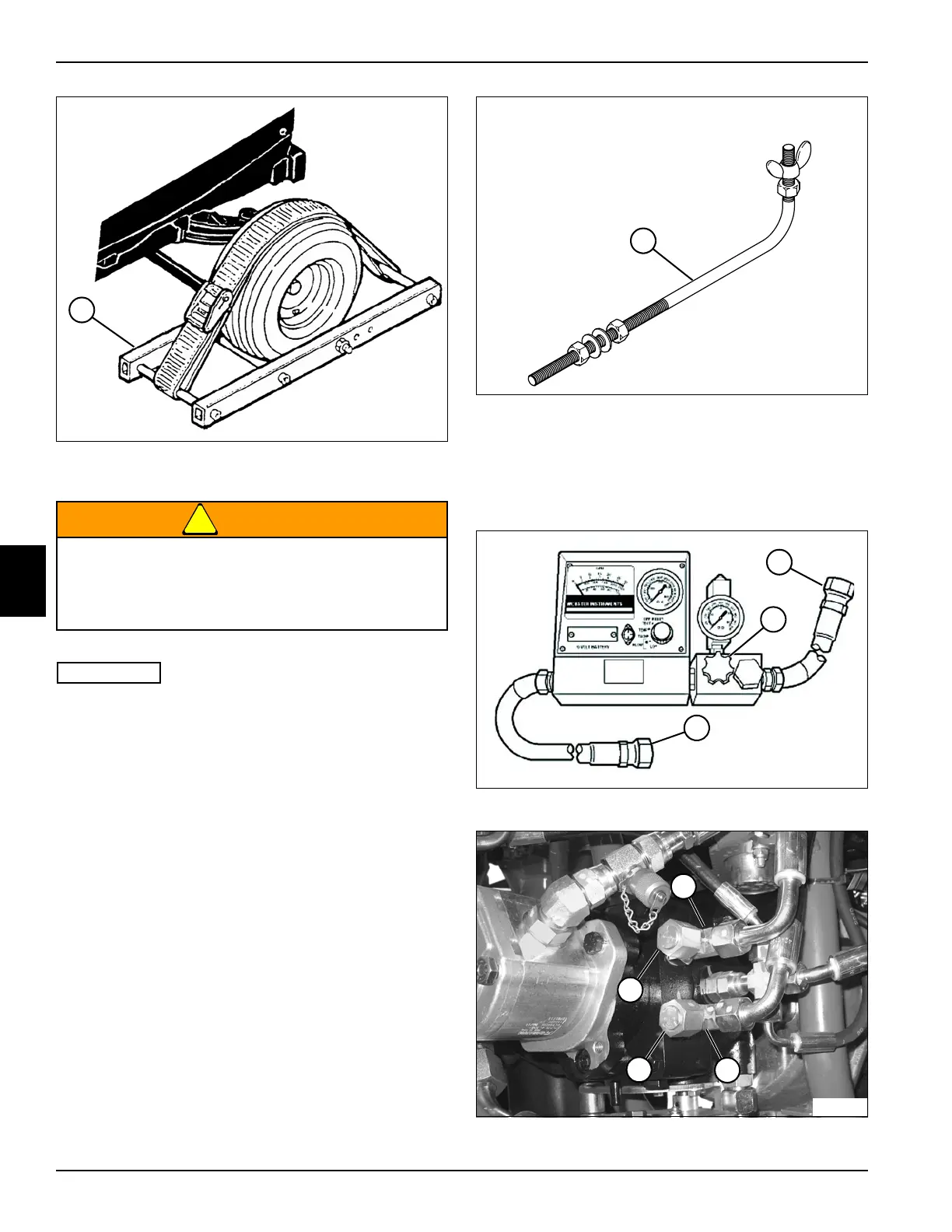

Figure 5-24
3. Install wheel restraints (1) to both front wheels.
!
WARNING
IMPORTANT
For 3WD models, it is important to lift and support
the rear of the machine, or the machine will move.
4. For 3WD models, lift the machine so that the rear
wheel is off the ground. Support the machine with
jackstands.
5. Disconnect traction pump control cable from pump
control arm.
Figure 5-25
6. Install flow lock tool (2) and secure to pump control
arm.
7. Close tow valve completely by turning clockwise.
8. For 3WD models, proceed to step 15.
Figure 5-26
Figure 5-27: Traction Pump Fittings—2WD Models
Prevent personal injury. Use properly rated lifting
devices. Always be sure load is balanced before
lifting.
Support the machine properly using jackstands.
TN1761
1
2
TN3947
5
TN1359
4
3
TN3920
7
6
9
8
