HYDROSTATIC POWER TRAIN
4252490-Rev A 5-39
5
9. Disconnect cap (9) from tee fitting (6).
10. Connect test hose (5) of flow meter inlet to tee fitting
(6).
11. Disconnect cap (8) from tee fitting (7).
12. Connect test hose (3) of flow meter outlet to tee
fitting (7).
13. Open flow meter valve (4) completely before starting
engine.

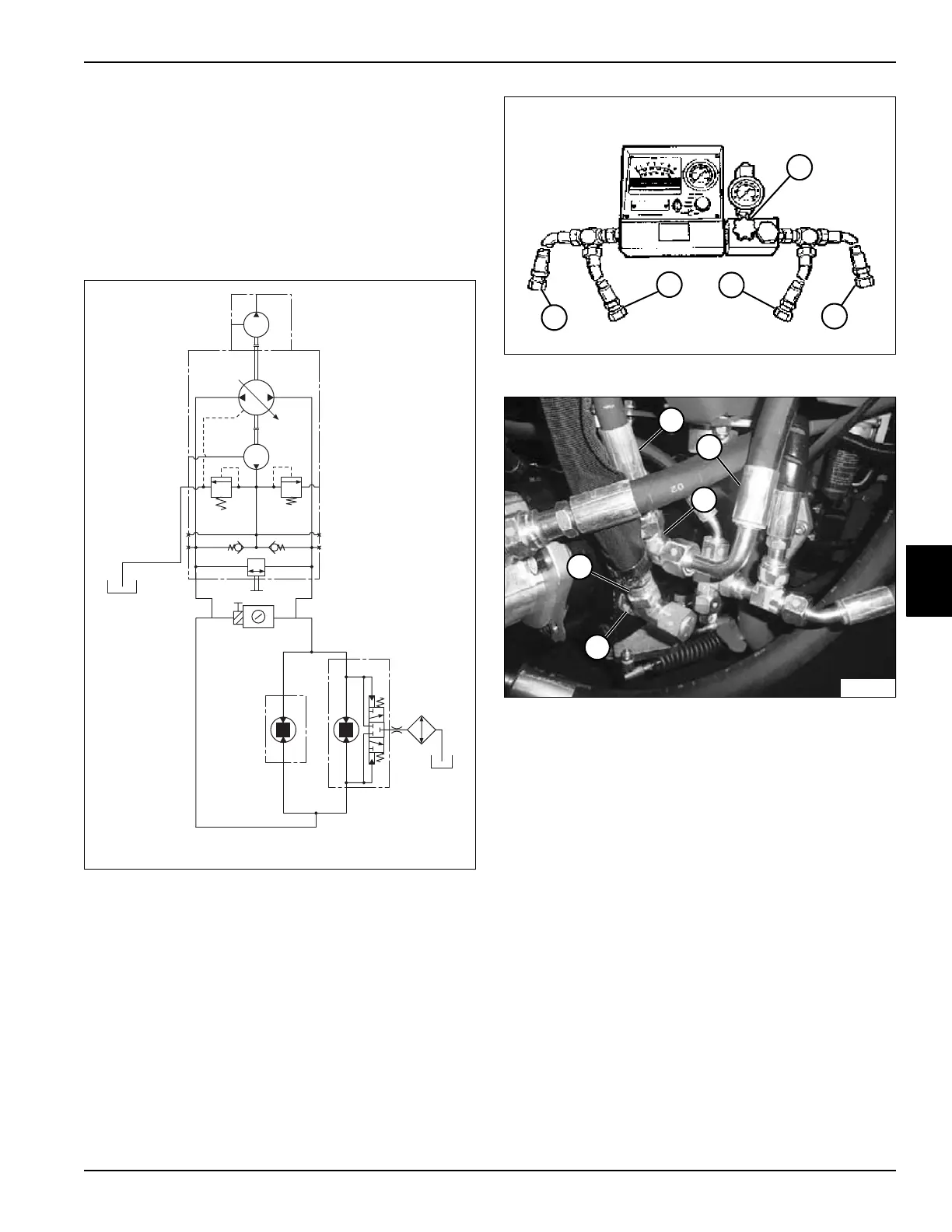

Figure 5-28: Traction System Test—2WD Models
—Front Wheel Motors Restrained
14. Proceed to step 24.
Figure 5-29
Figure 5-30: Traction Pump Fittings—3WD Models
15. Disconnect hoses (15 and 16) from tee fitting (17).
16. Remove tee fitting (17) from port “A” of traction
pump.
17. Reconnect hoses (15 and 16) to tee fitting (17).
18. Connect test hose (14) of flow meter inlet to tee fitting
(17).
19. Connect test hose (13) of flow meter inlet to port “A”
of traction pump.
20. Disconnect hose (19) from tee fitting (18).
21. Connect test hose (12) of flow meter outlet to tee
fitting (18).
22. Connect test hose (11) of flow meter outlet to hose
(19).
23. Open flow meter valve (10) completely before
starting engine.
TN3965
13
TN1357
12
10
14
11
TN3936
15
17
16
18
19
To Next Page
