Textron JACOBSEN GP400 - Page 207

HYDRAULICS
4252490-Rev A 6-15
6

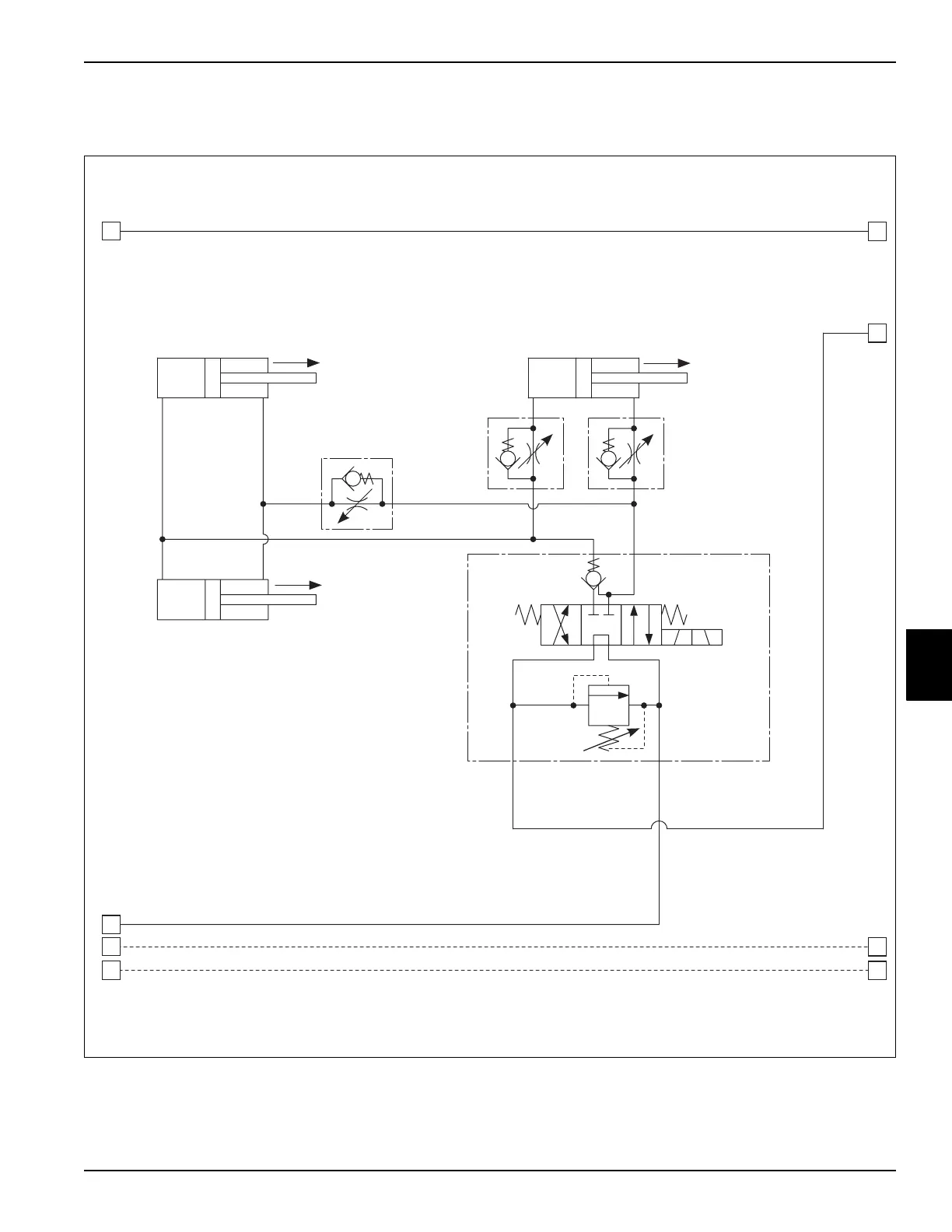

Hydraulic Schematic (2WD),
Continued
Figure 6-11
Lift Valve
TN3029
Right Lift Cylinder
Relief Valve
1250 psi
2
9
6
7
2
10
6
7
Left Lift Cylinder
Center Lift Cylinder
PT
Solenoid Valve
Check
Valve
AB
BA
BB
AA
Lift
Lift Lift
Top
Sequence
Soft Drop
Valve
Bottom Sequence
Delay Valve
