HYDRAULICS
4252490-Rev A 6-55
6

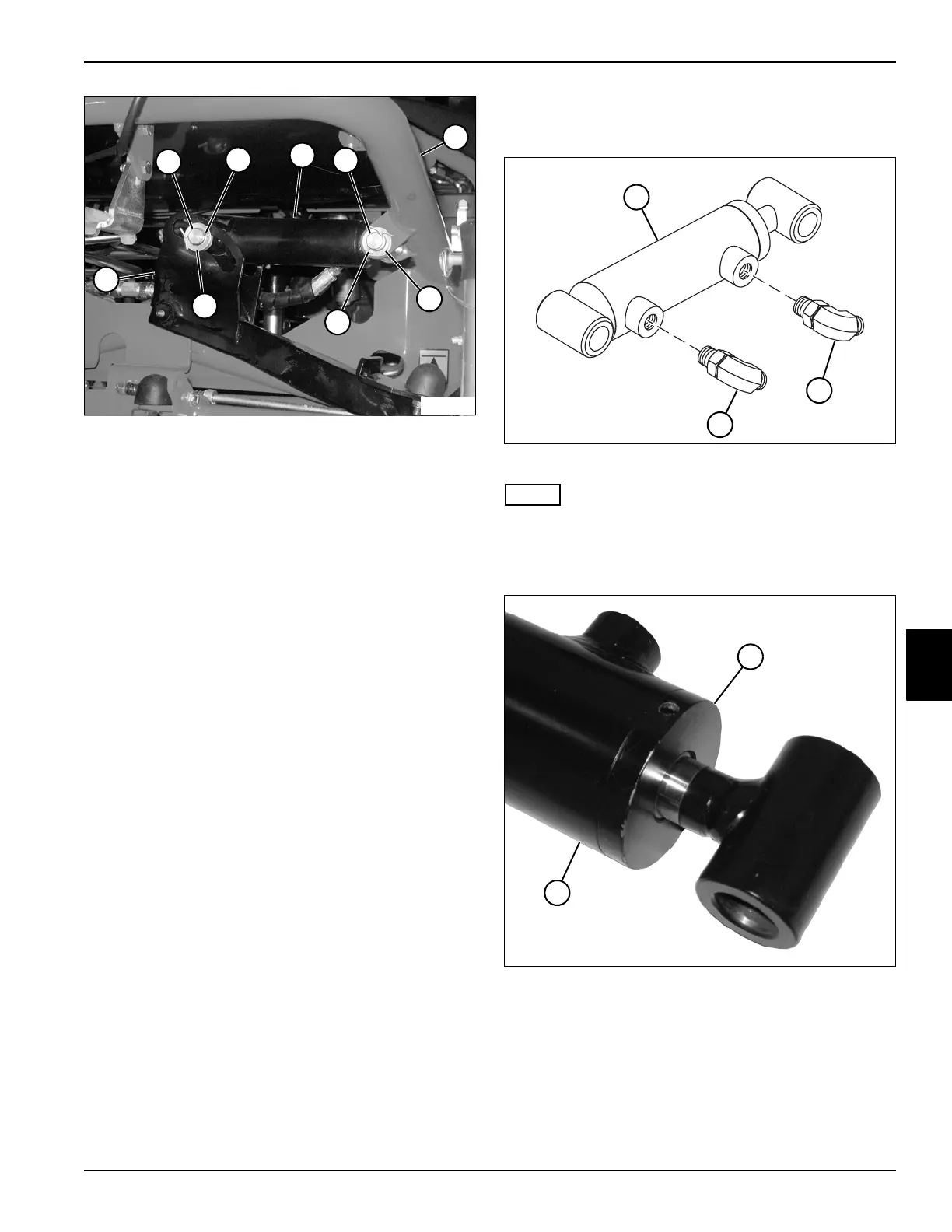

Figure 6-66
5. Remove cotter pin (6) and washer (12), and remove
pin (5) from lift cylinder (7) and lift arm (13).
6. Remove cotter pin (11) and washer (10), and remove
lift cylinder (7) from frame (9).
Installation Notes
• Install lift cylinder by reversing the order of removal.
• Make sure new O-rings are in place before installing
hoses on fittings.
• Replace hydraulic oil charge filter. (See “Hydraulic
Oil Charge Filter Assembly” on page 6-59.)
• Refill hydraulic tank. (Refer to “Parts and
Maintenance Manual” for correct oil specifications.)
• Start engine. Check hydraulic system for leaks.
Repair as necessary.
• Check hydraulic oil level and add if necessary.
Disassembly, Inspection, and Assembly
See Figures 6-67 through 6-70.
Figure 6-67
NOTE
Record the location and orientation of fittings before
removing to ensure correct installation.
1. Remove fittings (2 and 3) from lift cylinder (1).
Figure 6-68
2. Use a spanner wrench to remove rod guide (4) from
barrel (5).
TN3795
10
7
11
8
6
5
12
13
9
TN3816
1
3
2
TN3828
4
5
