7-16 4252490-Rev A
STEERING
7

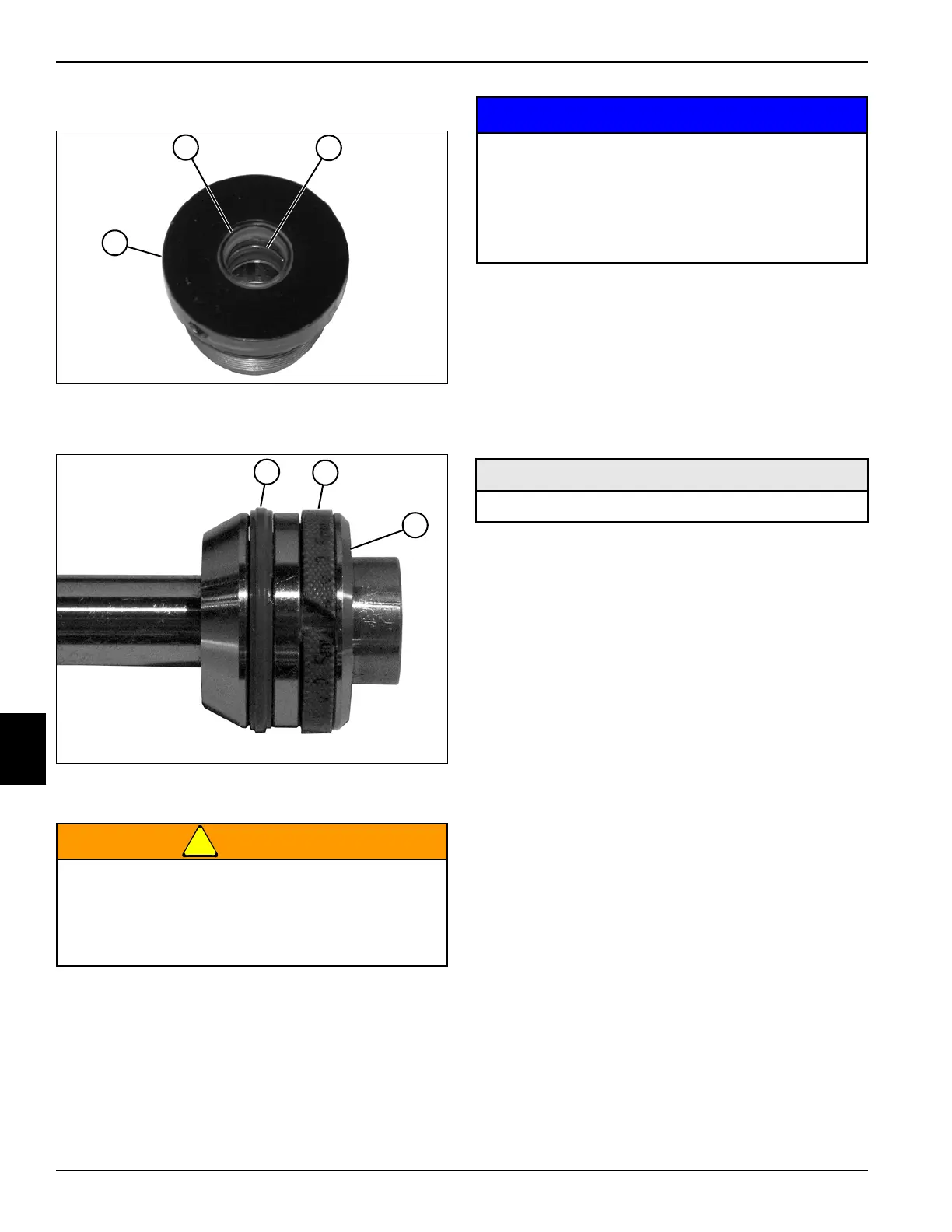

6. Remove O-ring (9) from rod guide (6).
Figure 7-36
7. Remove seals (10 and 11) from rod guide (6).
Figure 7-37
8. Remove seals (12 and 13) from piston (14).
!
WARNING
NOTICE
9. Clean all parts using clean solvent, and dry using
compressed air.
10. Inspect all parts for excessive wear, cracks, broken
parts, and damaged threads.
11. Inspect the barrel for dents, score lines, or grooves
inside.
Assembly Notes
• Assemble steering cylinder by reversing the order of
disassembly.
• Lubricate all parts with clean hydraulic oil before
assembly.
• Install new seals and O-rings.
Use appropriate eye protection when using
compressed air for cleaning or drying purposes.
Compressed air can cause serious personal
injury. Use safety reduction valves to reduce the
air pressure to a safe level before use.
TN3823
10
11
6
TN3824
14
12
13
It is important that all components are absolutely
clean, as contamination can result in serious
damage and/or improper operation.
Never use shop towels or rags to dry parts after
cleaning, as lint may clog passages. Dry parts
using compressed air.
Required Materials
Seal Kit
